Can Carbonated Drinks · TYLG Series
Can Carbonated Drink Filling Machine
Model:TYLG
Automatic counter-pressure can filling and seaming machine for carbonated soft drinks in two-piece or three-piece cans, with standard output from 30 to 400 cans/min.
- Capacity Range
- 30–400 cans/min
- Suitable Products
- Carbonated Drink
- Can Size
- Ø39–160 × H39–160 mm; 250ml-500ml
- Functions Included
- Counter-Pressure Fill · Seam
- Main Material
- SUS304; SUS316L product-contact parts
- Closure
- Easy-Open Can End
Line Integration
Position in the Production Line
The current process is highlighted. Actual line configuration is customized to your product, container, output and site conditions.
-
Parallel preparation
The following stages operate in parallel.
- 01A Product Prep Mix · Chill · Carbonate
-
01B Depalletizing Unload · Separate · Feed
-
-
04 Warming Warm · Reduce Condensation
-
Reference flow only. Final process and equipment scope are customized to product, container, formula, capacity, and local requirements.
Installed after beverage preparation, carbonation and empty-can rinsing, the TYLG machine fills cans under counter pressure, places can ends, completes double seaming, and transfers sealed cans to warming, drying, coding, labeling and packing.
- Can Infeed: Single-lane can conveyor from depalletizer and can rinsing system
- Can Discharge: Seamed-can conveyor to warmer, dryer and downstream packaging
- Product & CO₂ Supply: Stable chilled carbonated beverage at the confirmed pressure, temperature and flow
- Can End Supply: Approved easy-open ends matched to the can body and seaming tooling
- Line Controls: Speed synchronization, safety interlocks and upstream/downstream signal exchange
FILLING TECHNOLOGY
Filling Technology for Your Product
Product characteristics, container format, target output and process requirements determine the final configuration. We recommend the appropriate technology for each project.
Two-Piece Aluminum Can
Standard package for lightweight aluminum beverage cans with matched guides and double-seaming tooling.
Configure Aluminum CansThree-Piece Tinplate Can
Change parts and seaming setup for approved three-piece tinplate can dimensions.
Configure Tinplate CansHigh-CO₂ / Low-Temperature Package
Optimized product pressure, valve timing and venting for colder beverages or higher carbonation.
Configure for High CarbonationTechnical Note. Rated output follows the supplied reference configuration. Actual capacity depends on beverage temperature, carbonation level, can dimensions, lid, utilities and complete-line efficiency. Final values are confirmed after can, end and recipe review.
Model Comparison
TYLG Can Filling and Seaming Machine Models
TYLG configurations for canned carbonated drinks. Select the model against the approved beverage, carbonation level, can body, easy-open end and required output.
| Model | Rated Output | Weight / Dimensions | Can Size (Ø × H) | Installed Power | Filling / Seaming Heads |
|---|---|---|---|---|---|
| TYLG150 | 30–170 cans/min | 3,100 kg · 2700 × 1400 × 1900 mm | Ø52.5–99 × H39–160 mm | 5.5 kW | 12 / 4 |
| TYLG250 | 30–250 cans/min | 3,800 kg · 3050 × 1750 × 1900 mm | Ø39–160 × H39–160 mm | 5.5 kW | 18 / 4 |
| TYLG350 | Up to 400 cans/min | 5,500 kg · 3800 × 1900 × 1900 mm | Ø39–160 × H39–160 mm | 7.5 kW | 32 / 6 |
Note. Output follows the supplied reference table. The TYLG350 source value is presented as up to 400 cans/min. Final speed, tooling and utilities are confirmed with the actual beverage, can body and lid.
Equipment Overview

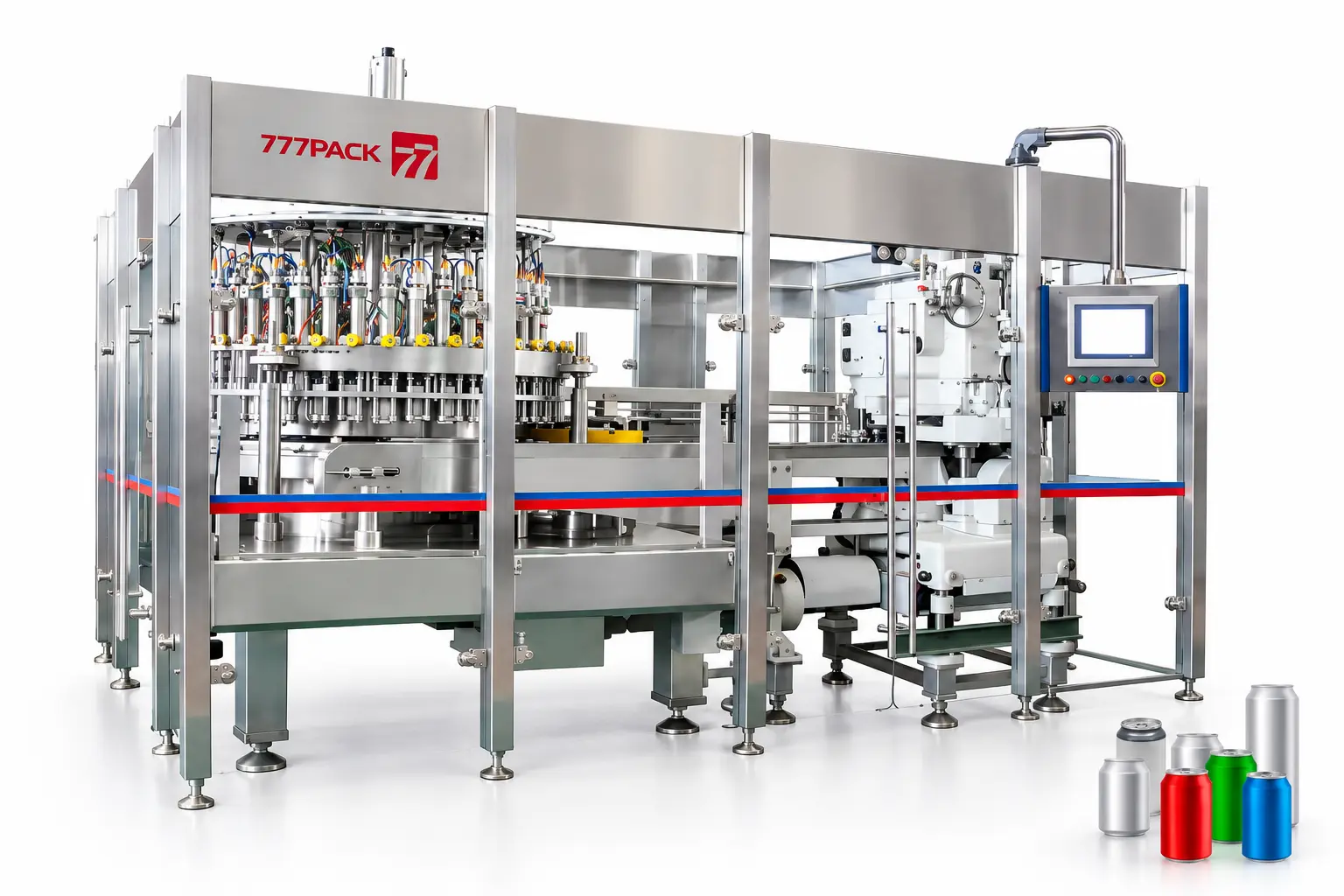

The TYLG Series Can Carbonated Drink Filling Machine combines counter-pressure filling and automatic seaming in one enclosed rotary system. Pressure-controlled filling limits foaming and CO₂ loss, while coordinated lid placement and double seaming protect seal integrity.
Designed for carbonated soft drinks, sparkling water, energy drinks and beer, the series offers three configurations from 30 to 400 cans/min. It supports two-piece aluminum and three-piece tinplate cans and can be integrated with can depalletizing and rinsing, beverage preparation and carbonation, can warming and drying, coding and packing systems.
Final filling pressure, valve timing, seaming tooling and utilities are confirmed against the beverage, CO₂ volume, can body, lid and required output.
Engineering Highlights
Practical design details that affect operation, changeover, hygiene and maintenance.
Integrated Fill & Seam
Fill · SeamCounter-pressure filling, lid placement and double seaming operate as one coordinated system.
CO₂ Retention & Foam Control
Cold & Stable FillingPressure-balanced filling and controlled venting limit product breakout and carbonation loss.
Reliable Double Seaming
Two- & Three-Piece CansMatched chucks and rollers support consistent seams for approved can bodies and ends.
Scalable TYLG Series
30–400 cans/minThree standard configurations cover different output targets with one operating concept.
Working Principle

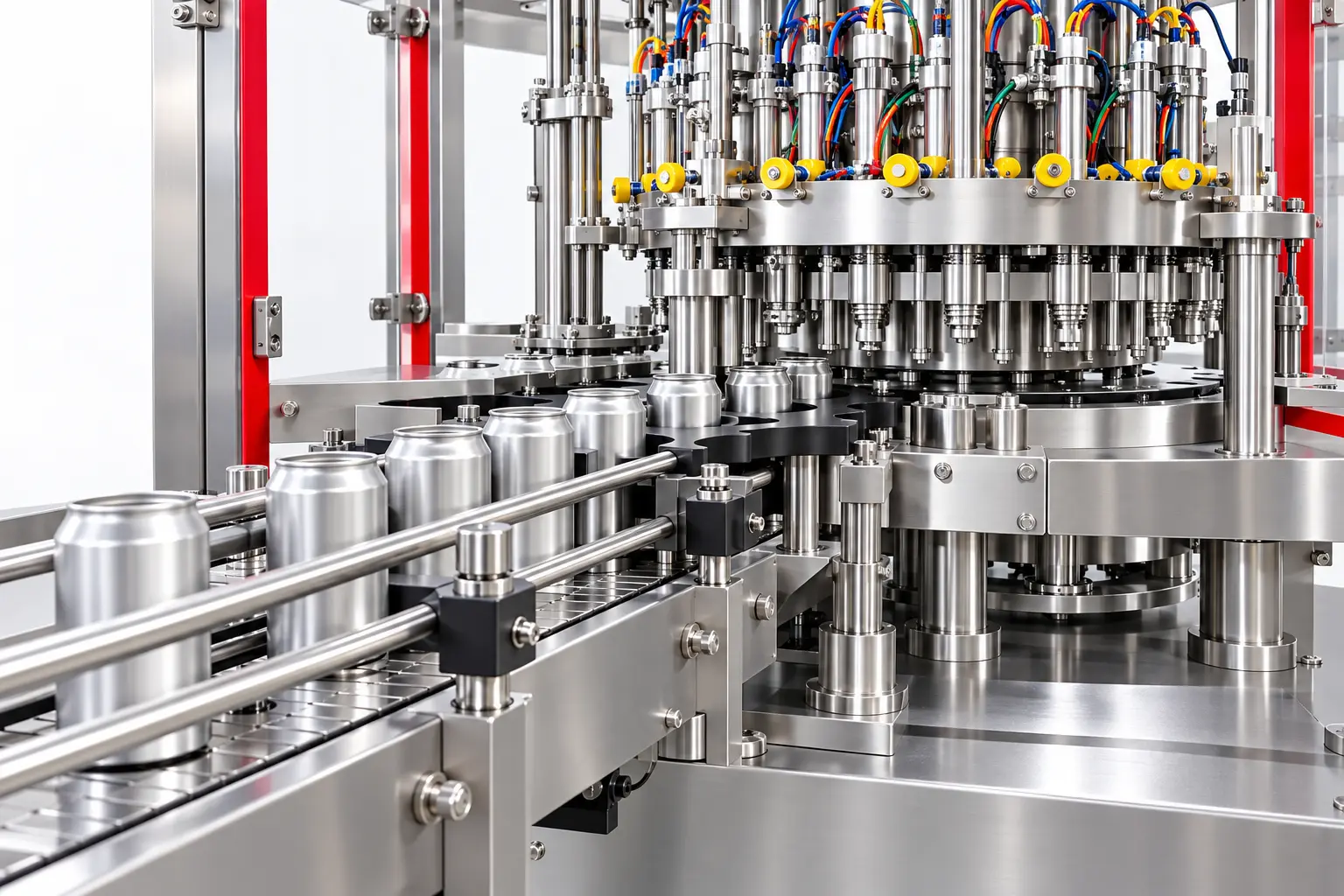

- Empty cans arrive from the depalletizer and can rinsing system through a controlled conveyor.
- Each can is centered and pressurized to match the product tank before filling.
- Chilled carbonated beverage enters through counter-pressure valves with controlled venting to limit foam and CO₂ loss.
- Easy-open ends are fed, positioned and double-seamed with matched tooling.
- Sealed cans discharge to warming, drying, coding, labeling and secondary packing.
The Siemens PLC and HMI coordinate product pressure, filling, lid feeding, seaming and line-speed interlocks.
Core Specifications
| Nominal Output | 30–400 cans/min |
|---|---|
| Reference Container | Two-piece aluminum beverage can |
| Can Diameter | 39–160 mm |
| Can Height | 39–160 mm |
| Suitable Products | Carbonated soft drinks, sparkling water and beer |
| Filling Process | Counter-pressure / isobaric filling |
| Closure | Easy-open can end |
| Filling / Seaming Heads | 12 / 4 to 32 / 6 |
| Installed Power | 5.5–7.5 kW |
| Machine Weight | 3,100–5,500 kg |
| Machine Dimensions (L × W × H) | 2,700 × 1,400 × 1,900 to 3,800 × 1,900 × 1,900 mm |
Standard Configuration
- Integrated Rotary Fill-and-Seam System
Counter-pressure filling and automatic lid seaming are coordinated in one enclosed machine.

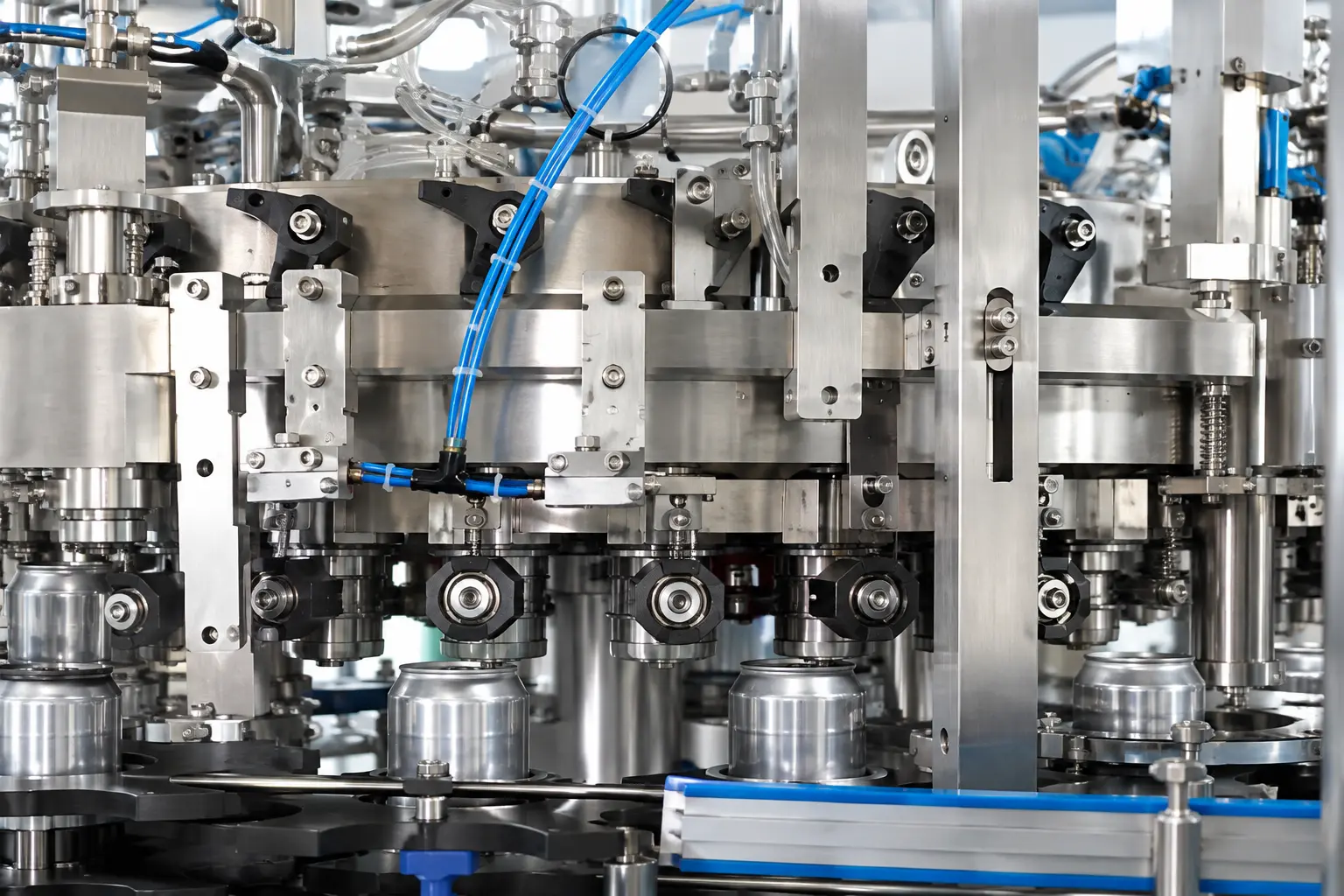

- Counter-Pressure Filling Valves
Pressure-balanced filling reduces foaming and carbonation loss.
- Automatic End Feeding & Placement
Sorts and positions approved easy-open ends before seaming.

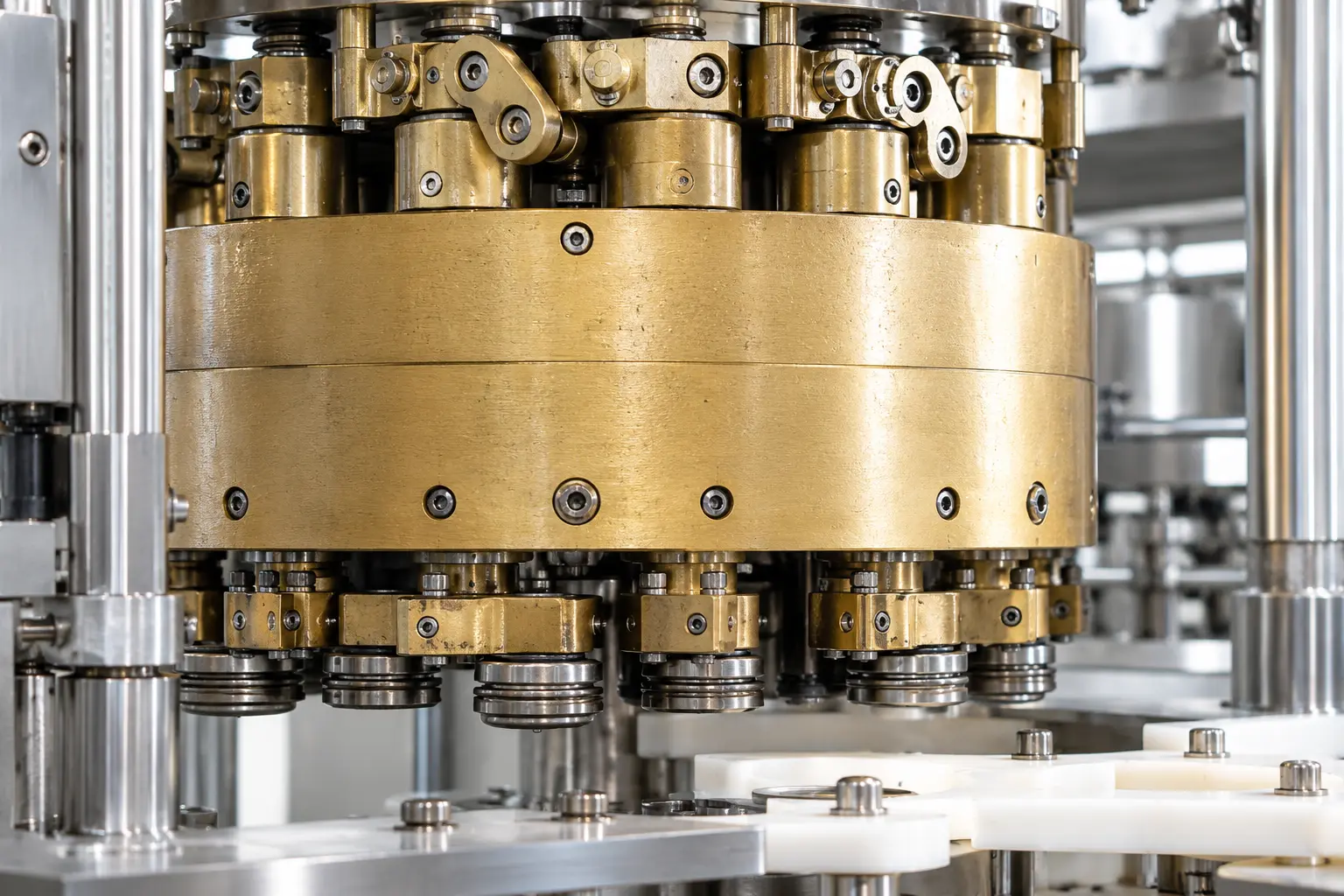

- Double-Seaming System
Matched seaming chucks and rollers form a controlled hermetic seam.
- Siemens PLC + HMI
Central control of pressure, filling, lid supply, seaming, alarms and recipes.
- Safety Enclosure & Interlocks
Stainless guarding, emergency stops, no-can/no-fill protection and door interlocks.
Optional Configuration
- Additional Can & End Change Parts
Format parts and seaming tooling for extra approved can bodies or easy-open ends.
- Three-Piece Tinplate Can Package
Transfer and seaming setup for approved three-piece tinplate cans.
- High-CO₂ / Low-Temperature Package
Pressure-control and valve configuration for colder beverages or higher carbonation.
- CIP Interface & Cleaning Cups
Connections and accessories for automated cleaning of the filling circuit.
Core equipment manufacturing, auxiliary-machine coordination and complete-line integration are managed as one system to reduce interface risks before delivery.
Project checks before packing and delivery.
On-site setup, testing and operator training.
Local coordination for service and spare parts.
Before You Decide
Frequently Asked Questions
Answers to common questions about selection, integration and project planning.
What products can this can carbonated drink filling machine handle?+
It is designed for carbonated soft drinks, sparkling water, energy drinks and beer in metal cans. Beverage temperature, CO₂ volume, can body and lid are reviewed before the final configuration is confirmed.
Why is counter-pressure filling used for carbonated drinks?+
The can is pressurized before filling so the pressure remains close to the product tank pressure. This limits foaming and CO₂ loss while supporting a stable fill level.
Can one machine handle different can sizes?+
Yes. The supplied series covers can diameters from 39 to 160 mm and heights from 39 to 160 mm, subject to the selected model. Change parts and seaming tooling are matched to approved can and end samples.
How is double-seam quality confirmed?+
The can body, easy-open end, chuck and seaming rollers must be matched. Seam width, thickness, overlap and tightness are checked during setup and factory testing with the approved packaging materials.
Can the machine connect with an existing canning line?+
Yes. Can infeed, product pressure and temperature, CO₂ supply, conveyors, warmer, dryer, operating speed and control signals are engineered after the existing line is reviewed.
