5-20L Automatic PET Bottle Blowing Machine
Model:LGD Series
Produce 5–20 L PET bottles from preforms with automatic feeding, heating and stretch blow molding. Match the mold, neck finish and output to your water bottling line.
Line integration
Position in the Production Line
Project-specific reference flow for 5–20 L PET water bottles. Bottle blowing is the current stage; this layout places labeling before filling.
Swipe or scroll to explore all stages →
Reference flow only. Final process and equipment scope depend on the product, container, output and project requirements. Each stage links to its equipment or equipment category.
Equipment Overview

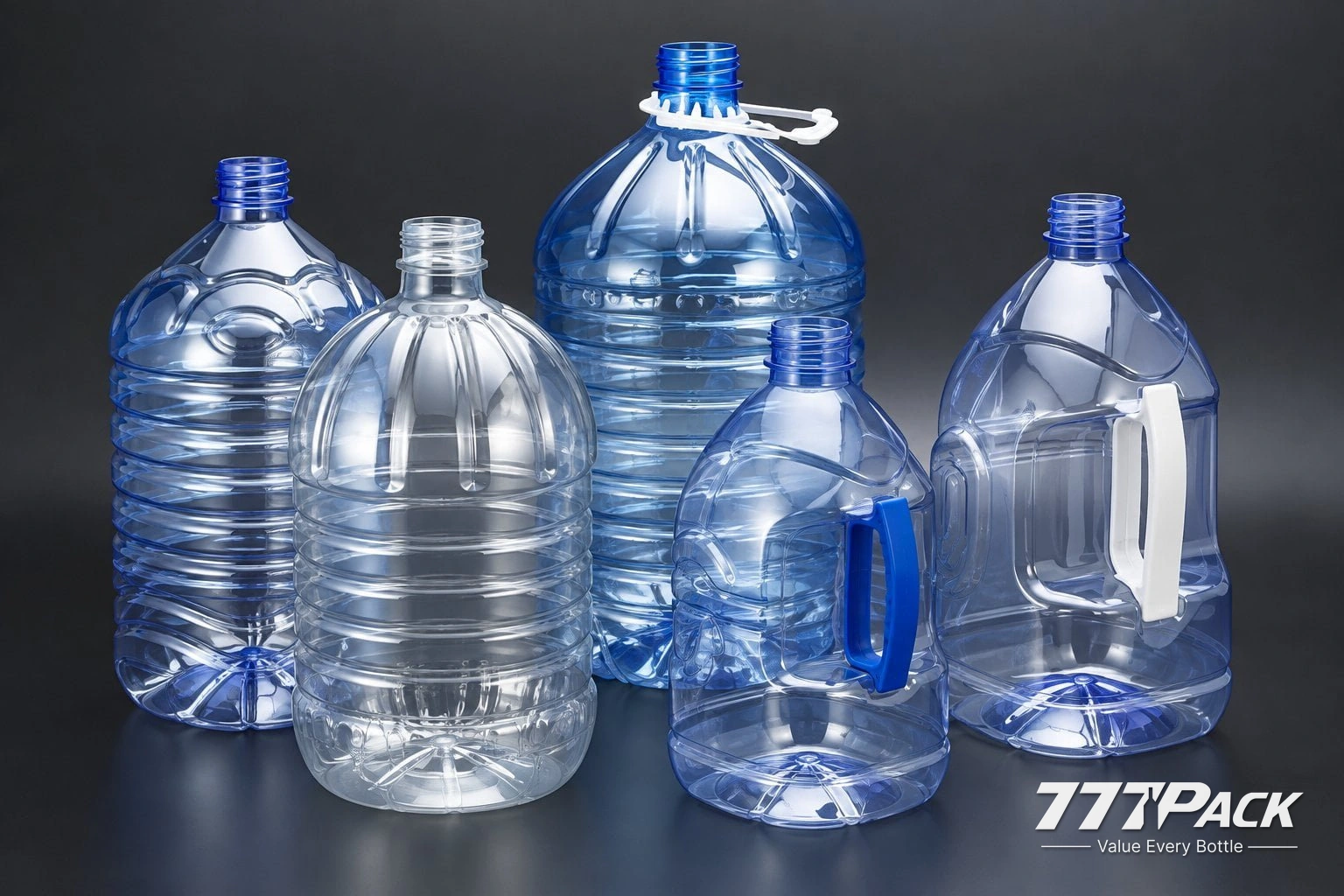

The LGD series produces large PET water bottles from preforms. Five models cover maximum container volumes of 10, 15 and 20 L, including 15 L water bottles and 18.9 L PET containers.
Confirm preform weight, neck finish, bottle dimensions and required output before selecting the mold and machine. The supplied specification lists theoretical output; production trials establish practical output.
Machine Details

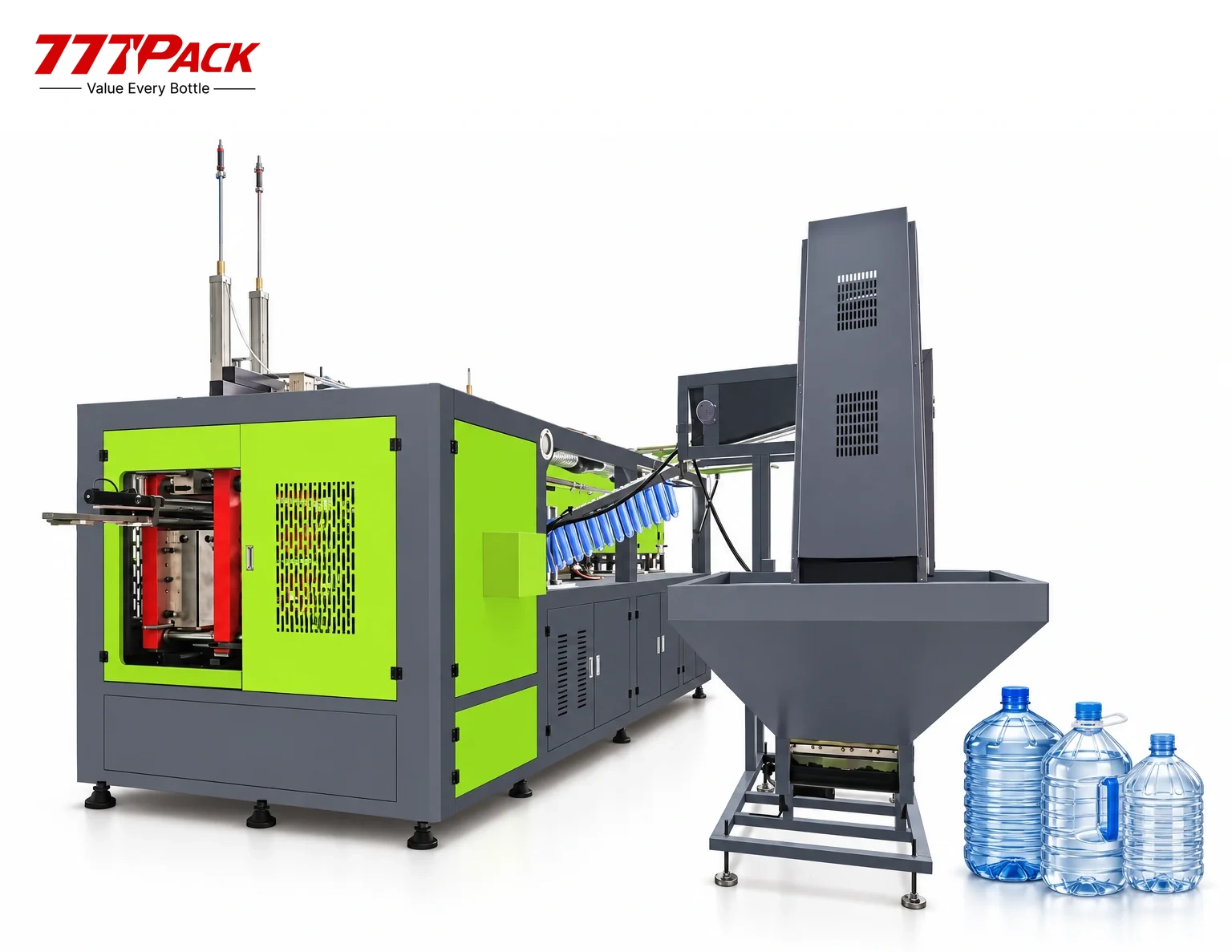

5-20L Automatic PET Bottle Blowing Machine
5-20L Automatic PET Bottle Blowing Machine
Core Specifications
| Model order | LGD-1-10L / LGD-2-10L / LGD-1-15L / LGD-2-15L / LGD-1-20L |
|---|---|
| Maximum neck diameter | 45 / 45 / 55 / 55 / 80 mm |
| Maximum bottle diameter | 220 / 220 / 260 / 260 / 300 mm |
| Maximum bottle height | 450 / 450 / 500 / 500 / 550 mm |
| Mold thickness | 300 / 300 / 320 / 320 / 360 mm |
| Mold stroke | 260 / 300 / 300 / 300 / 320 mm |
| Stretching stroke | — / 240 / — / 280 / — mm |
| Main machine power | 30 / 40 / 43 / 55 / 43 kW |
| Stated actual power consumption | 20 / 30 / 30 / 38 / 30 kW |
| Working pressure | 0.8 for all models MPa |
| Blowing pressure | ≤3.5 for all models MPa |
| Main machine dimensions (L × W × H) | 4200×2100×2300 / 4200×2100×2300 / 3800×2100×2300 / 5300×2200×2300 / 3800×2100×2300 mm |
| Preform elevator dimensions | 1960×1460×2550 for all models mm |
| Main machine weight | 4000 / 4500 / 4500 / 5500 / 4800 kg |
Model Comparison
Available Bottle Blowing Machine Models
Five models for PET containers up to 10, 15 or 20 L. Select by bottle size, neck finish and required output.
| Model | Machine Type | Cavities | Maximum Output | Bottle Volume | Suitable Application |
|---|---|---|---|---|---|
| LGD-1-10L | Automatic PET stretch blowing | 1 | 600 BPH | Up to 10 L | Water |
| LGD-2-10L | Automatic PET stretch blowing | 2 | 1,200 BPH | Up to 10 L | Water |
| LGD-1-15L | Automatic PET stretch blowing | 1 | 500 BPH | Up to 15 L | Water |
| LGD-2-15L | Automatic PET stretch blowing | 2 | 900 BPH | Up to 15 L | Water |
| LGD-1-20L | Automatic PET stretch blowing | 1 | 90–300 BPH | Up to 20 L | Water |
Note. Theoretical output from the supplied datasheet. Actual output depends on preform, bottle design, mold, heating settings and utility conditions.
Working Principle
Preforms are fed into the heating section, heated for molding, transferred into the mold, stretched and blown with high-pressure air. Mold cooling sets the bottle shape before discharge.
Line Integration
Line Integration
Equipment role and interfaces for this reference application.
Forms empty 5–20 L PET bottles from preforms. In the selected water-line layout, bottles proceed to labeling before filling.
Interfaces are confirmed against the approved upstream and downstream equipment.
