Automatic Rotary OPP Hot Melt Glue Labeling Machine
Model:CY-XR Series
Automatic rotary wrap-around labeling for PET, PP and PE round bottles using OPP, pearl-film or paper-plastic composite roll labels. Three models cover 20,000–38,000 BPH.
Line integration
Position in the Production Line
The current stage is highlighted. This example shows how the equipment connects within the selected line.
- Parallel preparation01AWater TreatmentFilter · Purify · Disinfect01BBottle BlowingPreform to Bottle
- 02FillingRinse · Fill · Cap
- 03DryingRemove Surface Moisture
- 04CodingDate · Batch · Traceability
- 05LabelingSleeve · Hot Melt · Self-AdhesiveCURRENT
- 06PackingFilm · Carton · Tray
- 07PalletizingStack Finished Packs
Swipe or scroll to explore all stages →
Reference flow only. Final process and equipment scope depend on the product, container, output and project requirements. Each stage links to its equipment or equipment category.
Equipment Overview

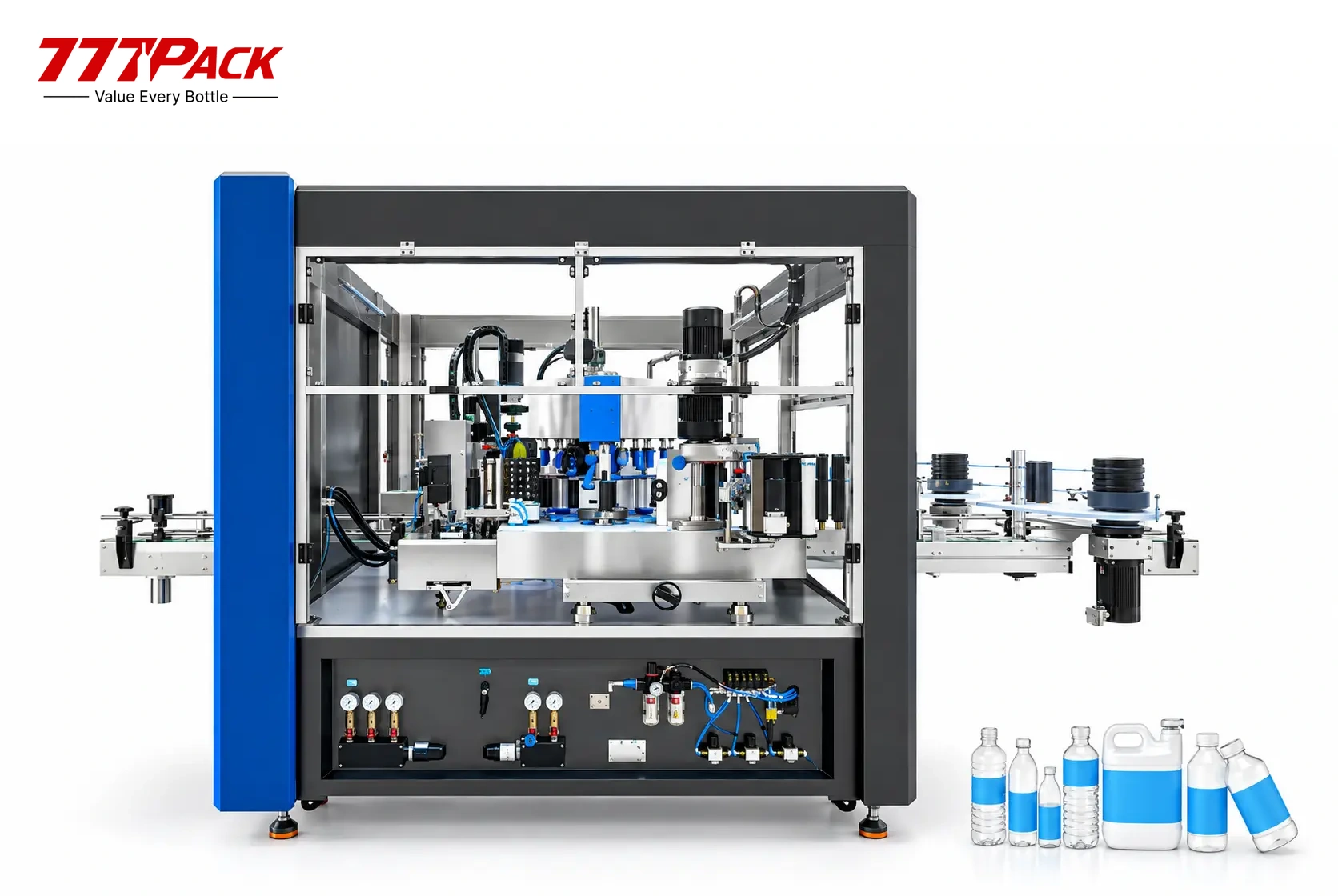

The CY-XR Series Automatic Rotary OPP Hot Melt Glue Labeling Machine applies wrap-around roll-fed labels to PET, PP and PE round bottles. It handles OPP film, pearl film and paper-plastic composite labels for beverage, water, food and household-product lines.
Continuous rotary transfer, servo control and hot-melt application at the label edges support stable output from 20,000 to 38,000 bottles per hour. Select the model by required speed, bottle dimensions, label specification and available line space.
Machine Details

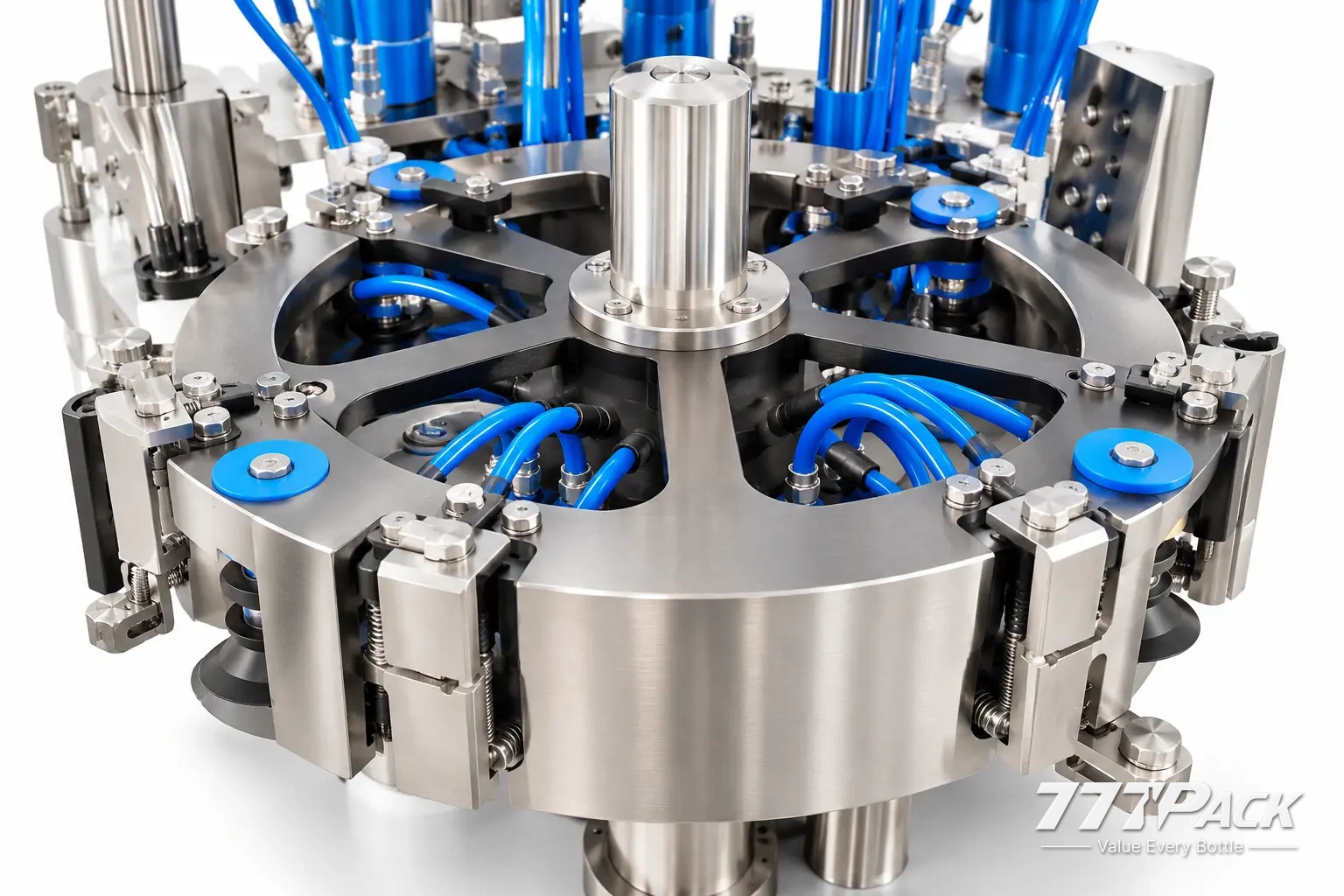

Rotary labeling station for an automatic OPP hot melt glue labeling machine

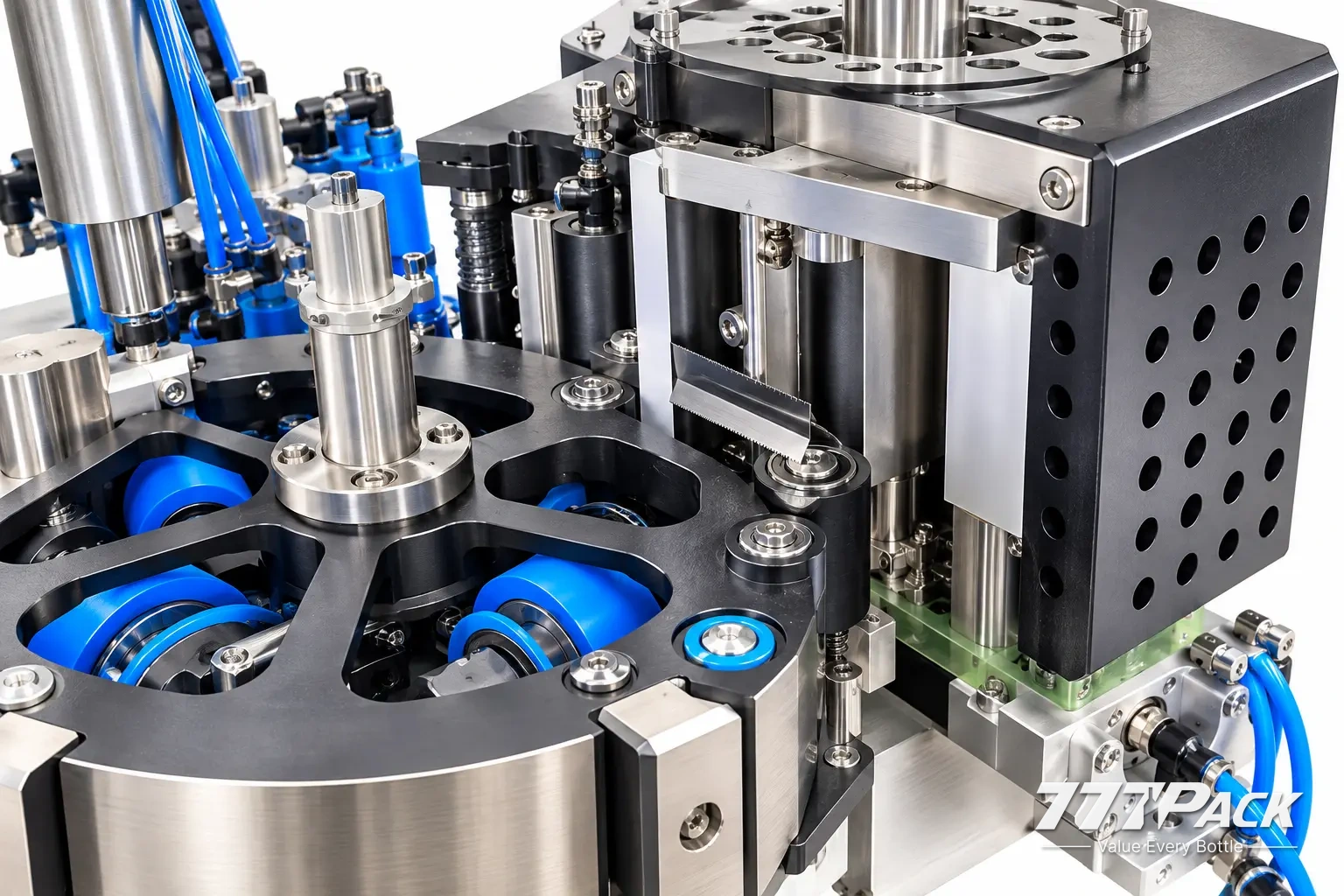

Precision ceramic glue drum and label cutting mechanism for OPP labeling

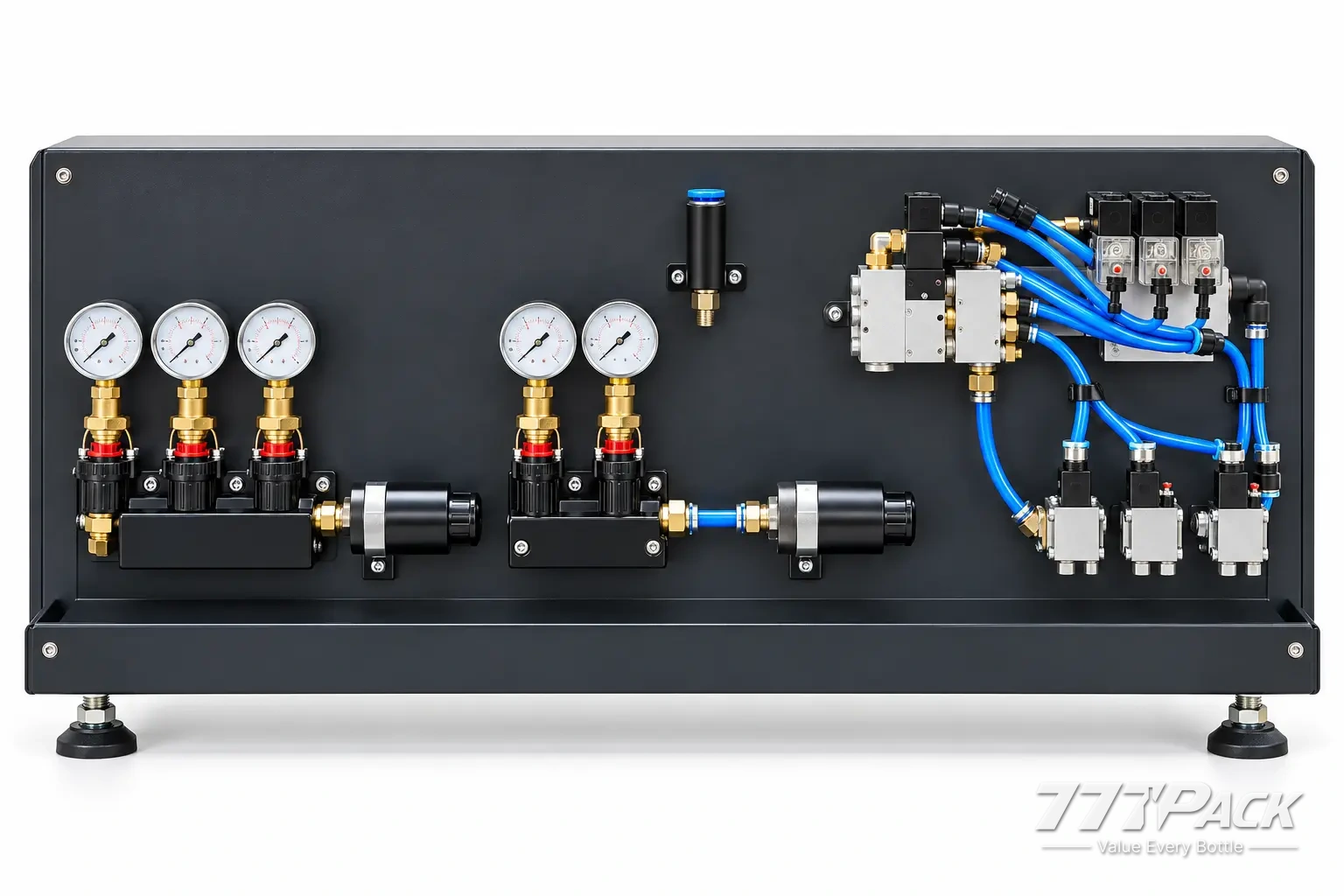

Pneumatic control system for an automatic rotary OPP hot melt glue labeling machine
Core Specifications
| Labeling Accuracy | ±1 mm |
|---|---|
| Label Width | 15–150 mm |
| Bottle Diameter | 35–95 mm |
| Bottle Height | 130–310 mm |
| Roll Core Diameter | 3 standard · 6 optional in |
| Maximum Roll Outer Diameter | Ø500 mm |
| Gluing Temperature | 120–160 °C |
| Electrical Supply | 3-phase 380 V / 50 Hz |
| Operating Air Pressure | 0.6–0.8 MPa |
Model Comparison
CY-XR Automatic Rotary OPP Labeling Machine Models
Three high-speed configurations for round bottles. Select the model by required output, bottle dimensions and available line space.
| Model | Rated Output | Bottle Diameter / Height | Rated Power | Reference Air Pressure | Overall Dimensions |
|---|---|---|---|---|---|
| CY-XR12 | 20,000 BPH | Ø35–95 mm · H130–310 mm | 14 kW | 0.6 MPa | 2170 × 1750 × 2150 mm |
| CY-XR18 | 30,000 BPH | Ø35–95 mm · H130–310 mm | 19 kW | 0.6 MPa | 2520 × 2000 × 2150 mm |
| CY-XR24 | 38,000 BPH | Ø35–95 mm · H130–310 mm | 19 kW | 0.6–0.8 MPa | 2720 × 2000 × 2150 mm |
Note. Rated output depends on bottle stability, label material, adhesive, upstream/downstream synchronization and operating conditions. Final compressed-air requirement is confirmed for the selected model.
Working Principle
Engineering Highlights
Practical design details that affect operation, changeover, hygiene and maintenance.
Continuous Rotary Labeling
Up to 38,000 BPHContinuous bottle transfer supports stable high-speed wrap-around labeling.
Two-Edge Hot-Melt Application
15–150 mm labelsGlue is applied at the label leading and trailing edges to reduce adhesive use.
Servo-Synchronized Control
±1 mm accuracySiemens PLC and Schneider servo control coordinate label cutting and bottle transfer.
Quick-Change Bottle Handling
Ø35–95 mm bottlesTool-free star-wheel and guide changes reduce format-change work.
Line Integration
Line Integration
Equipment role and interfaces for this reference application.
Applies wrap-around roll-fed labels after bottle drying and coding, before secondary packing. Labels are cut, hot-melt glued at the leading and trailing edges, and applied during continuous rotary bottle transfer.
- Bottle Infeed: Stable single-lane conveyor flow with bottle spacing matched to the selected star wheel.
- Label Supply: Approved OPP, pearl-film or paper-plastic composite roll matched to bottle and artwork.
- Line Controls: Speed synchronization and interlocks with upstream coding/drying and downstream packing.
Standard and Optional Configuration
- Rotary Bottle Transfer
Infeed screw, star wheels and bottle-pressure system for continuous bottle handling.
- Roll-Fed Label Module
Label unwinding, cutting, vacuum drum and two-edge hot-melt application.
- Servo & PLC Control
Siemens PLC with Schneider servo control as specified.
- Quick-Change Handling Parts
Tool-free star-wheel and guide change for approved bottle formats.
- 6-Inch Roll-Core Setup
Optional holder configuration for 6-inch label-roll cores.
- Additional Bottle Change Parts
Dedicated star wheels and guides for additional approved bottle formats.
Utilities and Installation
Electrical
CY-XR12: 14 kW; CY-XR18/24: 19 kW; 3-phase 380 V / 50 Hz reference.
Compressed Air
0.6–0.8 MPa, clean and dry; final requirement confirmed by model.
Hot-Melt Adhesive
Operating temperature 120–160°C; adhesive matched to label and bottle material.
Installation
Provide level floor, conveyor interfaces and maintenance clearance around the machine.
Before You Decide
Frequently Asked Questions
Answers to common questions about selection, integration and project planning.
What label materials can this OPP labeling machine use?
It supports roll-fed OPP film, pearl film and paper-plastic composite labels. Final material, thickness, print direction and adhesive are confirmed with approved samples.
What bottle sizes and outputs are available?
The CY-XR Series covers round bottles from 35–95 mm in diameter and 130–310 mm in height. Rated output ranges from 20,000 to 38,000 BPH across CY-XR12, CY-XR18 and CY-XR24.
Where is the machine installed in a PET bottling line?
It is installed at the labeling stage, normally after bottle drying and coding and before secondary packing. Conveyor speed and control signals are synchronized with the complete line.
