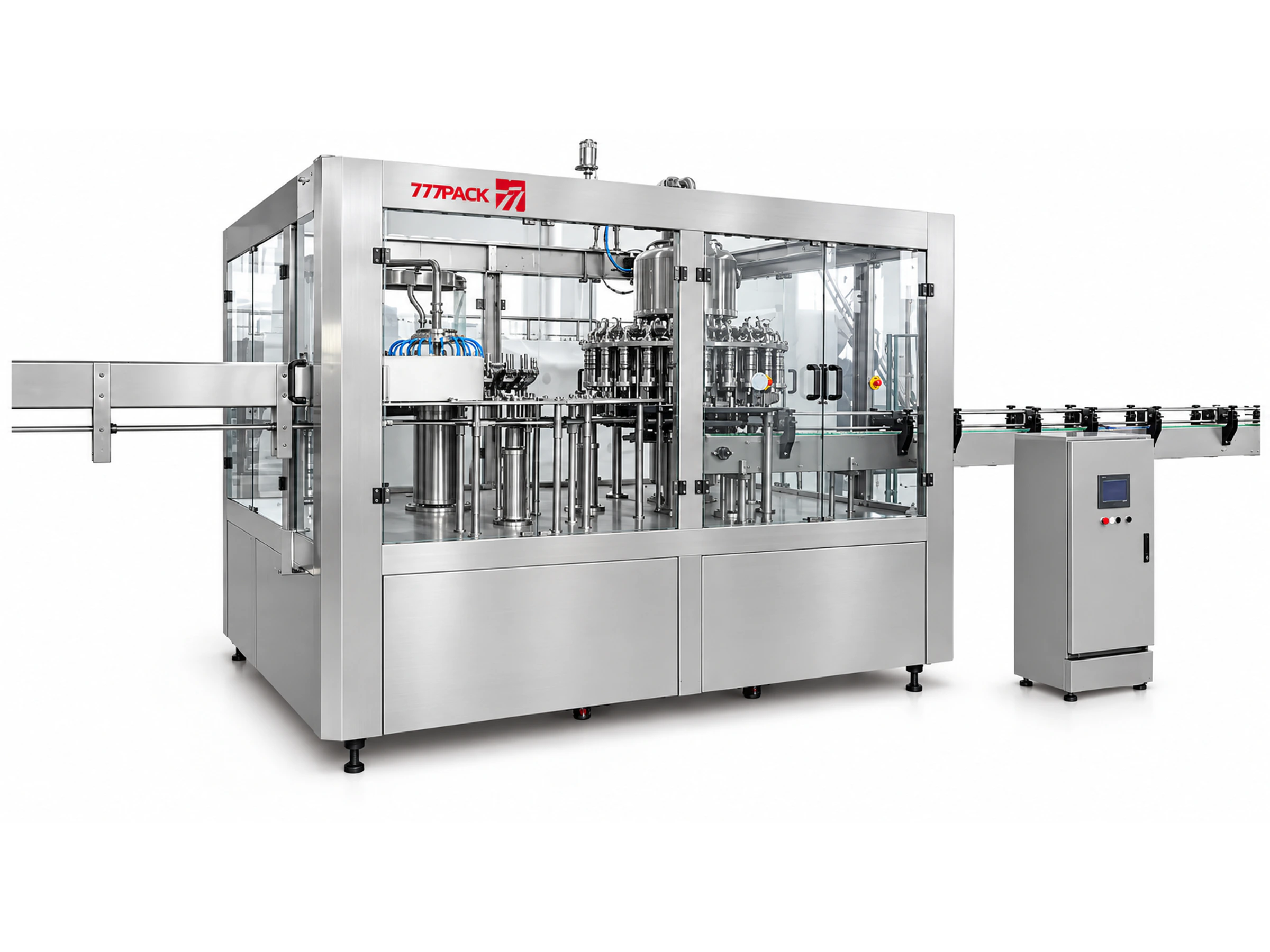

Complete RXGF PET bottle juice and tea hot filling machine
PET Juice & Tea Hot Filling · RXGF Series

PET Bottle Juice Filling Machine

Model:RXGF

Automatic 3-in-1 rinsing, hot filling and screw capping monoblock for juice, tea and other still beverages in PET bottles, with standard output from 3,500 to 28,000 BPH.

Capacity Range3500–28000 BPH
Suitable ProductsJuice
Bottle Range200–2000 mL
Functions IncludedRinse · Hot Fill · Cap
Main MaterialSUS304; SUS316L product-contact parts
ClosurePlastic Screw Cap

Line integration

Position in the Production Line

The current stage is highlighted for this product and container configuration.

Product: Juice & Tea · Hot FillContainer: PET Bottle

Swipe or scroll to explore all stages →

Reference flow only. Final process and equipment scope depend on the product, container, output and project requirements. Each stage links to its equipment or equipment category.

Equipment Overview

The RXGF Series PET Bottle Juice Filling Machine is a 3-in-1 juice bottling machine that integrates bottle rinsing, hot filling and screw capping in one enclosed rotary monoblock. Neck handling supports stable PET bottle transfer, while the sanitary product path is designed for heat-treated still beverages.

Designed for juice, tea and functional drinks, this hot filling machine offers eight standard configurations from 3,500 to 28,000 BPH. It can be integrated with beverage preparation systems, bottle blowing, cap treatment, bottle cooling and drying equipment, labeling and packing systems.

Milk-based beverages require separate confirmation of formula, sterilization process, filling temperature and shelf-life target before the machine configuration is selected.

Machine Details

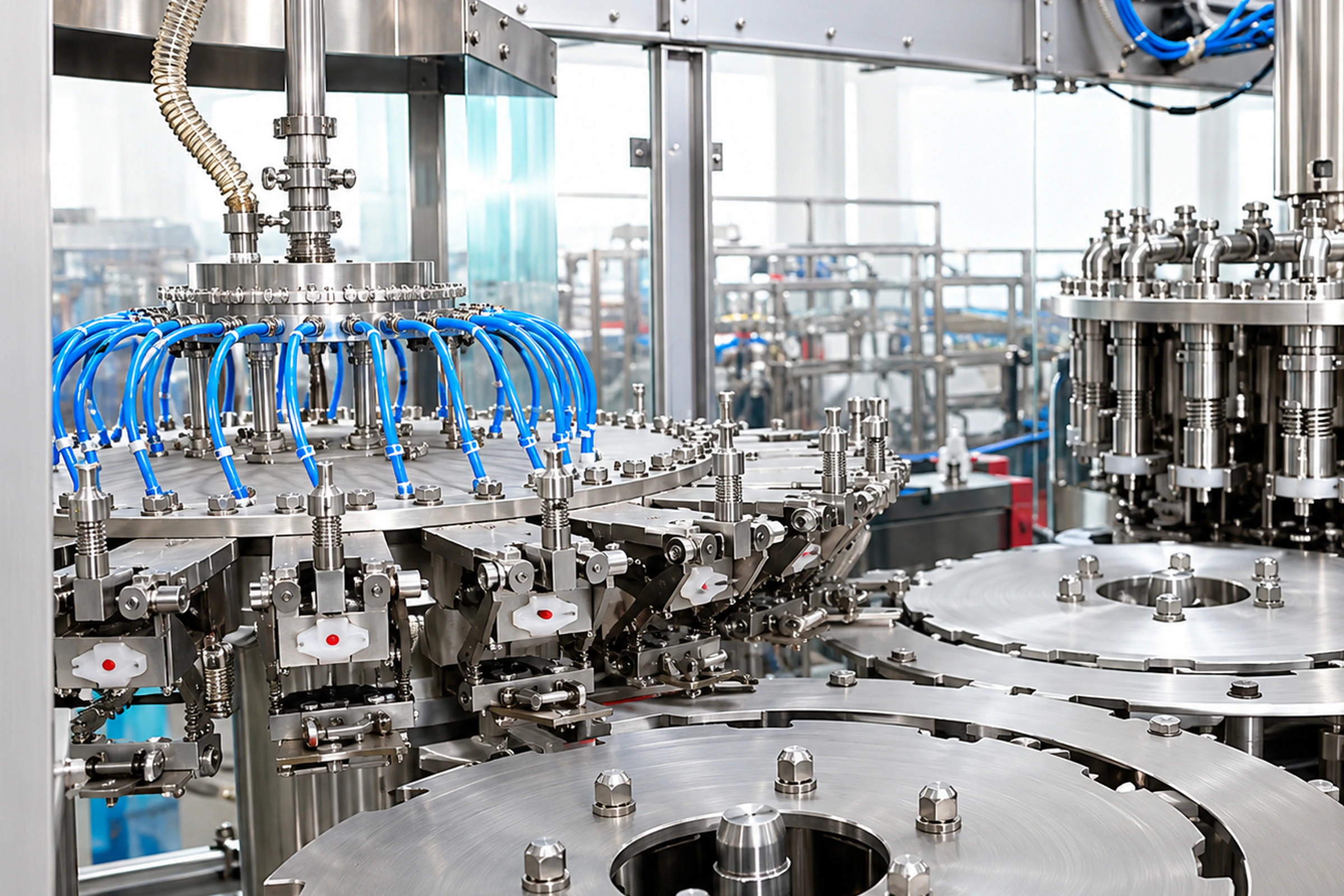

Rotary PET bottle rinsing section with neck-handling grippers

Rotary PET bottle rinsing section with neck-handling grippers

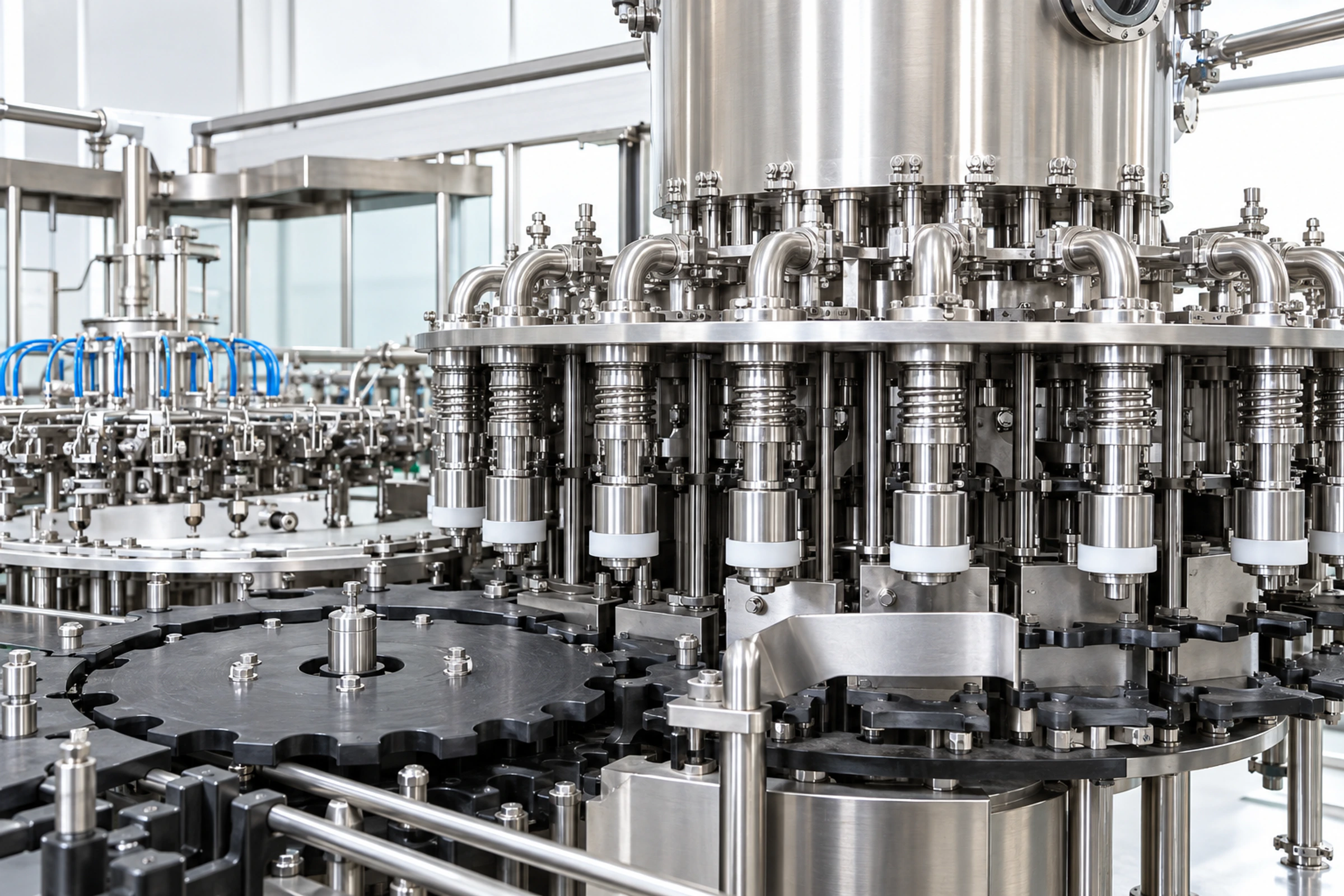

Rotary hot filling valve assembly for PET juice and tea bottles

Rotary hot filling valve assembly for PET juice and tea bottles

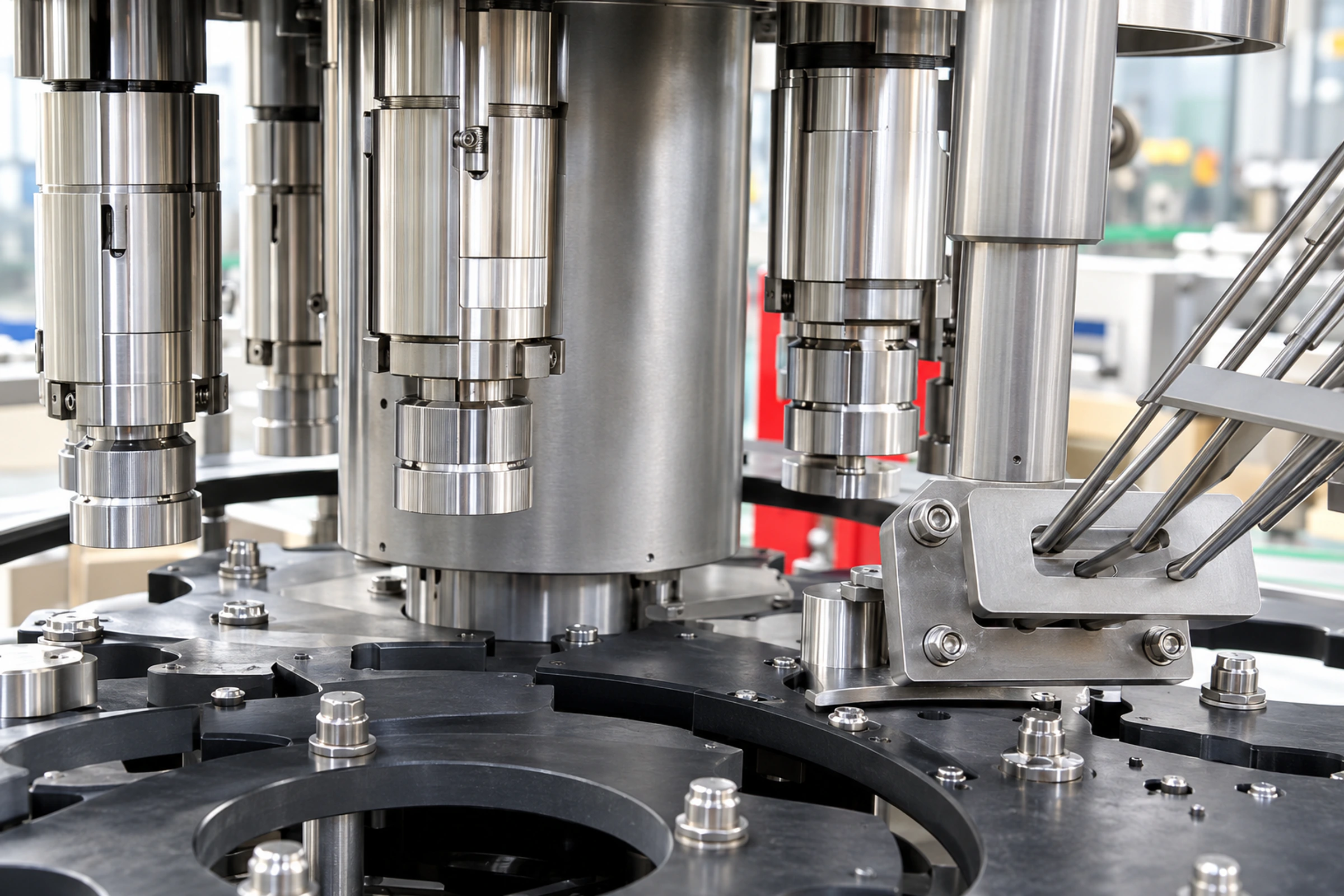

Rotary screw capping heads for PET juice bottles

Rotary screw capping heads for PET juice bottles

Key Component Brands

FILLING TECHNOLOGY

Filling Technology for Your Product

Product characteristics, container format, target output and process requirements determine the final configuration. We recommend the appropriate technology for each project.

Hot Gravity Filling

Standard sanitary solution for clear or low-pulp juice and tea filled at elevated temperature.

Best suited toJuice, tea and functional beverages
Key benefitControlled liquid level · Stable hot filling · Simple operation
Select Hot Fill

Pulp-Compatible Filling

Larger product passages and application-specific valves for beverages containing fine pulp or soft particles.

Best suited toLow-pulp juice and beverages with small inclusions
Key benefitReduced blockage risk · Gentle product handling · Customized valve path
Ask About Pulp Option

Electronic Flow Meter Filling

Recipe-based electronic dosing for wider product and volume flexibility.

Best suited toFrequent SKU or fill-volume changes
Key benefitRecipe control · Fast adjustment · Flexible formats
Compare Flow Meter Option

Core Specifications

Nominal Output3,500–28,000 BPH
Reference Container500 mL round PET bottle
Bottle Volume200–2,000 mL
Suitable ProductsJuice, tea, milk drinks and functional beverages
Filling ProcessHot filling
Typical Filling Temperature85–95 °C
ClosurePlastic screw cap
Rinse / Fill / Cap Heads14 / 12 / 5 to 72 / 72 / 18
Installed Power1.5–11 kW
Machine Dimensions (L × W × H)2,360 × 1,770 × 2,700 to 6,540 × 4,900 × 2,700 mm

Model Comparison

RXGF Juice Filling Machine Models

RXGF configurations for PET-bottled juice and tea. Select the model against the approved product, bottle, cap and required output.

RXGF Juice Filling Machine Models
ModelRated OutputFilling ProcessDimensions (L × W × H)Installed PowerRinse / Fill / Cap Heads
RXGF14/12/53,500 BPHHot Filling2360 × 1770 × 2700 mm1.5 kW14 / 12 / 5
RXGF16/16/55,000 BPHHot Filling2760 × 2060 × 2700 mm2.2 kW16 / 16 / 5
RXGF24/24/88,000 BPHHot Filling2800 × 2230 × 2700 mm3 kW24 / 24 / 8
RXGF32/32/812,000 BPHHot Filling4215 × 2960 × 2700 mm4 kW32 / 32 / 8
RXGF40/40/1015,000 BPHHot Filling4360 × 3300 × 2700 mm7.5 kW40 / 40 / 10
RXGF50/50/1218,000 BPHHot Filling5900 × 3300 × 2700 mm7.5 kW50 / 50 / 12
RXGF60/60/1521,000 BPHHot Filling6100 × 5215 × 2700 mm11 kW60 / 60 / 15
RXGF72/72/1828,000 BPHHot Filling6540 × 4900 × 2700 mm11 kW72 / 72 / 18

Note. Rated output follows the supplied reference table and should be confirmed with the actual beverage, filling temperature, bottle and cap. Final machine dimensions and utilities are subject to engineering review.

Working Principle

Empty PET bottles enter by neck-handling air conveyor and are transferred to the rinser.
Bottles are inverted and rinsed with hygienic water.
Prepared beverage is hot-filled through sanitary valves under controlled temperature and level.
Caps are sorted, fed and applied with controlled torque.
Sealed bottles discharge to cap sterilization and cooling before labeling and packing.

The Siemens PLC and HMI coordinate product supply, filling temperature, bottle transfer, capping and line-speed interlocks.

Engineering Highlights

Practical design details that affect operation, changeover, hygiene and maintenance.

3-in-1 Hot-Fill Monoblock

Rinse · Hot Fill · Cap

Rinsing, hot filling and screw capping are integrated in one enclosed rotary machine.

Heat-Managed Product Path

85–95°C Typical

Sanitary circulation supports controlled hot filling and cleaning of the product-contact circuit.

Stable Neck Handling

200–2,000 mL PET

PET bottles are transferred by the neck for stable movement and efficient format changeover.

Scalable RXGF Series

3,500–28,000 BPH

Eight standard configurations cover different production targets with one operating concept.

Line Integration

Line Integration

Equipment role and interfaces for this reference application.

Role in the line

Installed after beverage preparation and empty-bottle supply, the RXGF monoblock rinses PET bottles, hot-fills product, applies screw caps, and discharges sealed bottles to cap sterilization, bottle cooling, coding, labeling and packing.

Key interfaces
  • Bottle Infeed: Neck-handling air conveyor from bottle blower or empty-bottle supply
  • Bottle Discharge: Capped-bottle conveyor to cap sterilizer, cooling tunnel and downstream packaging
  • Product Supply: Stable prepared beverage at the confirmed filling temperature and flow, with sanitary CIP connections
  • Line Controls: Speed synchronization, safety interlocks and upstream/downstream signal exchange

Standard and Optional Configuration

Standard Configuration
  • 3-in-1 Rotary Monoblock

    Integrated bottle rinsing, hot filling and screw capping in one enclosed machine.

  • Neck-Handling Transfer

    Transfers PET bottles by the neck for stable movement and quick format changeover.

  • Hot-Fill Product Tank & Valves

    Sanitary heat-resistant product path for controlled hot filling and stable liquid level.

  • Cap Sorting & Capping System

    Automatic cap sorting, chute delivery and controlled screw-cap application.

  • Siemens PLC + HMI

    Central control of temperature signals, filling, speed synchronization, alarms and recipes.

  • Safety Enclosure & Interlocks

    Stainless guarding, emergency stops, no-bottle/no-fill protection and door interlocks.

Optional Configuration
  • Additional Bottle & Cap Change Parts

    Format parts for extra approved bottle profiles, volumes, neck finishes or caps.

  • CIP Interface & Dummy Bottles

    Connections and accessories for automated cleaning of the filling circuit.

  • Cap Sterilization & Bottle Cooling

    Downstream cap sterilizer and cooling tunnel matched to the hot-fill process.

  • Pulp-Compatible Filling Package

    Application-specific valves and product agitation for approved low-pulp beverages.

Utilities and Installation

Electrical Supply

Customized to the destination-country standard

Compressed Air

Clean, dry air; pressure and consumption confirmed by selected model

Product Supply

Prepared beverage at confirmed temperature, flow and pressure with sanitary CIP connections

Rinsing Water & Drainage

Hygienic treated water and floor drainage for rinsing and cleaning discharge

Installation Conditions

Level foundation with operating, maintenance and line-transfer clearance

Before You Decide

Frequently Asked Questions

Answers to common questions about selection, integration and project planning.

What products can this PET bottle juice filling machine handle?

It is designed for still juice, tea and functional beverages in PET bottles. Milk-based beverages require separate confirmation of the recipe, sterilization process, filling temperature and shelf-life target before the valve, tank and hygiene design are finalized.

How is the rated production capacity calculated?

The listed 3,500–28,000 BPH output follows the supplied model table and a reference PET bottle. Actual speed varies with bottle volume, product viscosity, pulp content, filling temperature, cap and complete-line efficiency.

Can one machine handle different PET bottle sizes?

Yes. The standard page range is 200–2,000 mL. Suitable change parts can be supplied for approved bottle profiles, volumes, neck finishes and caps.

What filling temperature is required?

The filling temperature depends on the recipe and microbiological process. Hot-fill projects commonly operate around 85–95°C, subject to product validation and the heat resistance of the bottle and closure.

Can the filler connect with an existing juice bottling line?

Yes. The infeed height, beverage supply, CIP, cap treatment, bottle cooling, conveyors, operating speed and control signals are engineered after the existing upstream and downstream equipment is reviewed.
