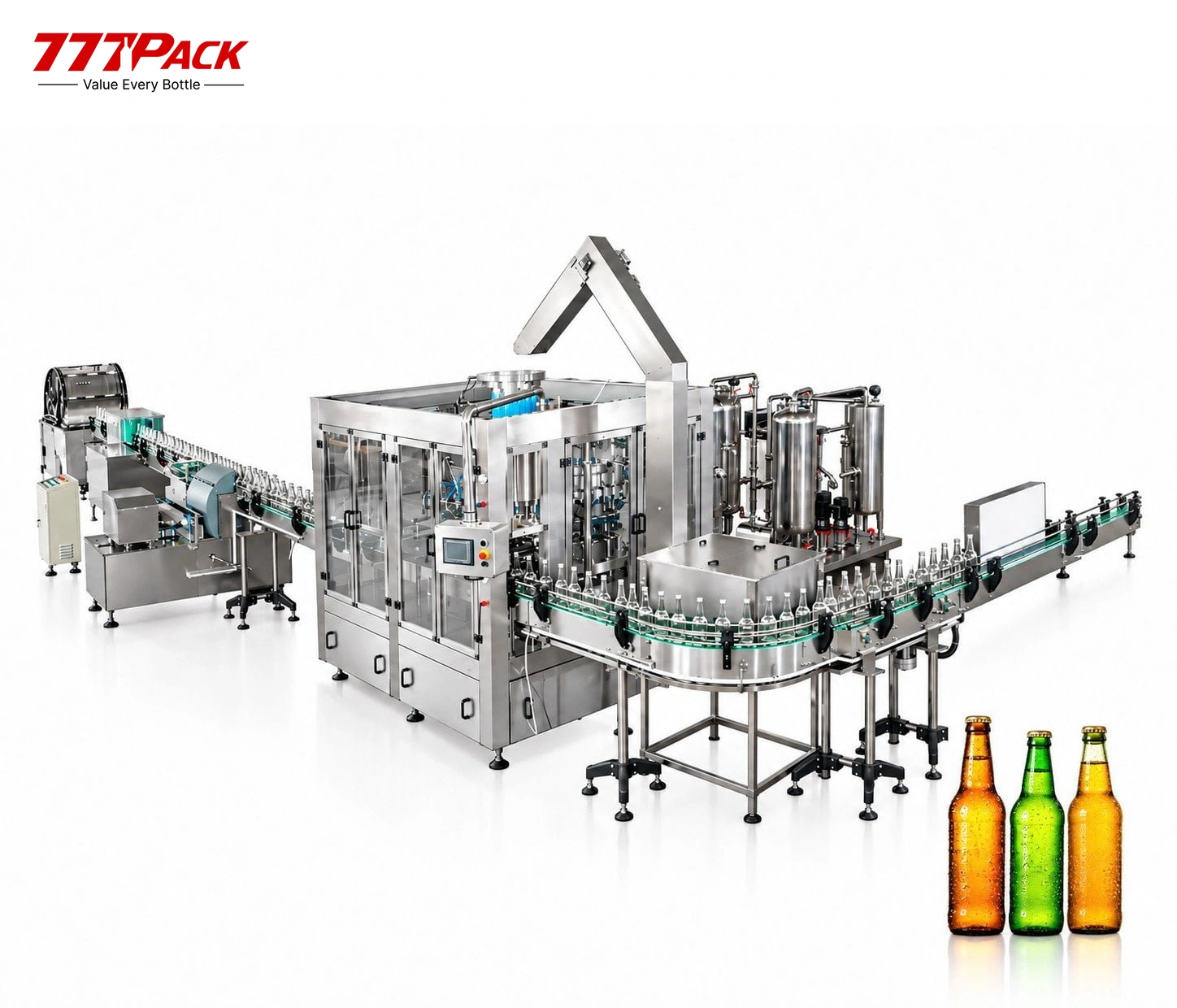

Glass Bottle Filling Machine for Beer & Carbonated Drinks
Model:BXGX
Rotary rinsing, filling and capping for beer and carbonated drinks in approved glass bottles. Eight BXGX models cover 1,000–21,000 bottles per hour.
Line integration
Position in the Production Line
Select the beverage application to explore its reference line. Filling is the highlighted stage in each example.
Equipment Overview
The BXGX series combines bottle rinsing, filling and capping for beer and carbonated drinks in one rotary glass-bottle system. The supplied series has eight models rated from 1,000 to 21,000 BPH.
Match the model to target output, bottle format and closure. Confirm beverage formulation, carbonation level, bottle and cap samples, and line interfaces before final specification.
Machine Details

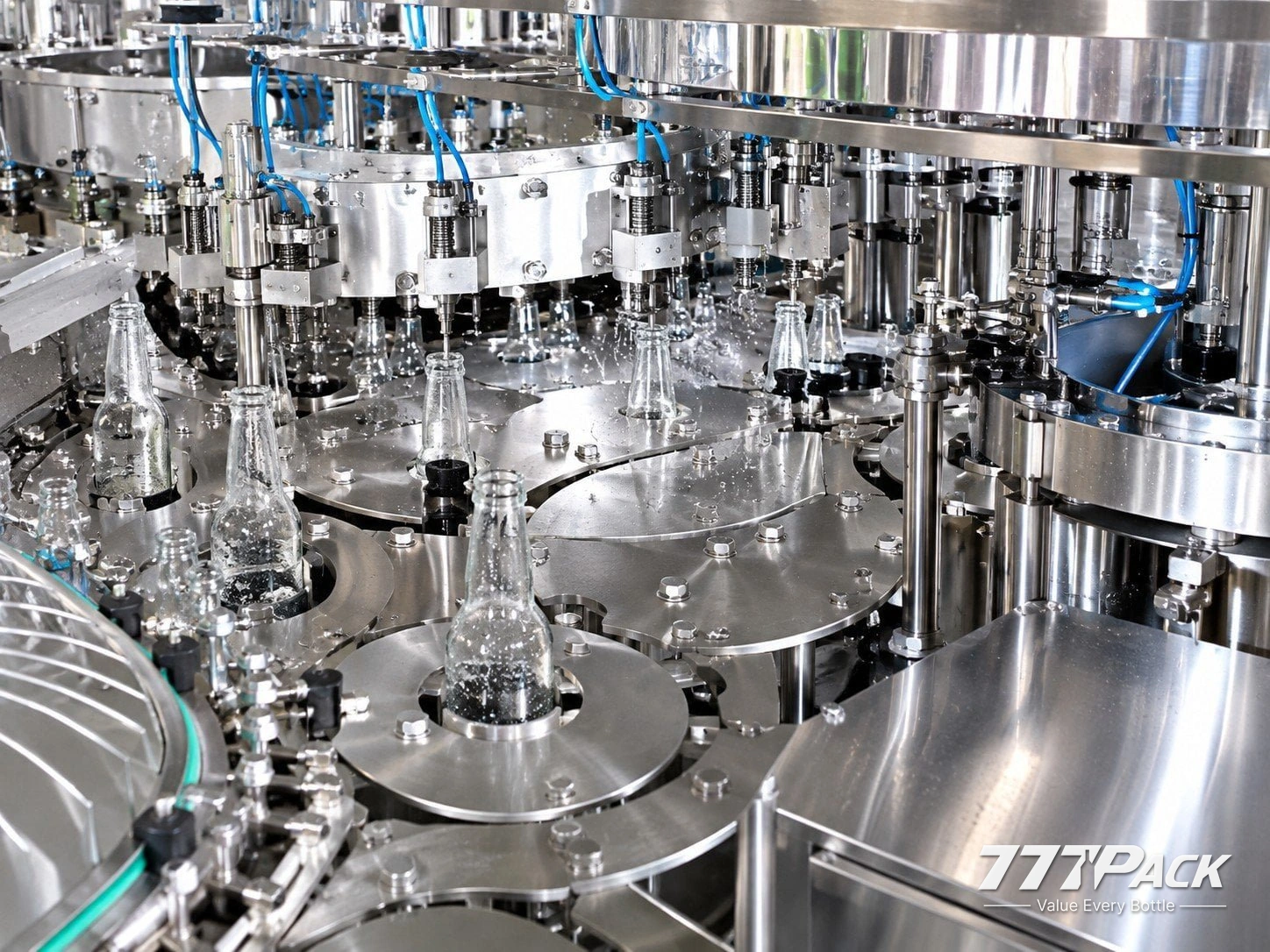

BXGX glass bottle filling machine for beer and carbonated drinks rotary rinsing section

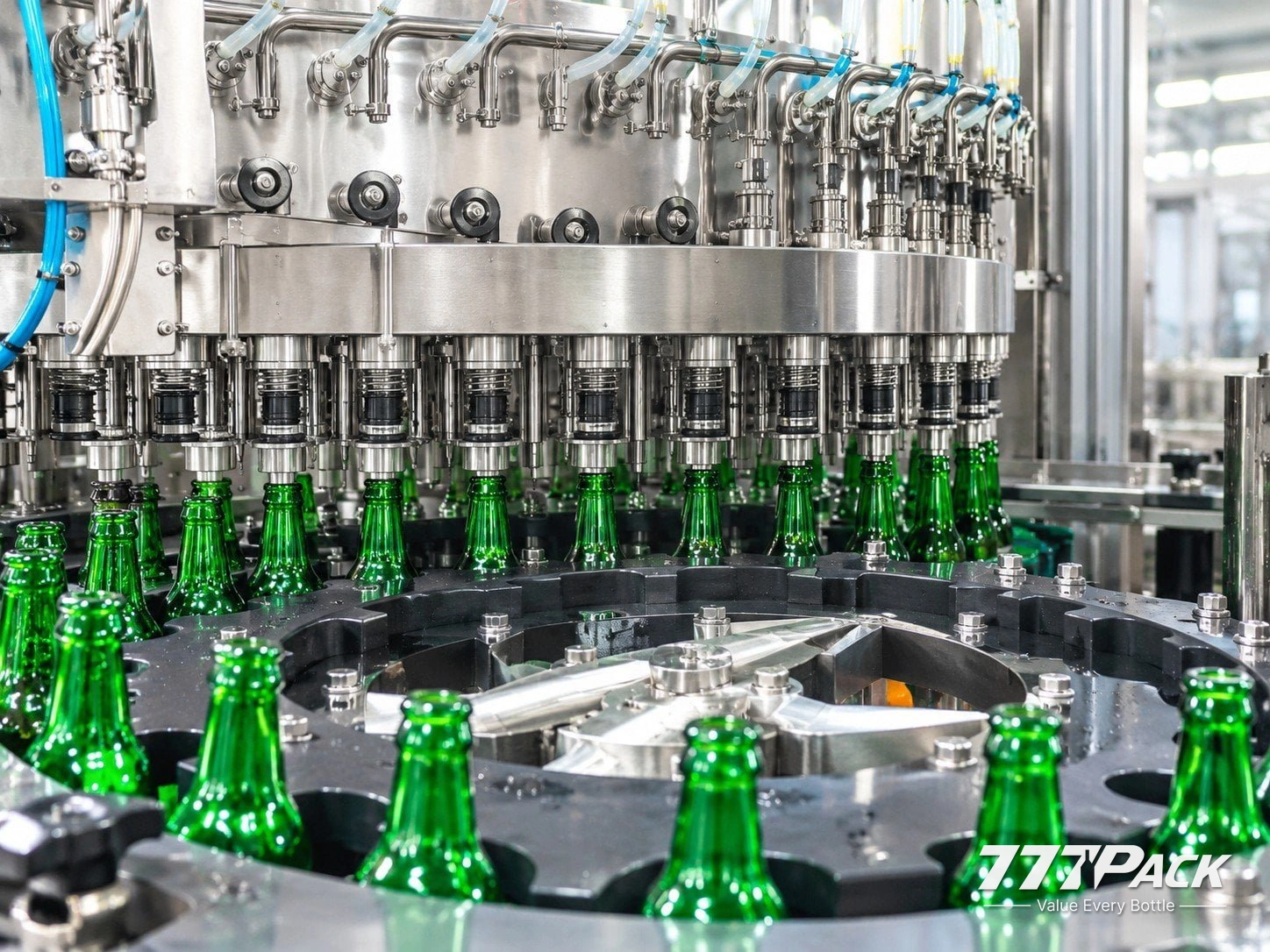

BXGX glass bottle filling machine for beer and carbonated drinks rotary filling section

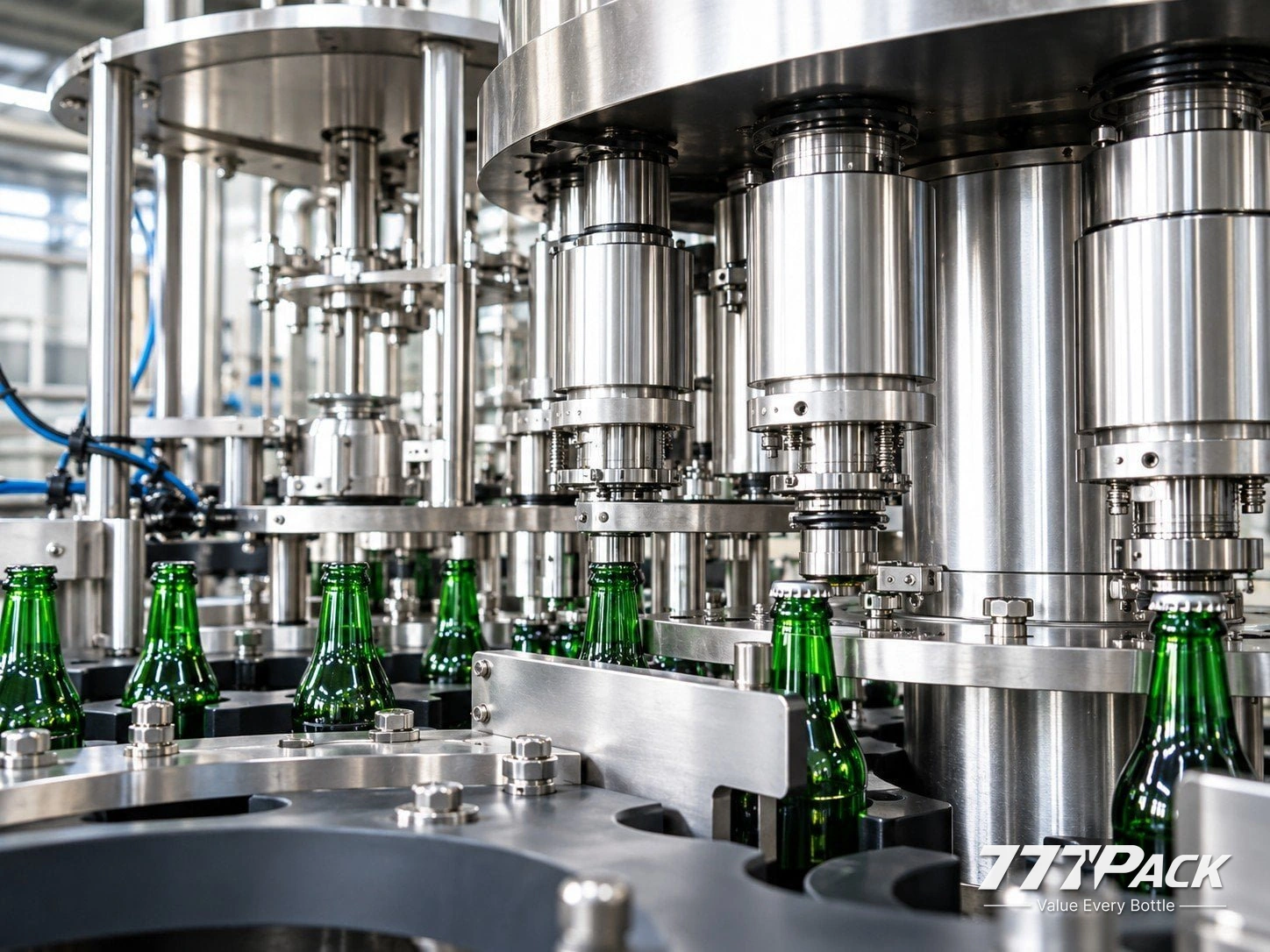

BXGX glass bottle filling machine for beer and carbonated drinks capping section
Key Component Brands
Core Specifications
| Capacity Coverage | 1000–21000 BPH |
|---|---|
| Suitable Products | Beer and carbonated drinks |
| Control | Siemens PLC + HMI |
| Main Material | Stainless steel; grade to confirm |
| Power Supply | Customized |
Model Comparison
BXGX Glass Bottle Filling Machine Models
Eight BXGX configurations for beer and carbonated drinks in approved glass bottles.
| Model | Rated Output | Weight (kg) | Dimensions (mm) | Power (kW) | Rinse / Fill / Cap Heads |
|---|---|---|---|---|---|
| BXGX8-8-3 | 1,000 BPH | 1900 kg | 2000 × 1500 × 2200 | 2.8 kW | 8 / 8 / 3 |
| BXGX12-12-5 | 1,500 BPH | 2400 kg | 2200 × 1650 × 2200 | 3.0 kW | 12 / 12 / 5 |
| BXGX18-18-6 | 5,000 BPH | 3600 kg | 2550 × 2000 × 2200 | 3.8 kW | 18 / 18 / 6 |
| BXGX24-24-8 | 8,000 BPH | 5200 kg | 3050 × 2250 × 2300 | 5.5 kW | 24 / 24 / 8 |
| BXGX32-32-10 | 10,000 BPH | 6000 kg | 3720 × 2800 × 2300 | 7.5 kW | 32 / 32 / 10 |
| BXGX40-40-12 | 12,000 BPH | 6700 kg | 4200 × 3300 × 2300 | 10.5 kW | 40 / 40 / 12 |
| BXGX50-50-12 | 18,000 BPH | 7400 kg | 5000 × 3800 × 2300 | 12.5 kW | 50 / 50 / 12 |
| BXGX60-60-15 | 21,000 BPH | 8100 kg | 6000 × 4200 × 2300 | 14.5 kW | 60 / 60 / 15 |
Note. Values follow the supplied BXGX specification table. Final output depends on approved bottle, cap and beverage conditions.
Working Principle
Line Integration
Line Integration
Equipment role and interfaces for this reference application.
After the required product preparation and empty-glass-bottle feeding, the BXGX machine rinses bottles, fills beer or carbonated drinks and applies the approved closure. Sealed bottles proceed to the agreed post-fill treatment, drying, coding, labeling and packing. Select the Beer or Carbonated Drinks example above; the final treatment and line scope follow the product specification.
- Bottle Infeed: Approved glass bottles and neck finish; matched conveyor guides.
- Beer or Carbonated Beverage: Conditioned product supply at the confirmed carbonation, temperature and line flow.
- Caps: Approved bottle-neck and cap samples for matched capping tooling.
- Bottle Discharge: Conveyor connection to the agreed post-fill treatment, drying, coding and labeling.
Before You Decide
Frequently Asked Questions
Answers to common questions about selection, integration and project planning.
What beverages can the BXGX fill?
The BXGX series handles beer and carbonated drinks in approved glass bottles. Share the beverage specification, target carbonation and temperature, and bottle and closure samples so the final configuration and output can be confirmed.
What is the rated BXGX output?
Eight listed models cover 1,000–21,000 bottles per hour. Actual output depends on bottle size, carbonation, closure and line balance.
What bottle and cap details are needed?
Send bottle drawings and physical bottle and cap samples. We confirm guides, change parts and capping tooling against the approved neck finish and closure.
