Automatic Linear OPP Hot Melt Glue Labeling Machine
Model:CY-ZR15
Automatic straight-line wrap-around labeling for PET, PP and PE round bottles using OPP, pearl-film or paper-plastic composite roll labels. Rated up to 15,000 BPH.
Line integration
Position in the Production Line
The current stage is highlighted. This example shows how the equipment connects within the selected line.
- Parallel preparation01AWater TreatmentFilter · Purify · Disinfect01BBottle BlowingPreform to Bottle
- 02FillingRinse · Fill · Cap
- 03DryingRemove Surface Moisture
- 04CodingDate · Batch · Traceability
- 05LabelingSleeve · Hot Melt · Self-AdhesiveCURRENT
- 06PackingFilm · Carton · Tray
- 07PalletizingStack Finished Packs
Swipe or scroll to explore all stages →
Reference flow only. Final process and equipment scope depend on the product, container, output and project requirements. Each stage links to its equipment or equipment category.
Equipment Overview

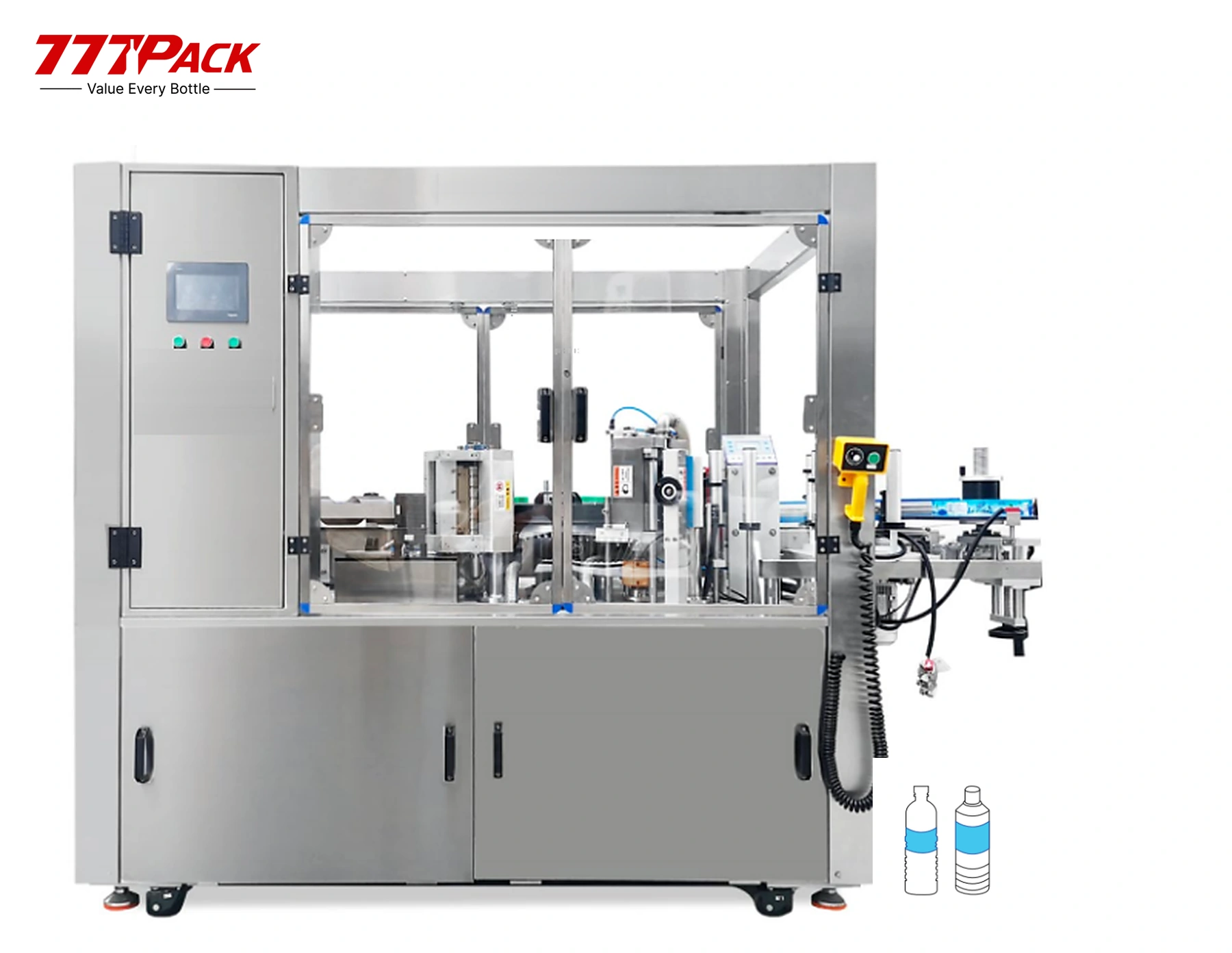

The CY-ZR15 Automatic Linear OPP Hot Melt Glue Labeling Machine provides stable wrap-around labeling for PET, PP and PE round bottles. It handles OPP film, pearl film and paper-plastic composite roll labels for water, beverage, food and household-product lines.
A continuous roll-fed process cuts each label, applies hot-melt glue at the leading and trailing edges, and transfers it to the bottle through a vacuum drum. The compact linear layout is designed for production up to 15,000 bottles per hour with straightforward access and format adjustment.
Machine Details

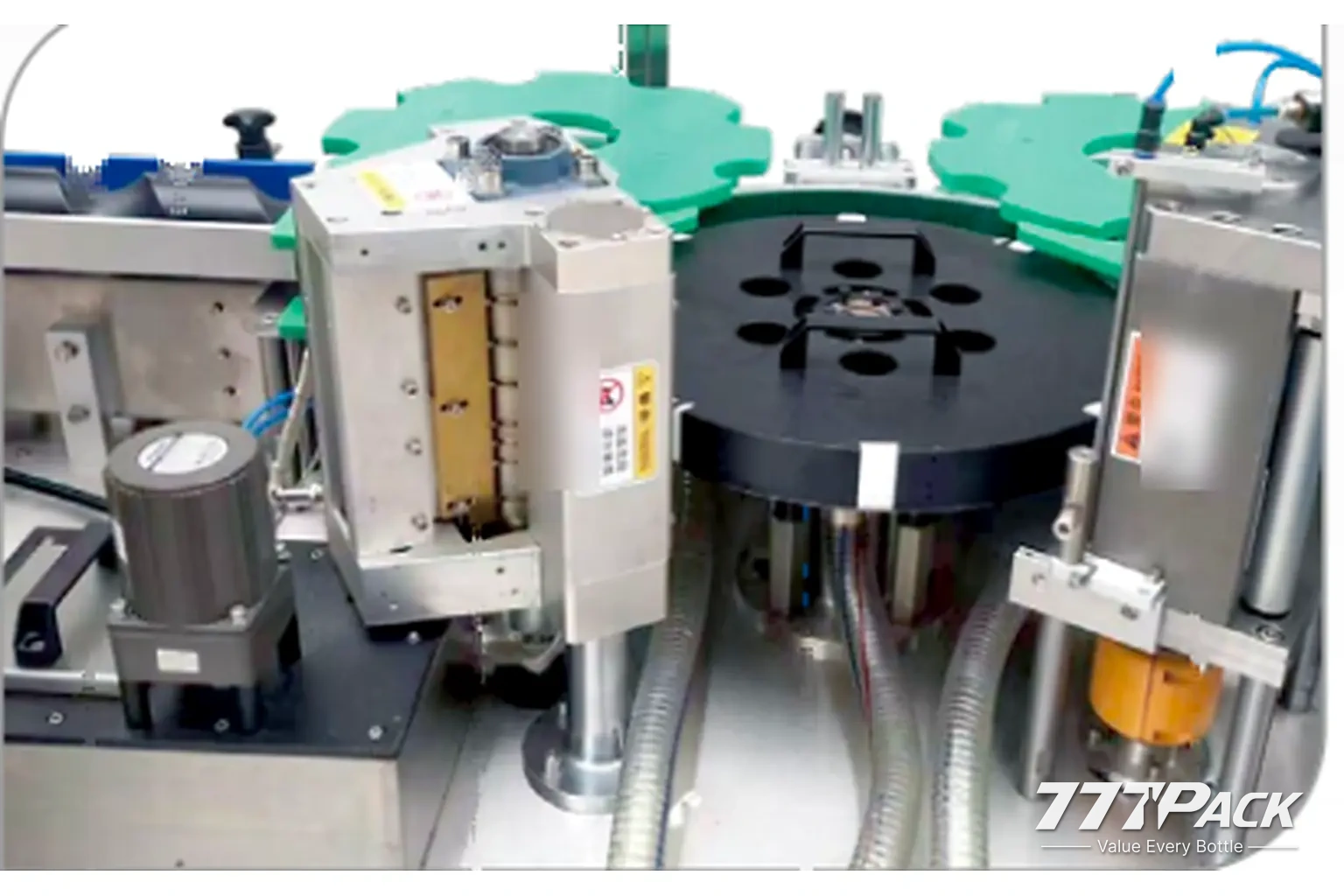

Label cutting and hot melt glue system of the CY-ZR15 linear OPP labeling machine

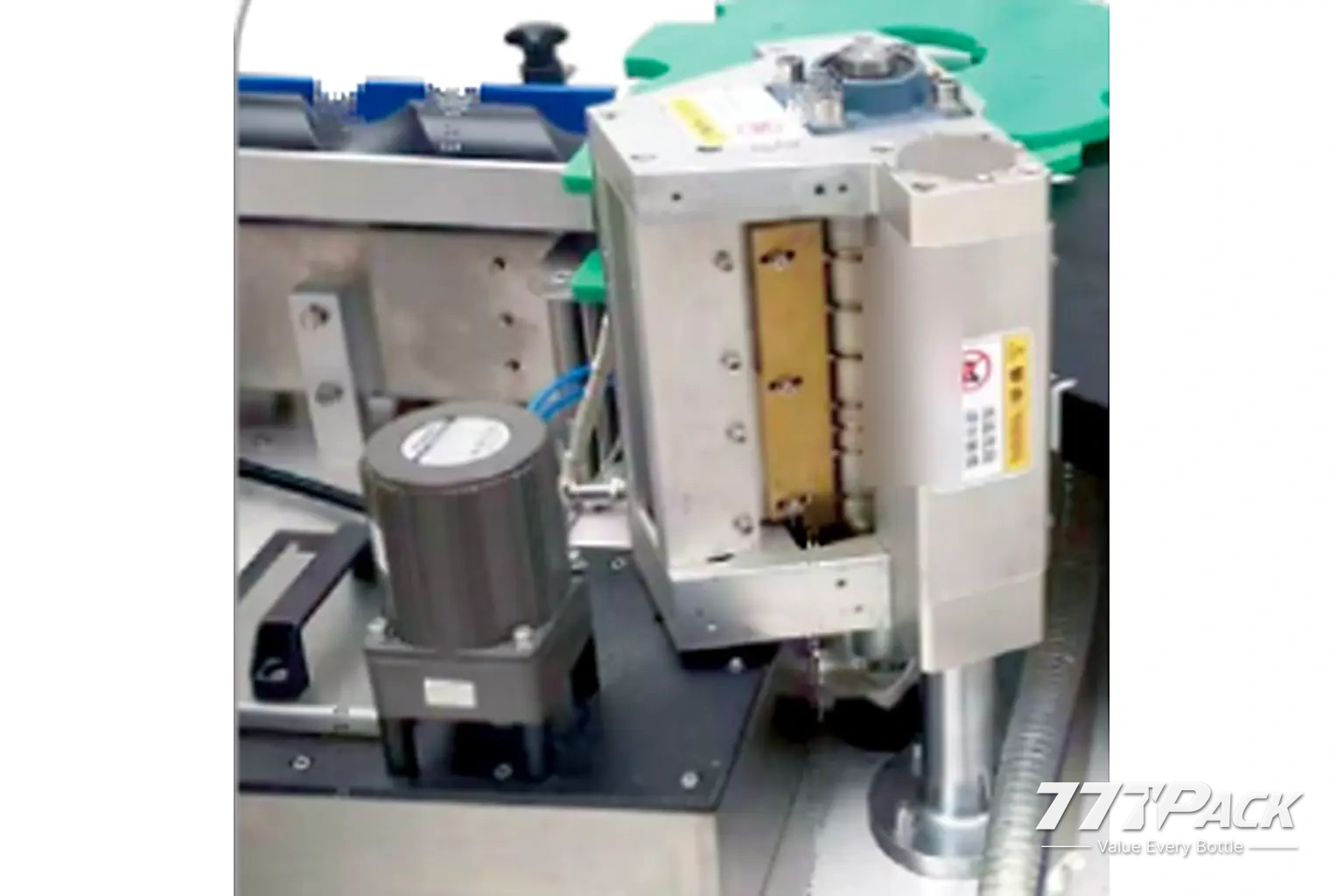

Bottle infeed and star wheel on the CY-ZR15 linear OPP labeling machine

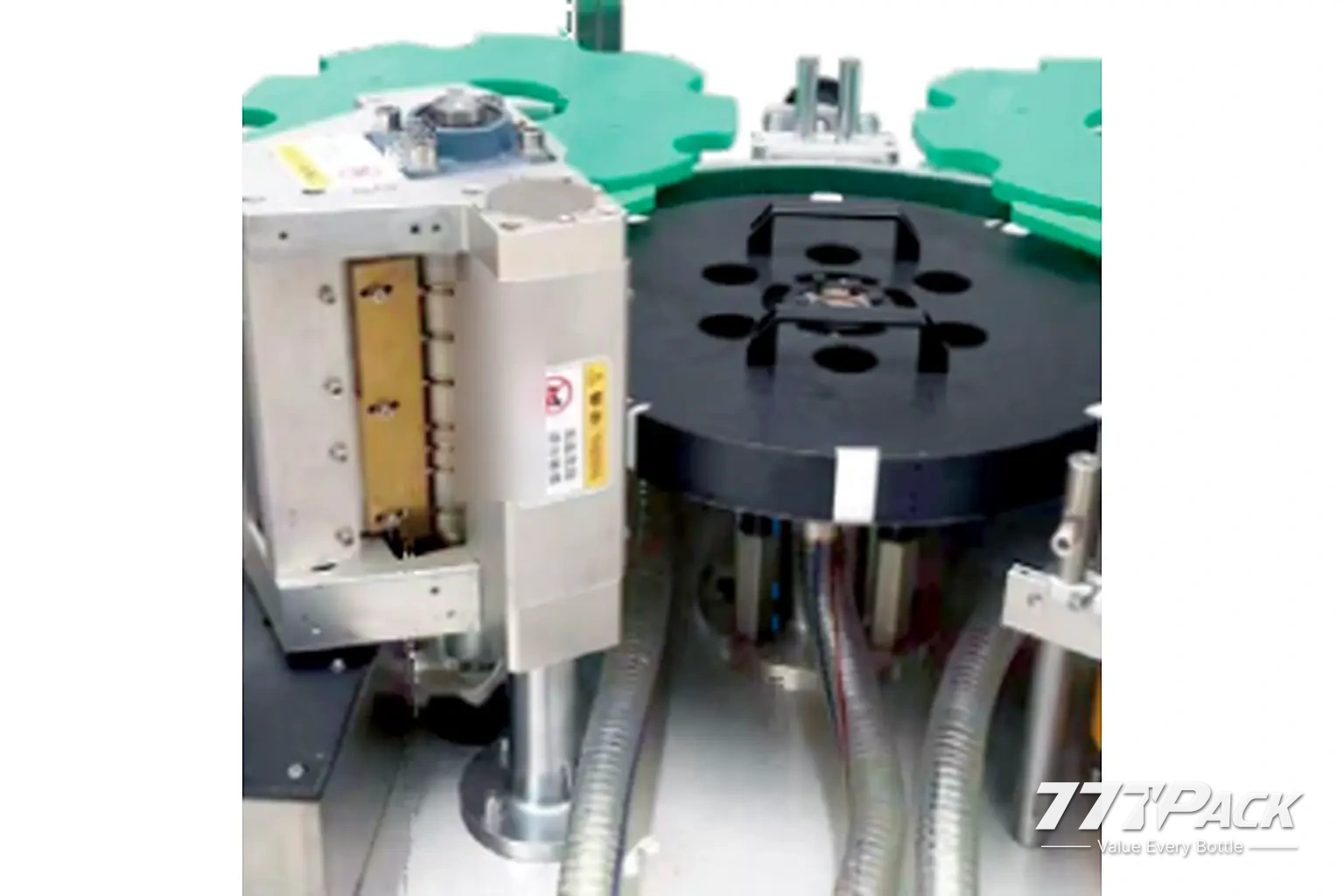

Glue drum and vacuum transfer drum on the CY-ZR15 linear OPP labeling machine
Key Component Brands
Core Specifications
| Labeling Accuracy | ±1 mm |
|---|---|
| Label Width | 15–150 mm |
| Bottle Diameter | 30–86 mm |
| Bottle Height | 70–360 mm |
| Roll Core Diameter | 152 (6-inch) mm |
| Maximum Roll Outer Diameter | Ø500 mm |
| Gluing Temperature | 120–160 °C |
| Electrical Supply | 3-phase 380 V / 50 Hz |
| Rated Power | 9 kW |
| Operating Air Pressure | 0.8 MPa |
Model Comparison
CY-ZR15 Automatic Linear OPP Labeling Machine
Compact straight-line solution for round PET, PP and PE bottles at up to 15,000 BPH.
| Model | Rated Output | Bottle Diameter / Height | Label Width | Rated Power | Overall Dimensions |
|---|---|---|---|---|---|
| CY-ZR15 | 15,000 BPH | Ø30–86 mm · H70–360 mm | 15–150 mm | 9 kW | 3048 × 2000 × 2100 mm |
Note. Rated output depends on bottle stability, label material, adhesive, utilities and upstream/downstream synchronization. Final performance is confirmed with approved bottle and label samples.
Working Principle
Engineering Highlights
Practical design details that affect operation, changeover, hygiene and maintenance.
Compact Linear Layout
3048 × 2000 × 2100 mmStraight-line structure supports access, maintenance and line integration.
Continuous Roll-Fed Labeling
Up to 15,000 BPHContinuous cutting and transfer reduce stop-start handling.
Precision Label Placement
±1 mm accuracyServo control coordinates label feed, cutting and bottle transfer.
Two-Edge Hot-Melt Application
120–160°CGlue is applied only at the leading and trailing edges to limit adhesive use.
Line Integration
Line Integration
Equipment role and interfaces for this reference application.
Applies wrap-around roll-fed labels after bottle drying and coding, before secondary packing. The linear conveyor, feed screw and star wheels control bottle spacing while the vacuum drum transfers and wraps each cut label.
- Bottle Infeed: Stable single-lane conveyor flow with bottle spacing matched to the feed screw and star wheel.
- Label Supply: Approved OPP, pearl-film or paper-plastic composite roll, 152 mm core and up to Ø500 mm roll OD.
- Line Controls: Speed synchronization and interlocks with upstream coding/drying and downstream packing.
Standard and Optional Configuration
- Feed Screw & Star-Wheel Transfer
Controlled bottle spacing and transfer through the linear labeling station.
- Roll-Fed Label Module
Label unwinding, measuring, cutting and vacuum-drum transfer.
- Hot-Melt Glue System
Leading- and trailing-edge gluing at 120–160°C.
- Servo & PLC Control
Siemens PLC and Schneider servo control as specified.
- HMI Operation & Fault Display
Displays operating status, output, glue temperatures and faults.
- Additional Bottle Change Parts
Dedicated star wheels and guides for additional approved bottle formats.
Utilities and Installation
Electrical
3-phase 380 V / 50 Hz, 9 kW.
Compressed Air
0.8 MPa, clean and dry.
Hot-Melt Adhesive
120–160°C; adhesive matched to label and bottle material.
Installation
Level floor, conveyor interfaces and maintenance clearance.
Before You Decide
Frequently Asked Questions
Answers to common questions about selection, integration and project planning.
What containers and labels can the CY-ZR15 handle?
It is designed for PET, PP and PE round bottles from 30–86 mm in diameter and 70–360 mm in height. It supports OPP film, pearl film and paper-plastic composite roll labels.
What is the rated output of the linear OPP labeling machine?
The CY-ZR15 is rated up to 15,000 bottles per hour. Actual output depends on bottle stability, label material, adhesive and complete-line synchronization.
Where is the machine installed in a PET bottling line?
It is installed at the labeling stage, normally after bottle drying and coding and before secondary packing.
