Automatic Linear Three-Sided Self-Adhesive Labeling Machine
Model:CY-030
Automatic linear three-sided self-adhesive labeling for flat and square bottles, with single- and double-sided modes. 4,800–12,000 BPH with servo-driven heads and optional round-bottle labeling.
Line integration
Position in the Production Line
The current stage is highlighted. This example shows how the equipment connects within the selected line.
- Parallel preparation01AWater TreatmentFilter · Purify · Disinfect01BBottle BlowingPreform to Bottle
- 02FillingRinse · Fill · Cap
- 03DryingRemove Surface Moisture
- 04CodingDate · Batch · Traceability
- 05LabelingSleeve · Hot Melt · Self-AdhesiveCURRENT
- 06PackingFilm · Carton · Tray
- 07PalletizingStack Finished Packs
Swipe or scroll to explore all stages →
Reference flow only. Final process and equipment scope depend on the product, container, output and project requirements. Each stage links to its equipment or equipment category.
Equipment Overview

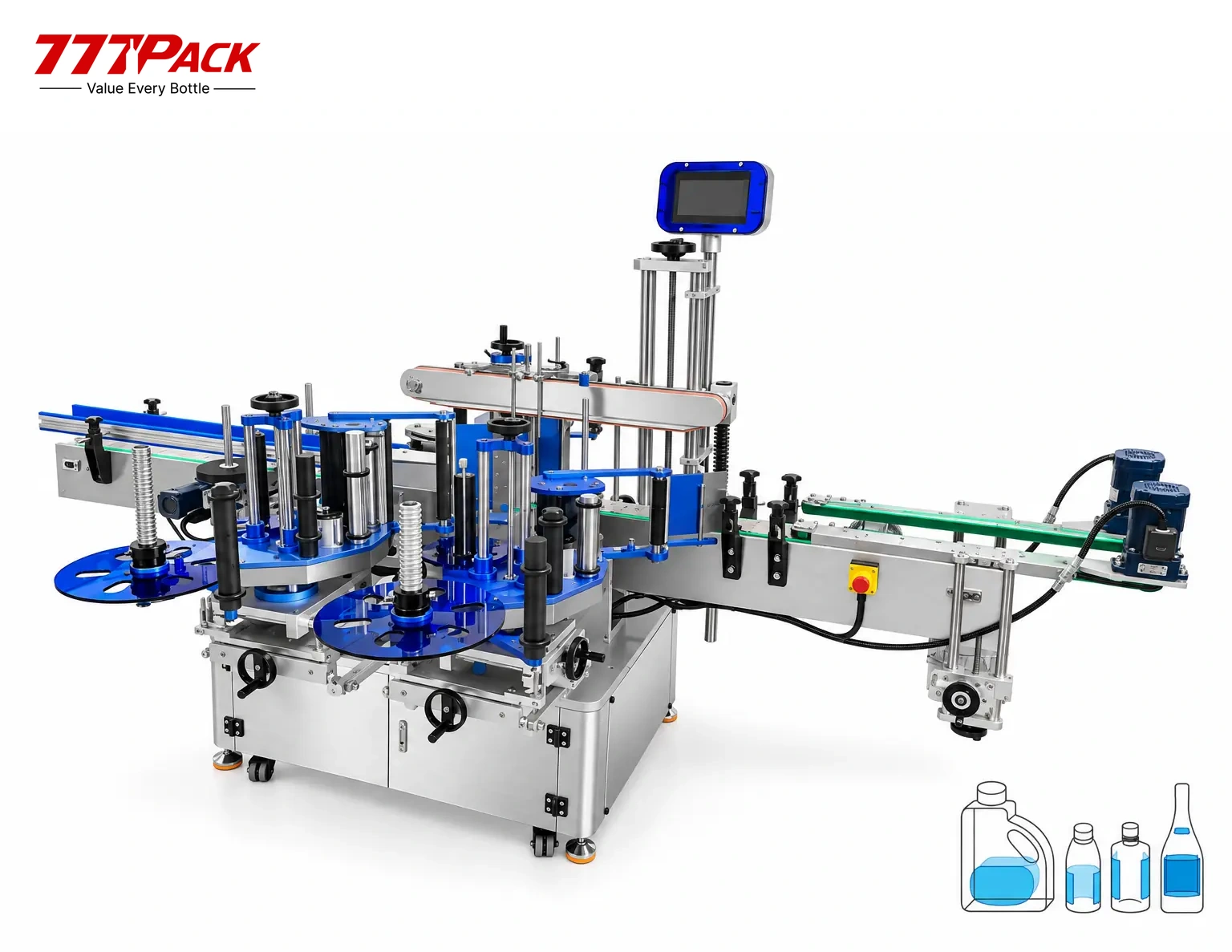

The CY-030 automatic linear three-sided self-adhesive labeling machine applies labels to one, two or three sides of flat and square bottles. Rated output is 4,800–12,000 bottles per hour; actual speed depends on container geometry and label layout.
Three labeling stations support multi-surface applications. Each labeling head offers eight-direction adjustment for fast alignment. Adjustable drive and pressure-roller contact guides label travel without distortion, while dual pressure rollers and split-clutch tension control keep label feed stable.
Servo-driven labeling, a multi-channel encoder and synchronized top-belt and conveyor control support high-speed positioning. Optional air-driven positioning or roller attachments enable round-bottle labeling. Bottle and label samples should be confirmed before final configuration.
Machine Details

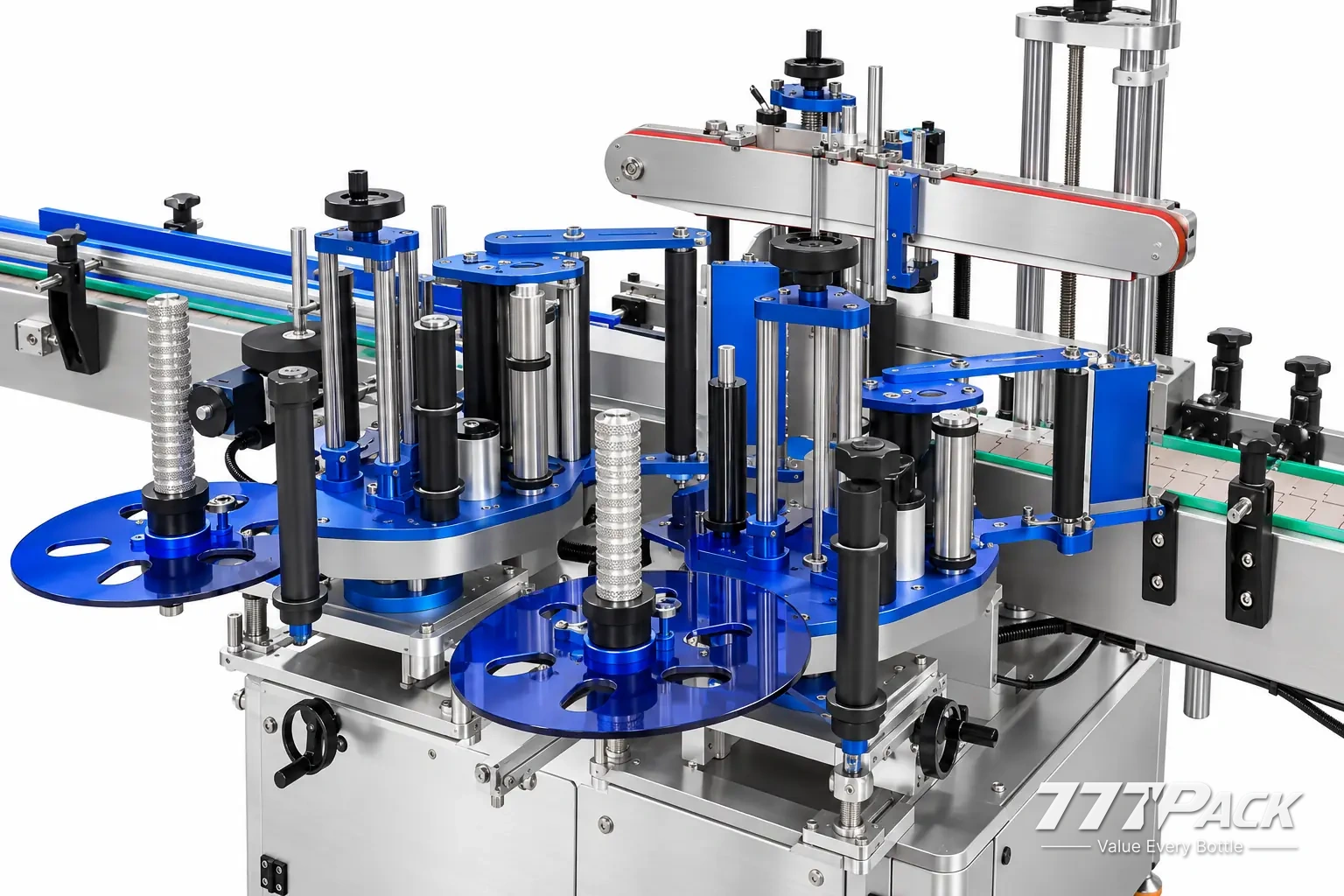

Three labeling stations and pressure rollers on the CY-030 linear labeling machine

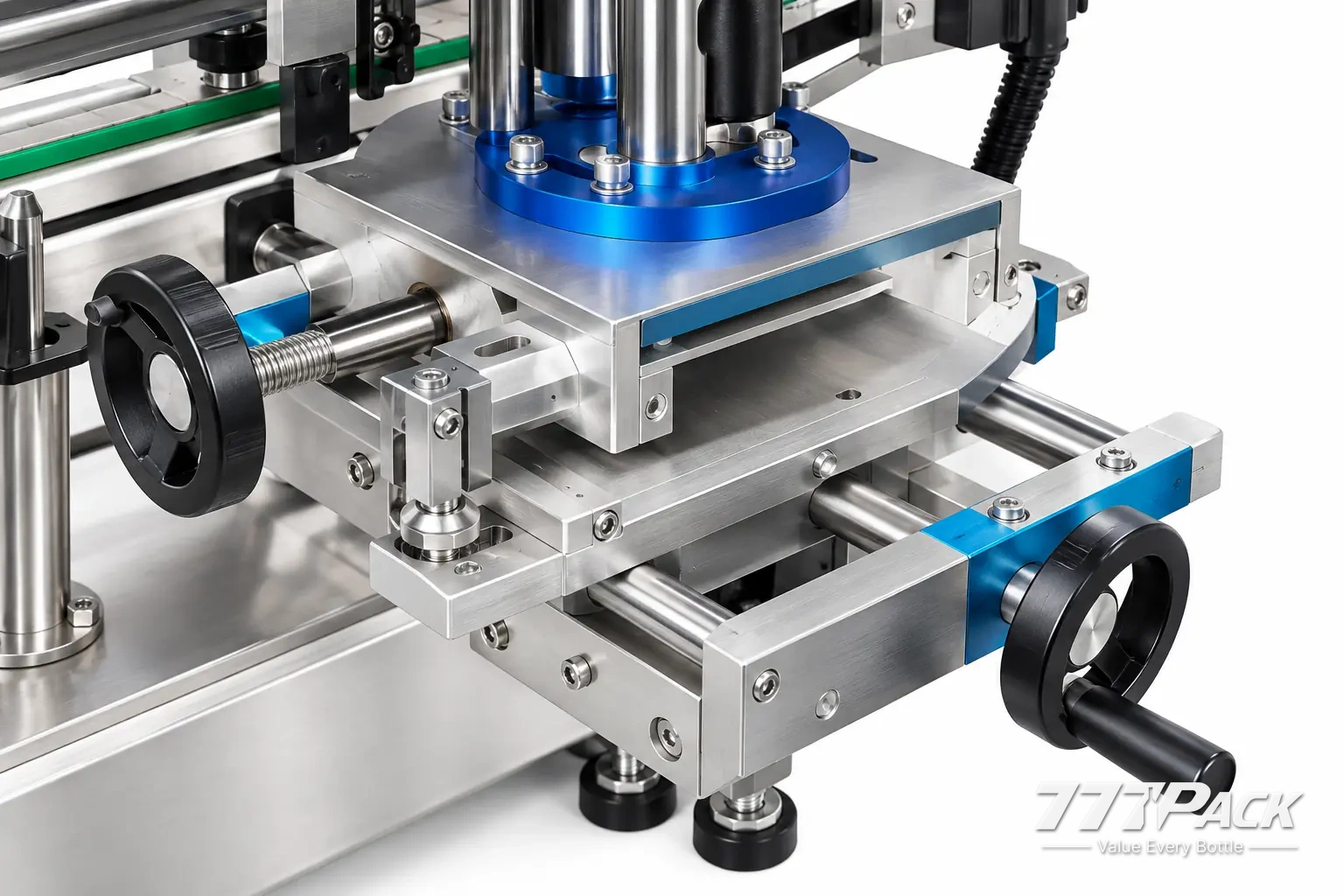

Eight-direction labeling head adjustment mechanism on the CY-030 labeling machine
Core Specifications
| Production Speed | 4,800–12,000 BPH |
|---|---|
| Labeling Functions | Single-, double- and three-sided |
| Compatible Containers | Flat / square bottles; optional round bottles |
| Container Range | Thickness ≥30 mm · height ≤500 mm |
| Max Label Width | 195 mm |
| Label Roll Inner Diameter | 76.2 mm |
| Max Roll Outer Diameter | 380 mm |
| Machine Dimensions | 3500 × 1700 × 1800 mm |
| Machine Weight | 380 kg |
| Power Supply | 220 V · 50 Hz |
| Installed Power | 4 kW |
Model Comparison
CY-030 Technical Data
CY-030 is configured for multi-surface self-adhesive labeling on flat and square bottles.
| Model | Rated Output | Labeling Functions | Max Label Width | Power Supply | Machine Dimensions |
|---|---|---|---|---|---|
| CY-030 | 4,800–12,000 BPH | Single / Double / Three-Sided | 195 mm | 220 V · 50 Hz · 4 kW | 3500 × 1700 × 1800 mm |
Note. Rated output depends on bottle geometry, label specification and labeling layout.
Working Principle
Bottles enter on the conveyor, where guide rails and a synchronized top belt stabilize them. A multi-channel encoder detects the bottle position and triggers the required labeling station or stations.
Servo-driven labeling heads feed the self-adhesive labels, and adjustable pressure rollers apply them to one, two or three selected surfaces. Each head can be adjusted in eight directions to align the label position for the bottle format. Optional air-driven positioning or roller attachments support round bottles.
Engineering Highlights
Practical design details that affect operation, changeover, hygiene and maintenance.
Three-Station Multi-Surface Labeling
Single · Double · Three-sidedOne, two or three-sided label application from one linear platform.
Eight-Direction Head Adjustment
8-direction adjustmentLabeling heads can be aligned quickly across bottle formats and label positions.
Servo and Encoder Synchronization
4,800–12,000 BPHServo drive, multi-channel encoder and synchronized top belt support stable high-speed placement.
Line Integration
Line Integration
Equipment role and interfaces for this reference application.
Applies self-adhesive labels after coding and before secondary packaging. Three labeling stations support single-, double- and three-sided applications.
- Upstream: Receives filled, dried and coded bottles on the conveyor
- Bottle Handling: Guide rails and a synchronized top belt stabilize flat and square bottles
- Label Supply: Self-adhesive rolls · 76.2 mm inner diameter · max 380 mm outer diameter
- Downstream: Transfers labeled bottles to inspection or secondary packaging
Standard and Optional Configuration
- Three labeling stations
Support single-, double- and three-sided labeling.
- Servo-driven labeling heads
Closed-loop drive for stable high-speed label feed.
- Dual pressure-roller assemblies
Maintain label tension and reduce distortion.
- Eight-direction head adjustment
Rapid alignment for different containers and label positions.
- Multi-channel encoder
Detects labeling position at production speed.
- Synchronized top belt and conveyor
Stabilizes bottles and keeps transport aligned.
- Chinese/English touchscreen HMI
On-machine operation and help interface.
- Round-bottle roller labeling attachment
Adds precise labeling for round containers.
- Air-driven positioning mechanism
Supports accurate positioning for round-bottle applications.
- Raised labeling-head configuration
For applications requiring a larger label width; confirm the project design.
Utilities and Installation
Electrical Supply
220 V · 50 Hz
Installed Power
4 kW
Before You Decide
Frequently Asked Questions
Answers to common questions about selection, integration and project planning.
What containers can the CY-030 label?
The CY-030 is designed for flat and square bottles and can apply labels to one, two or three sides. Round bottles can be handled with an optional air-driven positioning or roller labeling attachment.
What is the rated output of the CY-030?
The rated output is 4,800–12,000 bottles per hour. Actual speed depends on bottle geometry, label size, label layout and the required number of labeled sides.
What label rolls does the machine use?
The standard maximum label width is 195 mm. The label roll uses a 76.2 mm inner diameter and supports up to 380 mm outer diameter. Wider-label requirements need a project-specific configuration.
What samples are needed before final configuration?
Provide representative bottles, label rolls or label drawings, required label positions and the target production speed. These are used to confirm guides, head positions and the final labeling setup.
