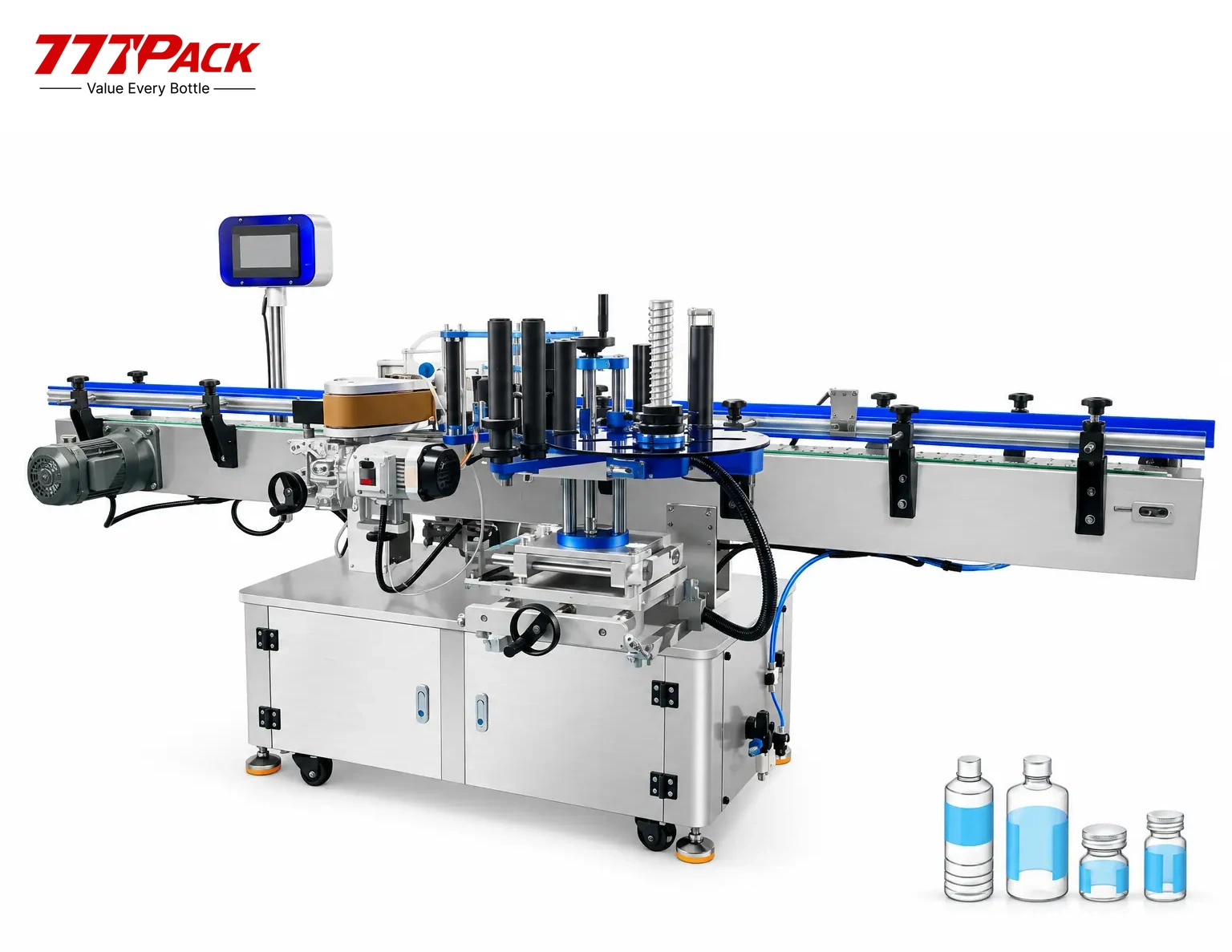

Automatic Full-Wrap Round Bottle Self-Adhesive Labeling Machine
Model:CY-060
Automatic full-wrap self-adhesive labeling for small and medium round bottles. Star-wheel handling, a triangular wrap belt and servo drive support 7,000–18,000 BPH with ±1 mm accuracy.
Line integration
Position in the Production Line
The current stage is highlighted. This example shows how the equipment connects within the selected line.
- Parallel preparation01AWater TreatmentFilter · Purify · Disinfect01BBottle BlowingPreform to Bottle
- 02FillingRinse · Fill · Cap
- 03DryingRemove Surface Moisture
- 04CodingDate · Batch · Traceability
- 05LabelingSleeve · Hot Melt · Self-AdhesiveCURRENT
- 06PackingFilm · Carton · Tray
- 07PalletizingStack Finished Packs
Swipe or scroll to explore all stages →
Reference flow only. Final process and equipment scope depend on the product, container, output and project requirements. Each stage links to its equipment or equipment category.
Equipment Overview
The CY-060 automatic full-wrap round bottle self-adhesive labeling machine applies labels around the full circumference of small and medium cylindrical bottles. Rated output is 7,000–18,000 bottles per hour with labeling accuracy of ±1 mm; actual performance depends on the bottle and label specification.
A rolling star-wheel mechanism guides bottles through the labeling area, while the original triangular wrap-belt structure presses labels continuously around the bottle. The label does not need to stop during application, helping reduce placement errors caused by uneven bottle profiles.
A high-power servo drive supports stable high-speed label feeding and broader application requirements. The touchscreen HMI includes online help for setup and operation. The standard maximum label width is 195 mm; larger label-width requirements need a project-specific raised configuration.
Machine Details

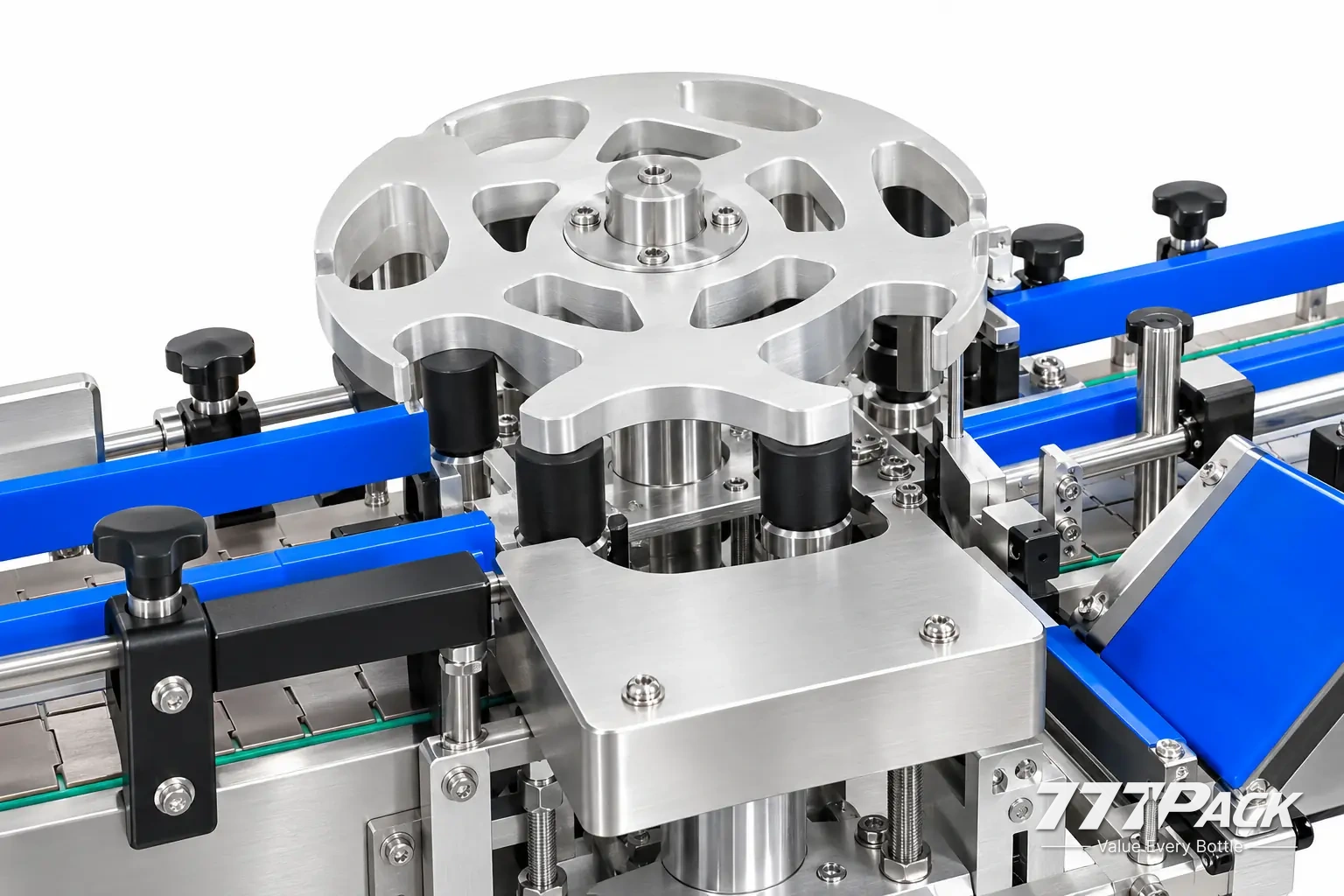

Rolling star-wheel bottle handling mechanism on the CY-060 labeling machine

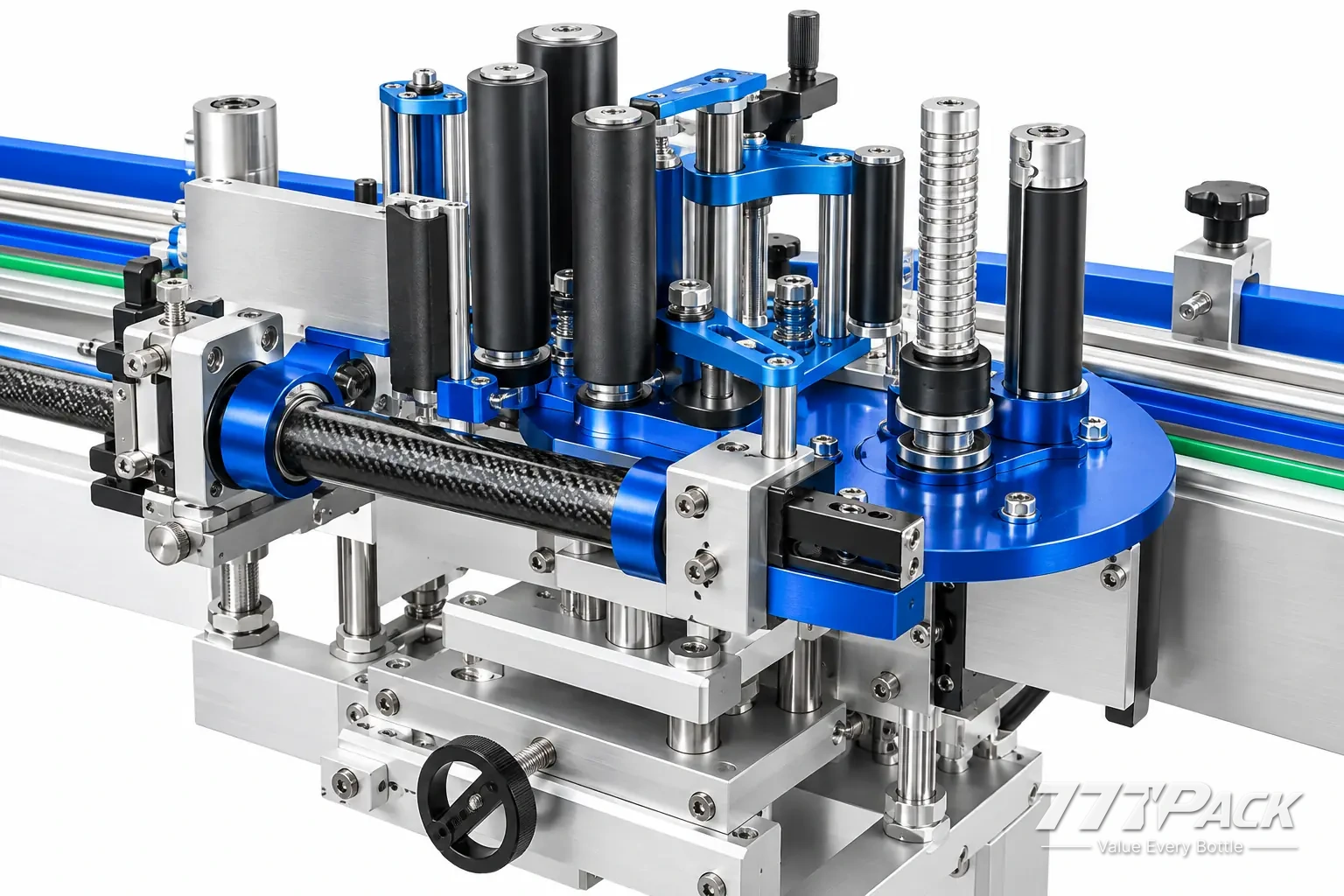

Carbon-fiber swing rod and label-feed components on the CY-060 round bottle labeling machine
Core Specifications
| Production Speed | 7,000–18,000 BPH |
|---|---|
| Labeling Accuracy | ±1 mm |
| Compatible Containers | Small / medium cylindrical bottles |
| Labeling Application | Full-circumference self-adhesive labeling |
| Max Label Width | 195 mm |
| Label Roll Inner Diameter | 76.2 mm |
| Label Roll Outer Diameter | 380 mm |
| Machine Dimensions | 3000 × 1250 × 1500 mm |
| Power Supply | 220 V · 50 Hz · 1.5 kW |
Model Comparison
CY-060 Technical Data
CY-060 is configured for high-speed full-circumference labeling of small and medium round bottles.
| Model | Rated Output | Labeling Accuracy | Max Label Width | Power Supply | Machine Dimensions |
|---|---|---|---|---|---|
| CY-060 | 7,000–18,000 BPH | ±1 mm | 195 mm | 220 V · 50 Hz · 1.5 kW | 3000 × 1250 × 1500 mm |
Note. Rated output depends on bottle geometry, label specification and production conditions.
Working Principle
Round bottles enter on the conveyor and are guided into the rolling star-wheel mechanism. The star wheel controls bottle spacing and positioning as each container enters the labeling station.
The servo-driven labeling head feeds the self-adhesive label, and the triangular wrap belt rotates the bottle while pressing the label around its circumference. The bottle then exits onto the downstream conveyor for inspection or secondary packaging.
Engineering Highlights
Practical design details that affect operation, changeover, hygiene and maintenance.
Star-Wheel Bottle Handling
High-speed transferRolling star wheel controls bottle spacing and transfer at production speed.
Continuous Triangular Wrap Belt
Full-circumference wrapLabels are pressed around the bottle without stopping label application.
Servo-Driven Accuracy
±1 mm accuracyHigh-power servo drive supports stable label feed across 7,000–18,000 BPH.
Line Integration
Line Integration
Equipment role and interfaces for this reference application.
Applies full-circumference self-adhesive labels after coding and before secondary packaging. Star-wheel handling and a triangular wrap belt stabilize round bottles at high speed.
- Upstream: Receives filled, dried and coded round bottles on the conveyor
- Bottle Handling: Rolling star wheel controls bottle spacing and transfer
- Label Supply: Self-adhesive rolls · 76.2 mm inner diameter · 380 mm outer diameter
- Downstream: Transfers labeled bottles to inspection or secondary packaging
Standard and Optional Configuration
- Rolling star-wheel bottle handling
Controls bottle spacing and transfer through the labeling area.
- Triangular wrap-belt system
Rotates bottles and presses labels around the full circumference.
- High-power servo drive
Supports stable high-speed label feeding.
- Carbon-fiber swing rod
Lightweight, durable structure for the label-feed assembly.
- Touchscreen HMI
Online help supports setup and operation.
- Stainless-steel conveyor and cabinet
Industrial structure for line integration.
- Raised labeling-head configuration
For applications requiring label widths above the standard 195 mm; confirm project design.
Utilities and Installation
Electrical Supply
220 V · 50 Hz
Installed Power
1.5 kW
Before You Decide
Frequently Asked Questions
Answers to common questions about selection, integration and project planning.
What bottles can the CY-060 label?
The CY-060 is designed for small and medium cylindrical bottles. It applies self-adhesive labels around the full circumference and is suitable for beverage, daily-chemical and pharmaceutical bottle formats after sample confirmation.
What is the rated output?
The rated output is 7,000–18,000 bottles per hour. Actual speed depends on bottle geometry, label size, label material and production conditions.
What label rolls does it use?
The standard maximum label width is 195 mm. The label roll uses a 76.2 mm inner diameter and supports 380 mm outer diameter. Wider-label applications require a project-specific raised configuration.
Why does it use a triangular wrap belt?
The triangular belt rotates the bottle while pressing the label around its full circumference. Continuous application reduces placement error from uneven bottle profiles and supports high-speed labeling.
