Glass Bottle Water Filling Machine
Model:XGX
Automatic rinsing, filling and capping for still water in glass bottles. Six XGX models cover 6,000–24,000 bottles per hour.
Line integration
Position in the Production Line
The current stage is highlighted for this product and container configuration.
- Parallel preparation01AWater TreatmentFilter · Purify · Disinfect01BDepalletizingUnload · Separate · Feed
- 02FillingRinse · Fill · CapCURRENT
- 03DryingRemove Surface Moisture
- 04CodingDate · Batch · Traceability
- 05LabelingSleeve · Hot Melt · Self-Adhesive
- 06PackingFilm · Carton · Tray
- 07PalletizingStack Finished Packs
Swipe or scroll to explore all stages →
Reference flow only. Final process and equipment scope depend on the product, container, output and project requirements. Each stage links to its equipment or equipment category.
Equipment Overview

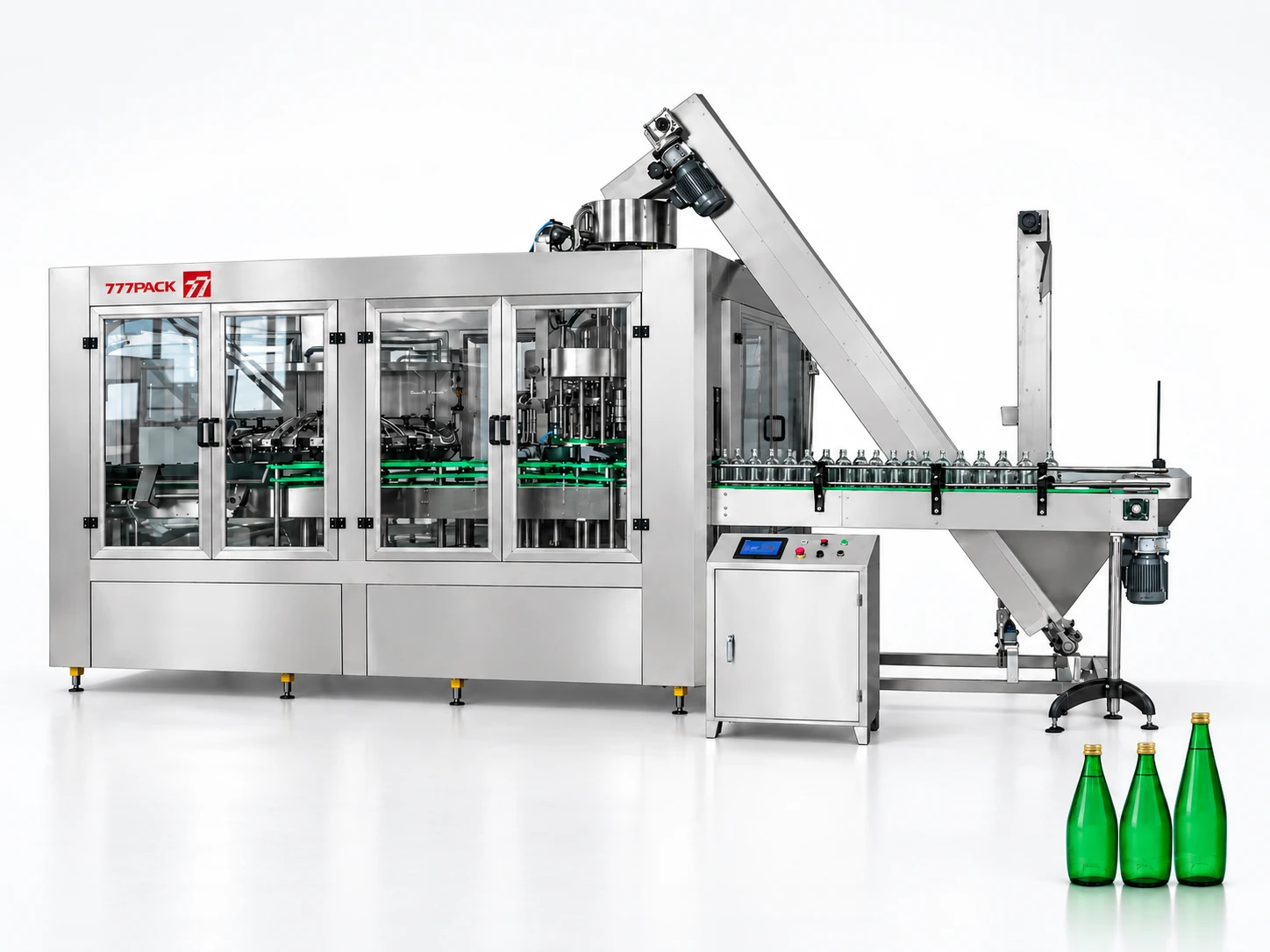

The XGX glass bottle water filling machine combines bottle rinsing, still-water filling and aluminum screw capping in one rotary monoblock. Six configurations are rated from 6,000 to 24,000 BPH, with 18–60 rinsing and filling heads and 6–15 capping heads.
Designed for purified and mineral water in glass bottles. Select the model by target output, bottle size and neck finish. Bottle and aluminum cap samples are checked before finalizing guides, change parts and capping tooling.
Machine Details

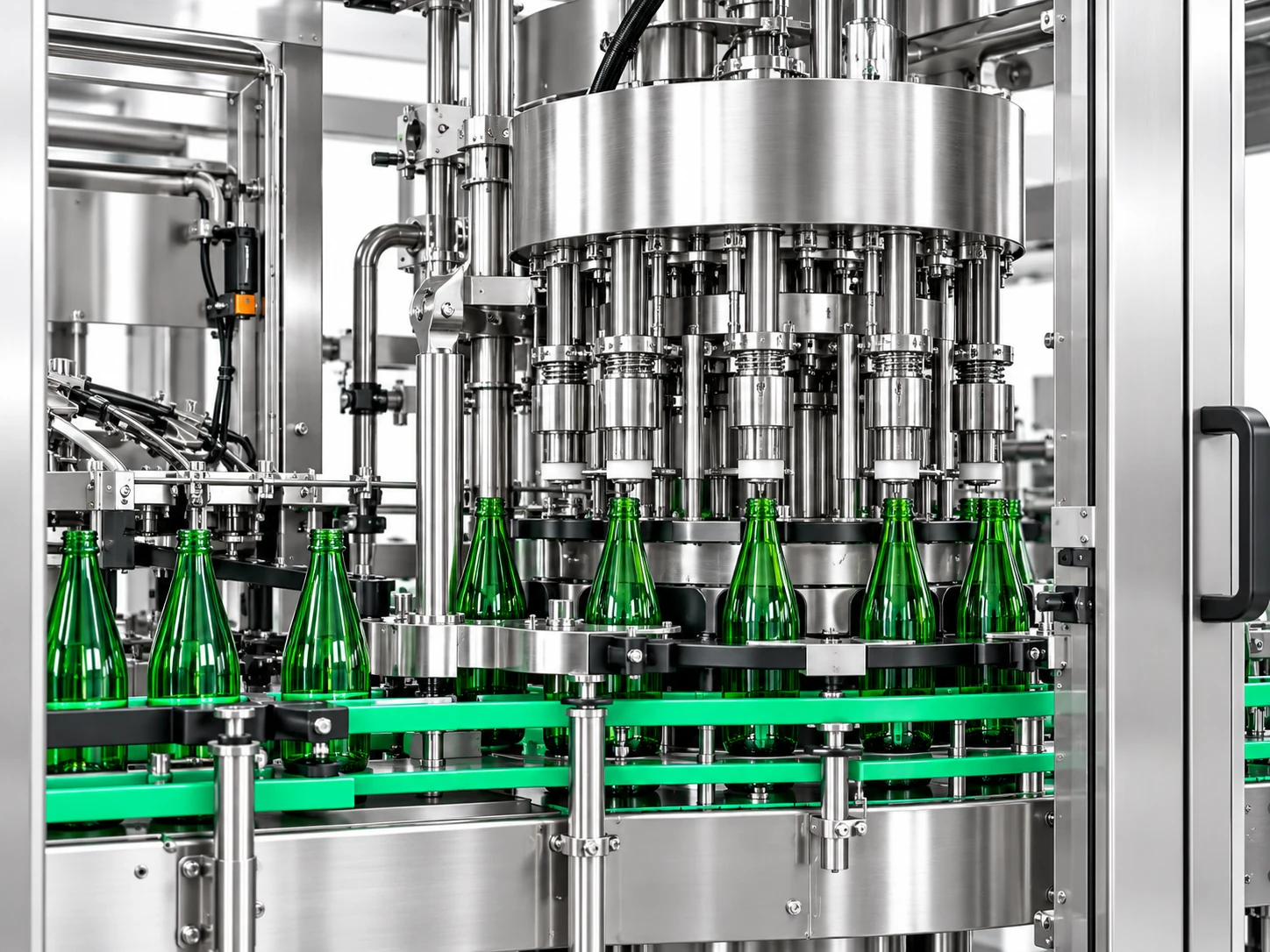

XGX glass bottle water filling machine rotary filling heads with green glass bottles

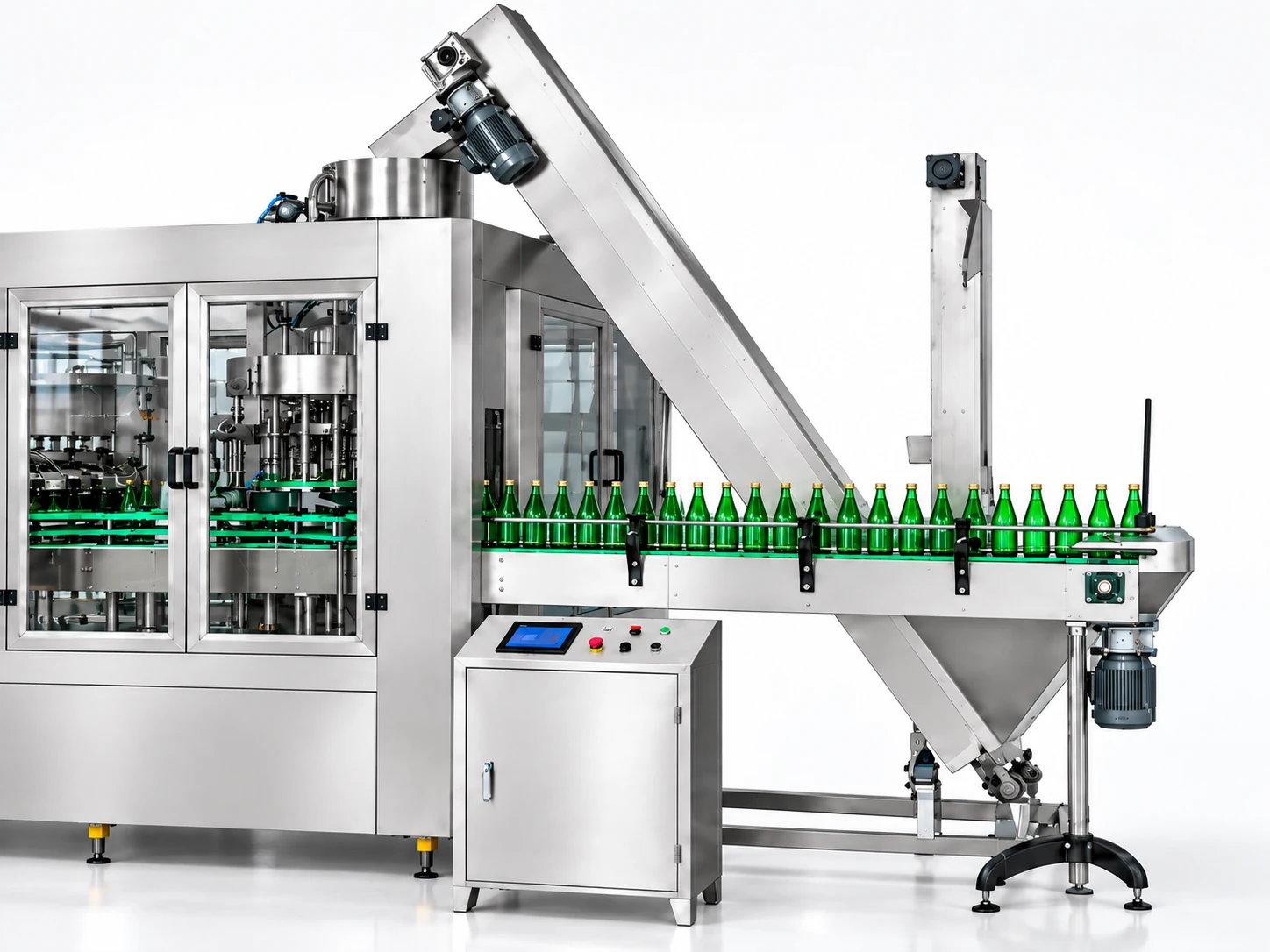

XGX glass bottle water filling machine cap feeder and conveyor with green glass bottles

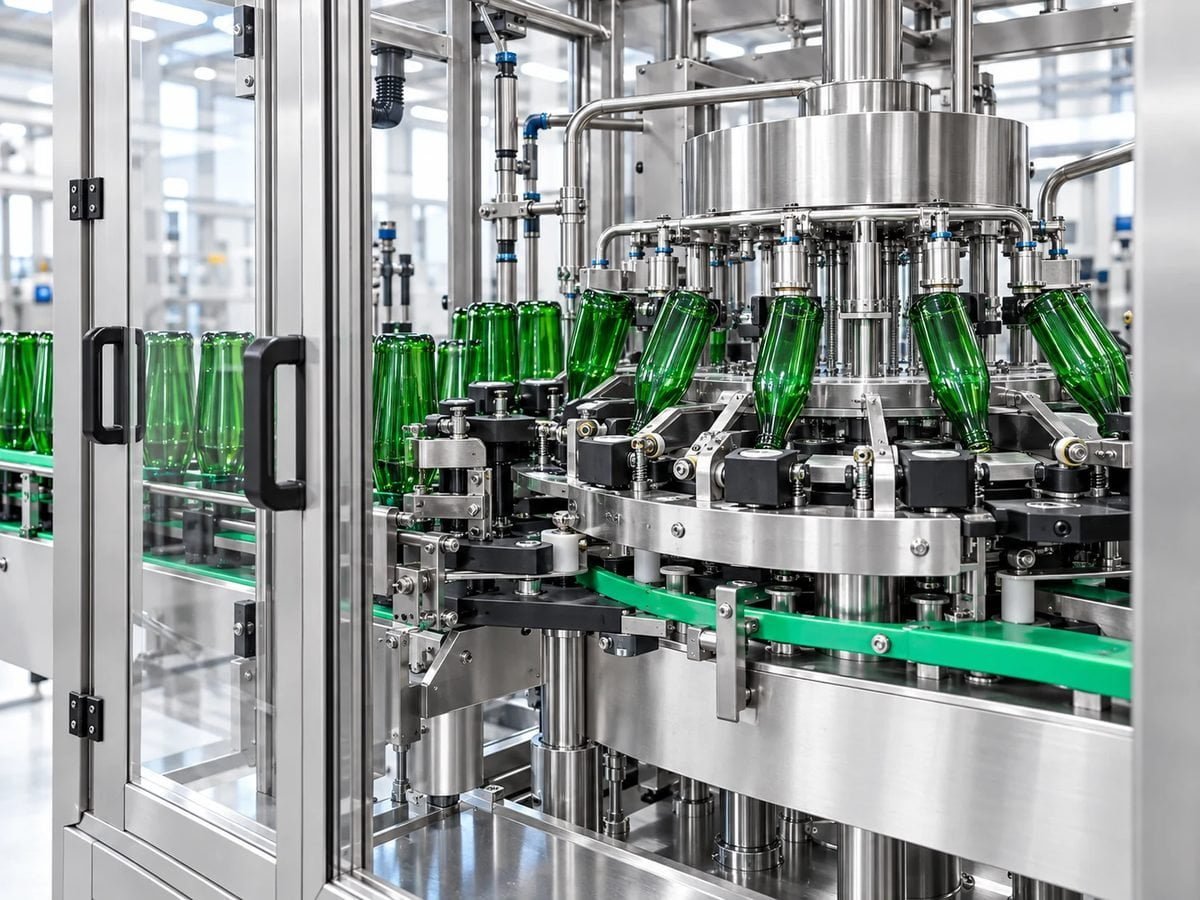

XGX glass bottle water filling machine rotary rinsing section with inverted green glass bottles
Key Component Brands



Core Specifications
| Capacity Coverage | 6000–24000 BPH |
|---|---|
| Suitable Products | Purified Water, Mineral Water |
| Control | Siemens PLC + HMI |
| Main Material | Stainless steel; grade to confirm |
| Power Supply | Customized |
Model Comparison
XGX Glass Bottle Water Filling Machine Models
Six standard XGX configurations for purified and mineral water in glass bottles.
| Model | Rated Output | Dimensions (mm) | Power (kW) | Rinse / Fill / Cap Heads |
|---|---|---|---|---|
| XGX18/18/6 | 6,000 BPH | 2850 × 2150 × 2750 | 2.2 kW | 18 / 18 / 6 |
| XGX24/24/8 | 10,000 BPH | 2880 × 2180 × 2750 | 2.2 kW | 24 / 24 / 8 |
| XGX32/32/8 | 12,000 BPH | 3380 × 2580 × 2750 | 3 kW | 32 / 32 / 8 |
| XGX40/40/10 | 15,000 BPH | 4430 × 3280 × 2750 | 7.5 kW | 40 / 40 / 10 |
| XGX50/50/15 | 20,000 BPH | 4720 × 3550 × 2750 | 7.5 kW | 50 / 50 / 15 |
| XGX60/60/15 | 24,000 BPH | 6000 × 5450 × 2750 | 11 kW | 60 / 60 / 15 |
Note. Values follow the supplied XGX specification table. Final output and change parts depend on the approved bottle, neck finish and cap.
Working Principle
Line Integration
Line Integration
Equipment role and interfaces for this reference application.
After water treatment and empty-glass-bottle feeding, the XGX monoblock rinses bottles, fills still water and applies caps. Sealed bottles move to drying, coding, labeling and packing.
- Bottle Infeed: Approved glass bottles and neck finish; matched conveyor guides.
- Treated Water: Sanitary water supply at the confirmed line flow.
- Caps: Approved cap samples for matched capping tooling.
- Bottle Discharge: Conveyor connection to drying, coding and labeling.
Before You Decide
Frequently Asked Questions
Answers to common questions about selection, integration and project planning.
What water can this machine fill?
The XGX series fills purified, mineral and other non-carbonated water in approved glass bottles.
What is the rated output?
Six models cover 6,000 to 24,000 bottles per hour. Actual output depends on the bottle, cap and line conditions.
What cap type does the XGX glass bottle water filling machine use?
The specified closure is an aluminum screw cap. Send bottle-neck drawings and cap samples so we can confirm capping tooling and change parts for your glass bottle.
