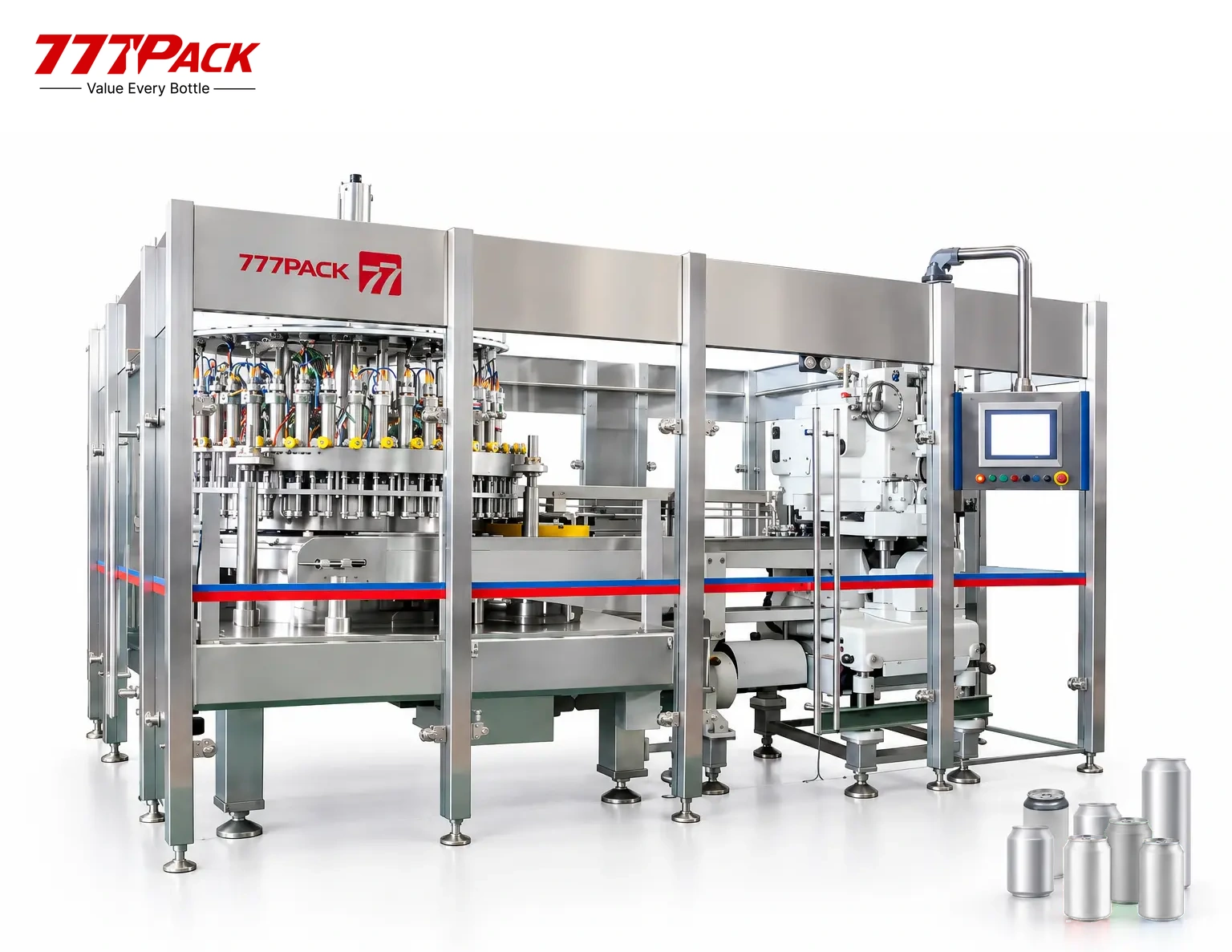

Can Filling & Seaming Machine for Beer & Carbonated Drinks
Model:TYLG
Automatic counter-pressure can filling and double seaming for beer and carbonated drinks in approved two-piece or three-piece cans, with standard output from 30 to 400 cans/min.
Line integration
Position in the Production Line
Select the beverage application to explore its reference line. Filling is the highlighted stage in each example.
Equipment Overview
The TYLG Series combines counter-pressure filling and automatic seaming for beer and carbonated drinks in one enclosed rotary system. Pressure-controlled filling limits foaming and CO₂ loss, while coordinated lid placement and double seaming protect seal integrity.
Designed for beer, carbonated soft drinks, sparkling water and energy drinks, the series offers three configurations from 30 to 400 cans/min. It supports two-piece aluminum and three-piece tinplate cans and can be integrated with can depalletizing and rinsing, product preparation and carbonation as required, post-fill treatment and drying, coding and packing systems.
Final filling pressure, valve timing, seaming tooling and utilities are confirmed against the beverage, CO₂ volume, can body, lid and required output.
Machine Details

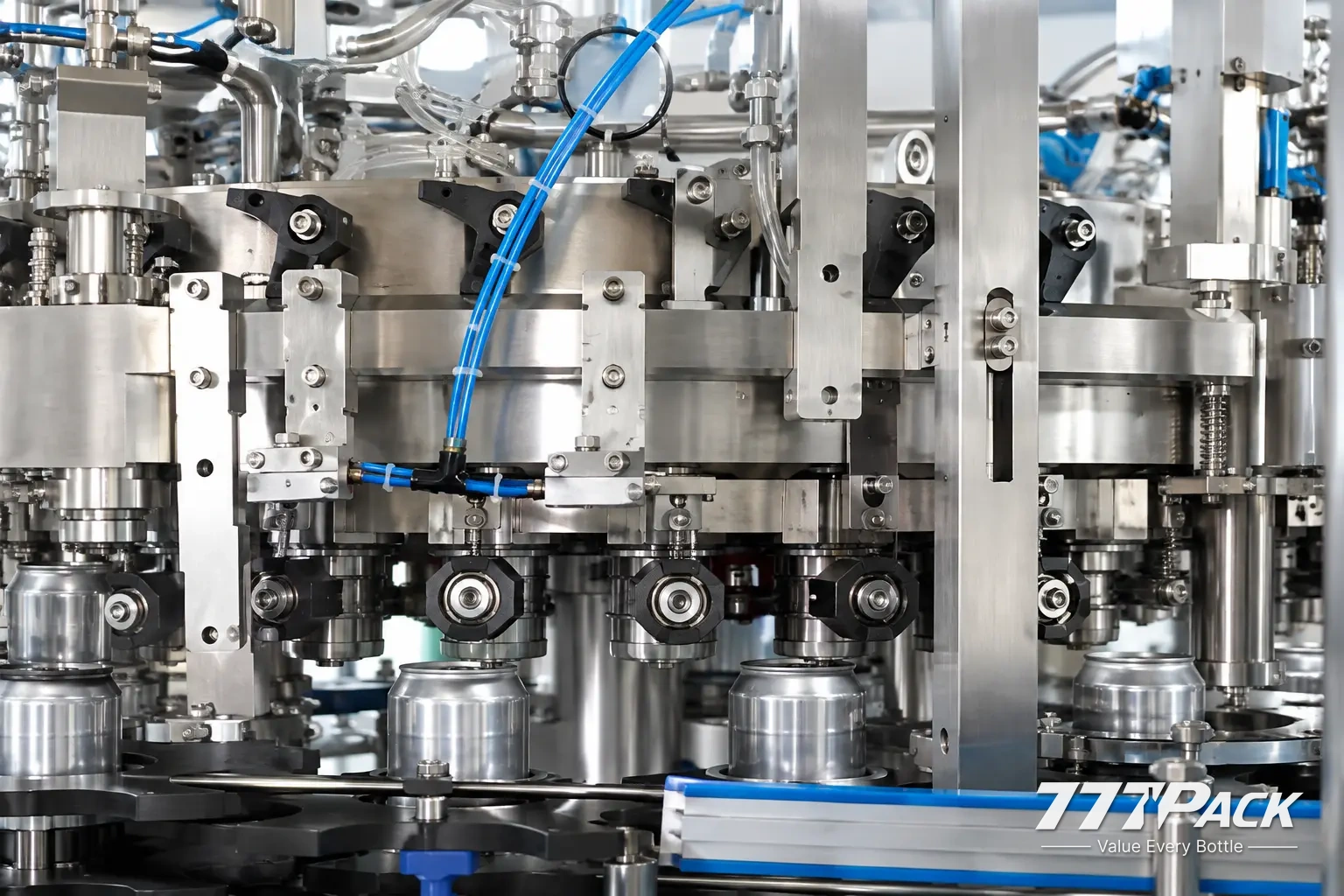

Counter-pressure filling valves for canned beer and carbonated beverages

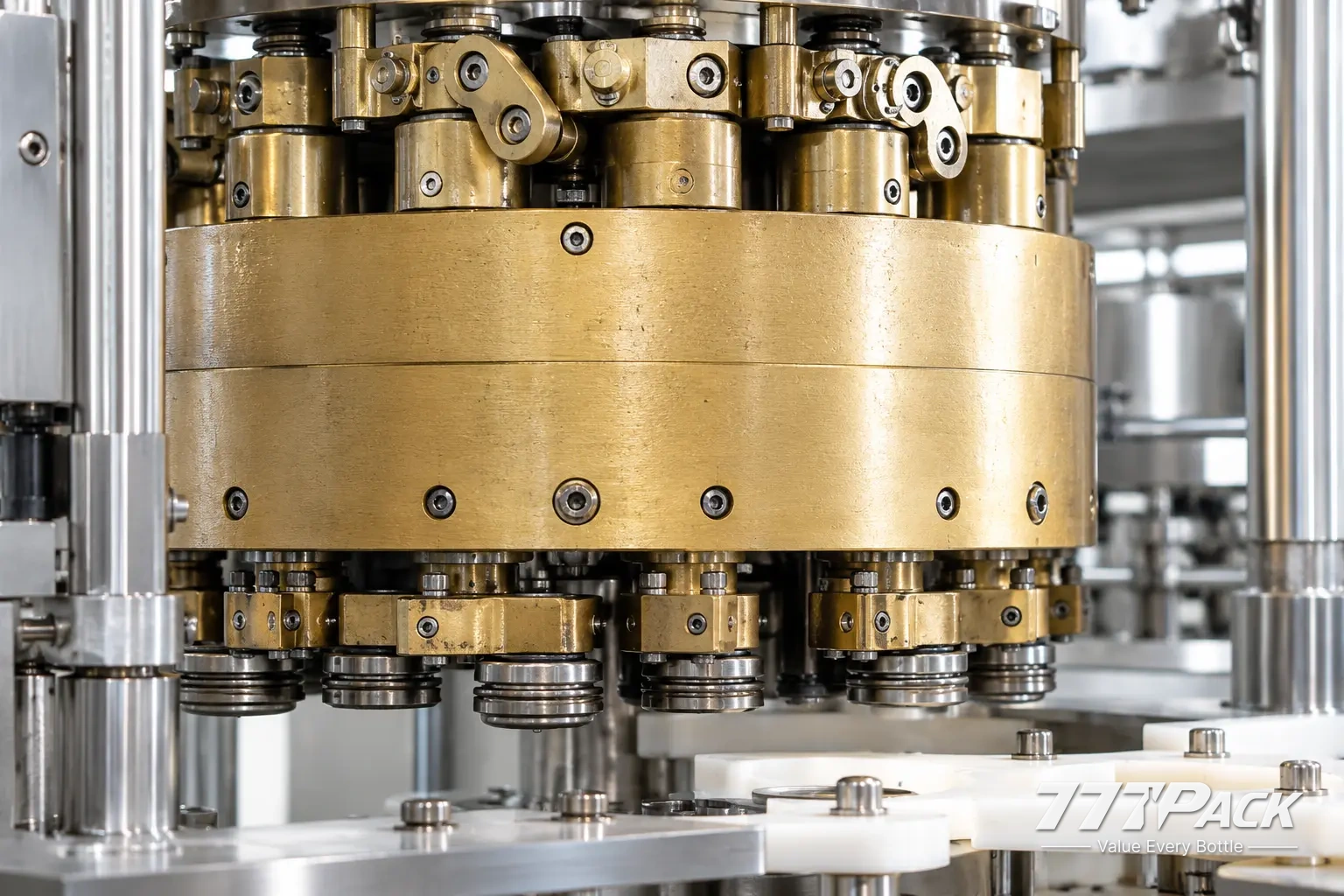

Rotary can seaming heads for easy-open beverage cans

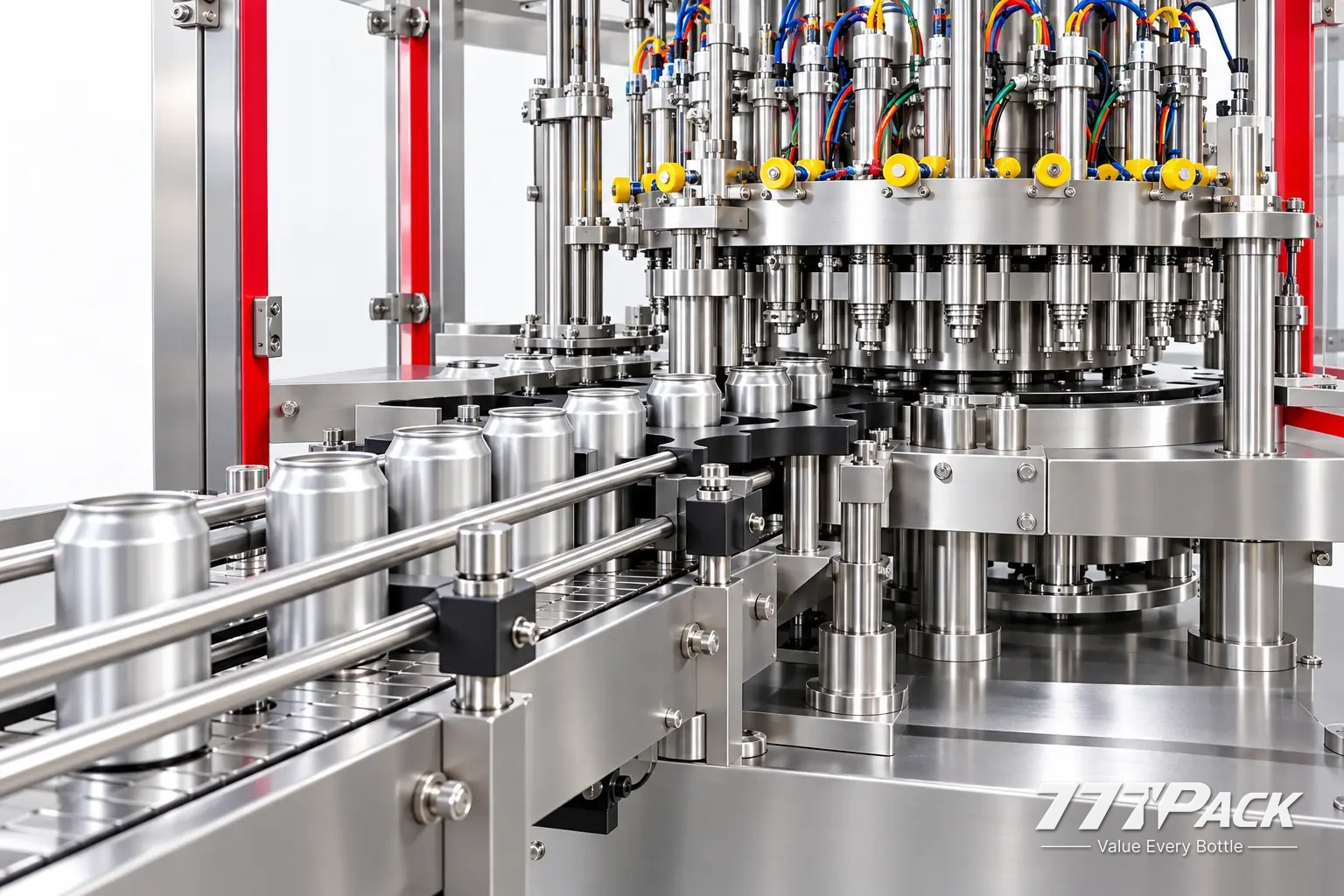

Aluminum beverage cans entering the TYLG filling machine by conveyor and starwheel
Key Component Brands
FILLING TECHNOLOGY
Filling Technology for Your Product
Product characteristics, container format, target output and process requirements determine the final configuration. We recommend the appropriate technology for each project.
Two-Piece Aluminum Can
Standard package for lightweight aluminum beverage cans with matched guides and double-seaming tooling.
Three-Piece Tinplate Can
Change parts and seaming setup for approved three-piece tinplate can dimensions.
High-CO₂ / Low-Temperature Package
Optimized product pressure, valve timing and venting for colder beverages or higher carbonation.
Core Specifications
| Nominal Output | 30–400 cans/min |
|---|---|
| Reference Container | Two-piece aluminum beverage can |
| Can Diameter | 39–160 mm |
| Can Height | 39–160 mm |
| Suitable Products | Carbonated soft drinks, sparkling water and beer |
| Filling Process | Counter-pressure / isobaric filling |
| Closure | Easy-open can end |
| Filling / Seaming Heads | 12 / 4 to 32 / 6 |
| Installed Power | 5.5–7.5 kW |
| Machine Weight | 3,100–5,500 kg |
| Machine Dimensions (L × W × H) | 2,700 × 1,400 × 1,900 to 3,800 × 1,900 × 1,900 mm |
Model Comparison
TYLG Can Filling and Seaming Machine Models
TYLG configurations for canned beer and carbonated drinks. Select the model against the approved beverage, carbonation level, can body, easy-open end and required output.
| Model | Rated Output | Weight / Dimensions | Can Size (Ø × H) | Installed Power | Filling / Seaming Heads |
|---|---|---|---|---|---|
| TYLG150 | 30–170 cans/min | 3,100 kg · 2700 × 1400 × 1900 mm | Ø52.5–99 × H39–160 mm | 5.5 kW | 12 / 4 |
| TYLG250 | 30–250 cans/min | 3,800 kg · 3050 × 1750 × 1900 mm | Ø39–160 × H39–160 mm | 5.5 kW | 18 / 4 |
| TYLG350 | Up to 400 cans/min | 5,500 kg · 3800 × 1900 × 1900 mm | Ø39–160 × H39–160 mm | 7.5 kW | 32 / 6 |
Note. Output follows the supplied reference table. The TYLG350 source value is presented as up to 400 cans/min. Final speed, tooling and utilities are confirmed with the actual beverage, can body and lid.
Working Principle
The Siemens PLC and HMI coordinate product pressure, filling, lid feeding, seaming and line-speed interlocks.
Engineering Highlights
Practical design details that affect operation, changeover, hygiene and maintenance.
Integrated Fill & Seam
Fill · SeamCounter-pressure filling, lid placement and double seaming operate as one coordinated system.
CO₂ Retention & Foam Control
Cold & Stable FillingPressure-balanced filling and controlled venting limit product breakout and carbonation loss.
Reliable Double Seaming
Two- & Three-Piece CansMatched chucks and rollers support consistent seams for approved can bodies and ends.
Scalable TYLG Series
30–400 cans/minThree standard configurations cover different output targets with one operating concept.
Line Integration
Line Integration
Equipment role and interfaces for this reference application.
After the required product preparation and empty-can rinsing, the TYLG machine fills beer or carbonated drinks under counter pressure, places can ends and completes double seaming. Sealed cans proceed to the agreed post-fill treatment, drying, coding, optional labeling and packing. Select the Beer or Carbonated Drinks example above; the final treatment and line scope follow the product specification.
- Can Infeed: Single-lane can conveyor from depalletizer and can rinsing system
- Can Discharge: Seamed-can conveyor to the agreed post-fill treatment, dryer and downstream packaging
- Product & CO₂ Supply: Stable chilled beer or carbonated beverage at the confirmed pressure, temperature and flow
- Can End Supply: Approved easy-open ends matched to the can body and seaming tooling
- Line Controls: Speed synchronization, safety interlocks and upstream/downstream signal exchange
Standard and Optional Configuration
- Integrated Rotary Fill-and-Seam System
Counter-pressure filling and automatic lid seaming are coordinated in one enclosed machine.
- Counter-Pressure Filling Valves
Pressure-balanced filling reduces foaming and carbonation loss.
- Automatic End Feeding & Placement
Sorts and positions approved easy-open ends before seaming.
- Double-Seaming System
Matched seaming chucks and rollers form a controlled hermetic seam.
- Siemens PLC + HMI
Central control of pressure, filling, lid supply, seaming, alarms and recipes.
- Safety Enclosure & Interlocks
Stainless guarding, emergency stops, no-can/no-fill protection and door interlocks.
- Additional Can & End Change Parts
Format parts and seaming tooling for extra approved can bodies or easy-open ends.
- Three-Piece Tinplate Can Package
Transfer and seaming setup for approved three-piece tinplate cans.
- High-CO₂ / Low-Temperature Package
Pressure-control and valve configuration for colder beverages or higher carbonation.
- CIP Interface & Cleaning Cups
Connections and accessories for automated cleaning of the filling circuit.
Utilities and Installation
Electrical Supply
Customized to the destination-country standard
Compressed Air
Clean, dry air; pressure and consumption confirmed by selected model
Product Supply
Chilled beer or carbonated beverage at the confirmed temperature, flow and pressure
CO₂ Supply
Food-grade CO₂ at the pressure and consumption confirmed for the recipe
Rinsing Water & Drainage
Hygienic water for the upstream can rinser and drainage for cleaning discharge
Installation Conditions
Level foundation with operating, maintenance and conveyor-transfer clearance
Before You Decide
Frequently Asked Questions
Answers to common questions about selection, integration and project planning.
Which drinks can this can filling and seaming machine handle?
It is designed for beer, carbonated soft drinks, sparkling water and energy drinks in approved metal cans. Beverage temperature, CO₂ volume, can body and lid are reviewed before the final configuration is confirmed.
Why is counter-pressure filling used for beer and carbonated drinks?
The can is pressurized before filling so the pressure remains close to the product tank pressure. This limits foaming and CO₂ loss while supporting a stable fill level.
Can one machine handle different can sizes?
Yes. The supplied series covers can diameters from 39 to 160 mm and heights from 39 to 160 mm, subject to the selected model. Change parts and seaming tooling are matched to approved can and end samples.
How is double-seam quality confirmed?
The can body, easy-open end, chuck and seaming rollers must be matched. Seam width, thickness, overlap and tightness are checked during setup and factory testing with the approved packaging materials.
Can the machine connect with an existing canning line?
Yes. Can infeed, product pressure and temperature, CO₂ supply, conveyors, post-fill treatment, dryer, operating speed and control signals are engineered after the existing line is reviewed.
Line Solutions
Compatible Production Lines
Explore related equipment, line solutions and delivered projects.
Project Services
Manufacturing & Line Integration
Core equipment manufacturing, auxiliary-machine coordination and complete-line integration are managed as one system to reduce interface risks before delivery.
FAT & Quality Inspection
Project checks before packing and delivery.
Installation & Commissioning
On-site setup, testing and operator training.
Local Support in Indonesia
Local coordination for service and spare parts.
