Automatic High-Speed Positioning Round Bottle Labeling Machine
Model:CY-060P
Positioned full-circumference labeling for OPP and self-adhesive label applications on small and medium round bottles. Star-wheel handling and servo label feeding support 4,000–6,000 BPH with ±1 mm accuracy.
Line integration
Position in the Production Line
The current stage is highlighted. This example shows how the equipment connects within the selected line.
Swipe or scroll to explore all stages →
Reference flow only. Final process and equipment scope depend on the product, container, output and project requirements. Each stage links to its equipment or equipment category.
Equipment Overview

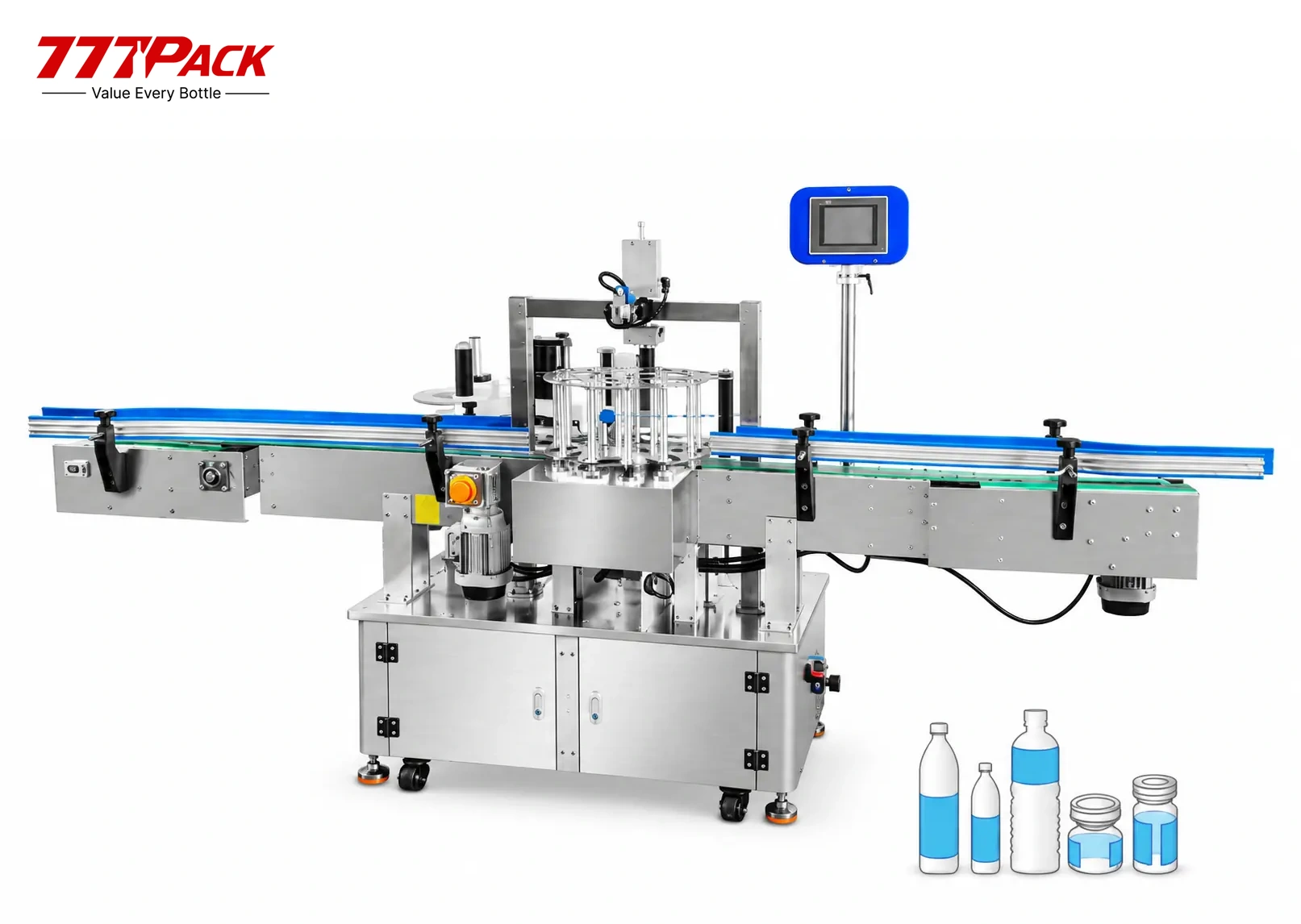

The CY-060P automatic high-speed positioning round bottle labeling machine supports OPP and self-adhesive label applications for accurate full-circumference labeling of small and medium cylindrical bottles. Rated output is 4,000–6,000 bottles per hour with labeling accuracy of ±1 mm; actual performance depends on the bottle and label specification.
A star-wheel turntable positions each bottle through the labeling area. The controlled bottle path supports stable label placement and helps reduce errors caused by uneven bottle profiles, without a conventional bottle-separating mechanism.
A high-power servo drive supports stable label feeding, while the touchscreen HMI provides online operating help. The standard maximum label width is 195 mm; larger label-width requirements need a project-specific raised configuration.
Machine Details

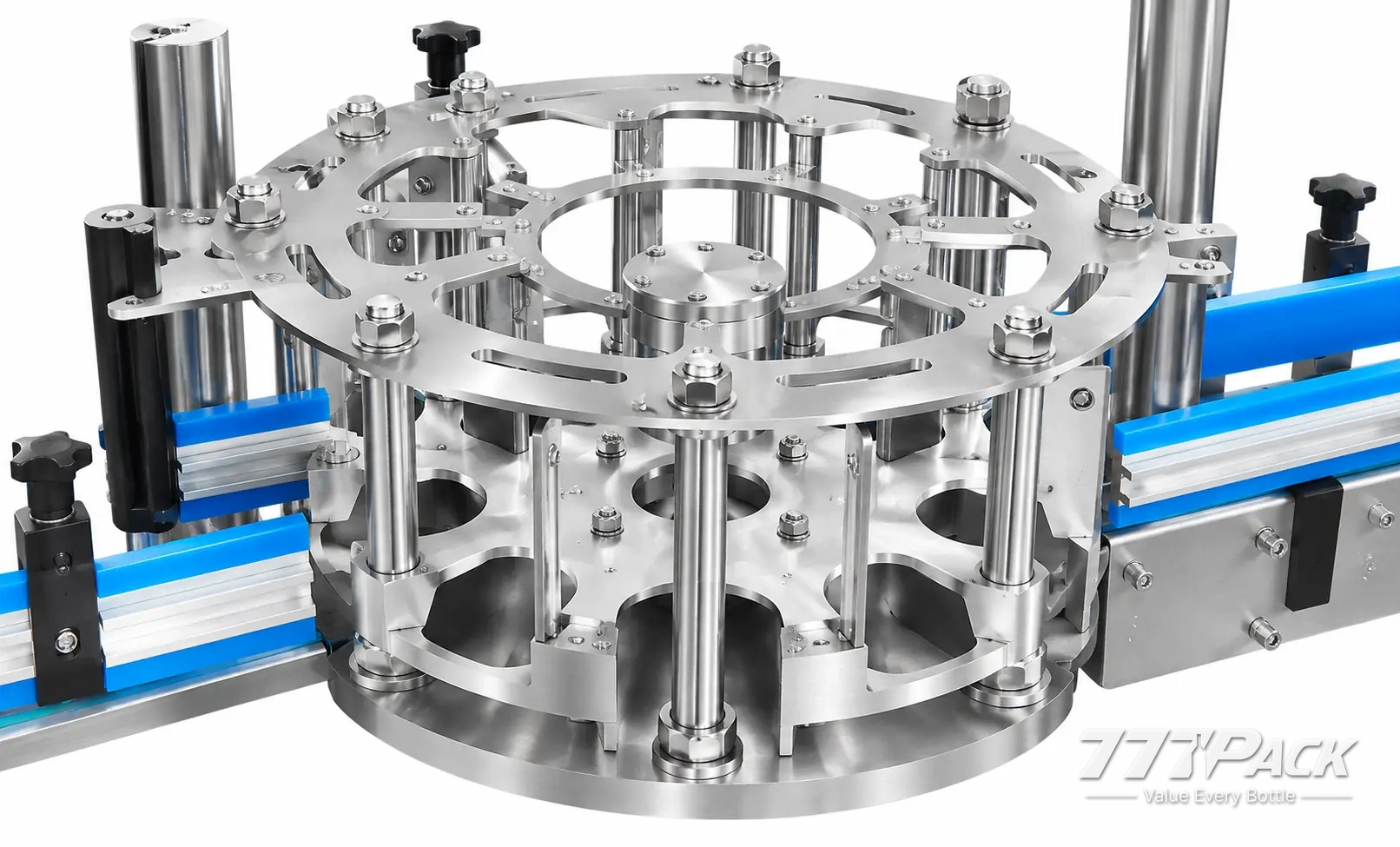

CY-060P star-wheel positioning mechanism for accurate round bottle labeling
Core Specifications
| Labeling types | OPP · Self-Adhesive |
|---|---|
| Rated labeling speed | 4,000–6,000 BPH |
| Labeling accuracy | ±1 mm |
| Maximum label width | 195 mm |
| Label roll inner diameter | 76.2 mm |
| Label roll outer diameter | 380 mm |
| Machine dimensions (L × W × H) | 3000 × 1350 × 1700 mm |
| Power supply | 220 V · 50 Hz |
| Installed power | 2 kW |
Model Comparison
CY-060P Technical Data
Key specifications for the automatic high-speed positioning round bottle labeling machine. Final configuration is confirmed against actual bottle and label samples.
| Model | Labeling Method | Rated Output | Container Range | Label Range / Material | Application |
|---|---|---|---|---|---|
| CY-060P | Positioned full-circumference labeling | 4,000–6,000 BPH | Small / medium round bottles | Max label width 195 mm | PET water and beverage bottles |
Note. Output depends on the actual bottle and label. Label width above 195 mm requires a customized raised design. Star-wheel format parts are confirmed against approved bottle samples.
Working Principle
Bottles enter on the conveyor and are guided into the star-wheel turntable. The star wheel positions each bottle through the labeling area so that the label is applied at the required circumferential position.
The servo-driven labeling unit feeds the label at the synchronized speed. After application, bottles leave the star wheel and transfer to the downstream conveyor with controlled spacing.
Engineering Highlights
Practical design details that affect operation, changeover, hygiene and maintenance.
Star-Wheel Bottle Positioning
Bottle-specific format partsEach bottle is carried through controlled star-wheel pockets to support repeatable label placement.
High-Speed Full-Circumference Application
4,000–6,000 BPHControlled positioning helps reduce placement errors caused by uneven round-bottle profiles.
Servo-Controlled Label Feeding
±1 mm accuracyA high-power servo drive supports stable label feeding and accurate positioning.
Line Integration
Line Integration
Equipment role and interfaces for this reference application.
In a PET water bottling line, the CY-060P applies positioned full-circumference labels after filling, bottle drying and coding, before secondary packaging. Confirm bottle and label samples to match the star-wheel format parts and required label position.
- Upstream interface: Receive filled bottles after drying and coding; ensure the label surface is dry and suitable for application.
- Bottle handling: Confirm bottle diameter, height, rigidity and profile; machine the star-wheel pockets against approved bottle samples.
- Downstream interface: Match the discharge conveyor to the secondary packaging equipment and maintain stable bottle spacing.
- Line coordination: Confirm conveyor height, transfer arrangement, speed signals and start/stop coordination during line engineering.
Standard and Optional Configuration
- Star-wheel positioning turntable
Controls the bottle path through the labeling area for positioned full-circumference application.
- High-power servo labeling drive
Supports stable synchronized label feeding and accurate positioning.
- Touchscreen HMI
Chinese/English interface with online operating help for setup and operation.
- Adjustable conveyor guides
Support stable bottle transport and format alignment through the machine.
- Extended label width
Customized raised design for label widths above the standard 195 mm limit.
- Bottle-specific star-wheel format parts
Star-wheel pockets and guide parts engineered against approved bottle samples.
Utilities and Installation
Electrical supply
220 V · 50 Hz; installed power 2 kW.
Installation space
Machine envelope: 3000 × 1350 × 1700 mm (L × W × H). Allow additional access and conveyor-transfer space.
Before You Decide
Frequently Asked Questions
Answers to common questions about selection, integration and project planning.
Which bottles can the CY-060P positioning labeling machine handle?
The CY-060P is designed for small and medium cylindrical bottles requiring positioned full-circumference labeling. Bottle diameter, height, rigidity and profile must be confirmed with actual samples so the star-wheel pockets and guides can be matched.
What are the labeling speed and accuracy?
The catalogue rating is 4,000–6,000 bottles per hour with labeling accuracy of ±1 mm. Stable performance depends on the bottle, label, surface condition, positioning requirement and conveyor matching.
Which label types, rolls and sizes are supported?
The machine supports OPP and self-adhesive label applications. Confirm the label material, format and bottle samples when specifying the labeling configuration. The standard maximum label width is 195 mm. The label roll inner diameter is 76.2 mm and the maximum outer diameter is 380 mm. Wider labels require a customized raised design.
Where does the CY-060P fit in a PET water bottling line?
It is installed after filling, bottle drying and coding, and before secondary packaging. The conveyor height, bottle spacing and line-control signals should be coordinated during line engineering.
