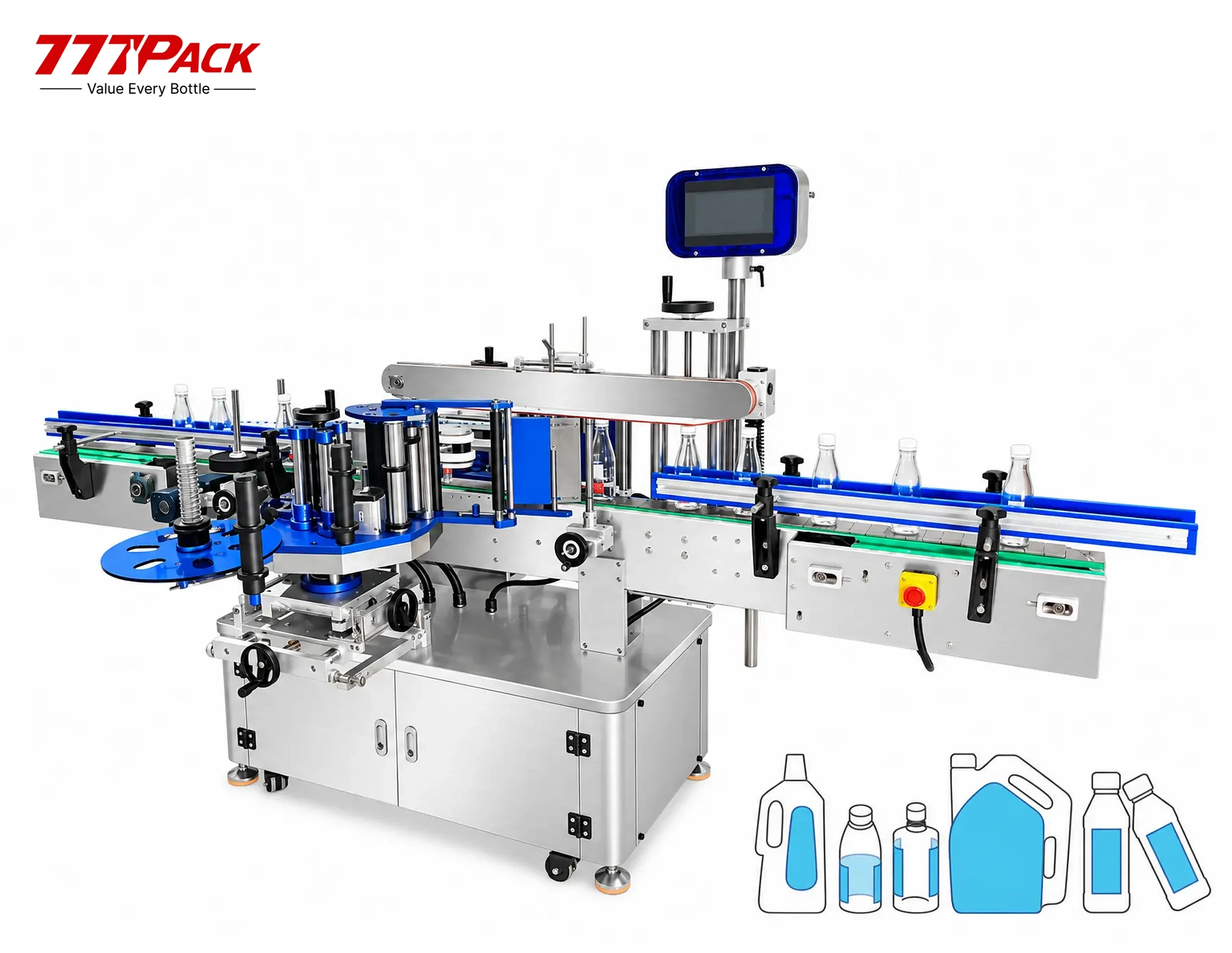

Automatic Linear Double-Sided Self-Adhesive Labeling Machine
Model:CY-020
Automatic linear single- or double-sided self-adhesive labeling for flat and square bottles. Up to 15,000 BPH, ±1 mm accuracy, servo-driven heads and optional round-bottle labeling.
Line integration
Position in the Production Line
The current stage is highlighted. This example shows how the equipment connects within the selected line.
- Parallel preparation01AWater TreatmentFilter · Purify · Disinfect01BBottle BlowingPreform to Bottle
- 02FillingRinse · Fill · Cap
- 03DryingRemove Surface Moisture
- 04CodingDate · Batch · Traceability
- 05LabelingSleeve · Hot Melt · Self-AdhesiveCURRENT
- 06PackingFilm · Carton · Tray
- 07PalletizingStack Finished Packs
Swipe or scroll to explore all stages →
Reference flow only. Final process and equipment scope depend on the product, container, output and project requirements. Each stage links to its equipment or equipment category.
Equipment Overview
The CY-020 automatic linear double-sided self-adhesive labeling machine applies front and back labels to flat and square bottles. It also supports single-sided labeling. The rated output is up to 15,000 bottles per hour, with labeling accuracy of ±1 mm; actual performance depends on the bottle and label specification.
Servo-driven labeling heads provide closed-loop control. Adjustable dual pressure rollers guide label feeding, while eight-direction head adjustment helps align labels during bottle-format changes. A Chinese/English touchscreen interface and synchronized top-belt and conveyor control support operation.
Optional air-driven positioning or roller labeling attachments extend the machine to round bottles. Bottle samples, label rolls and the required production speed should be checked together before confirming the final configuration.
Machine Details

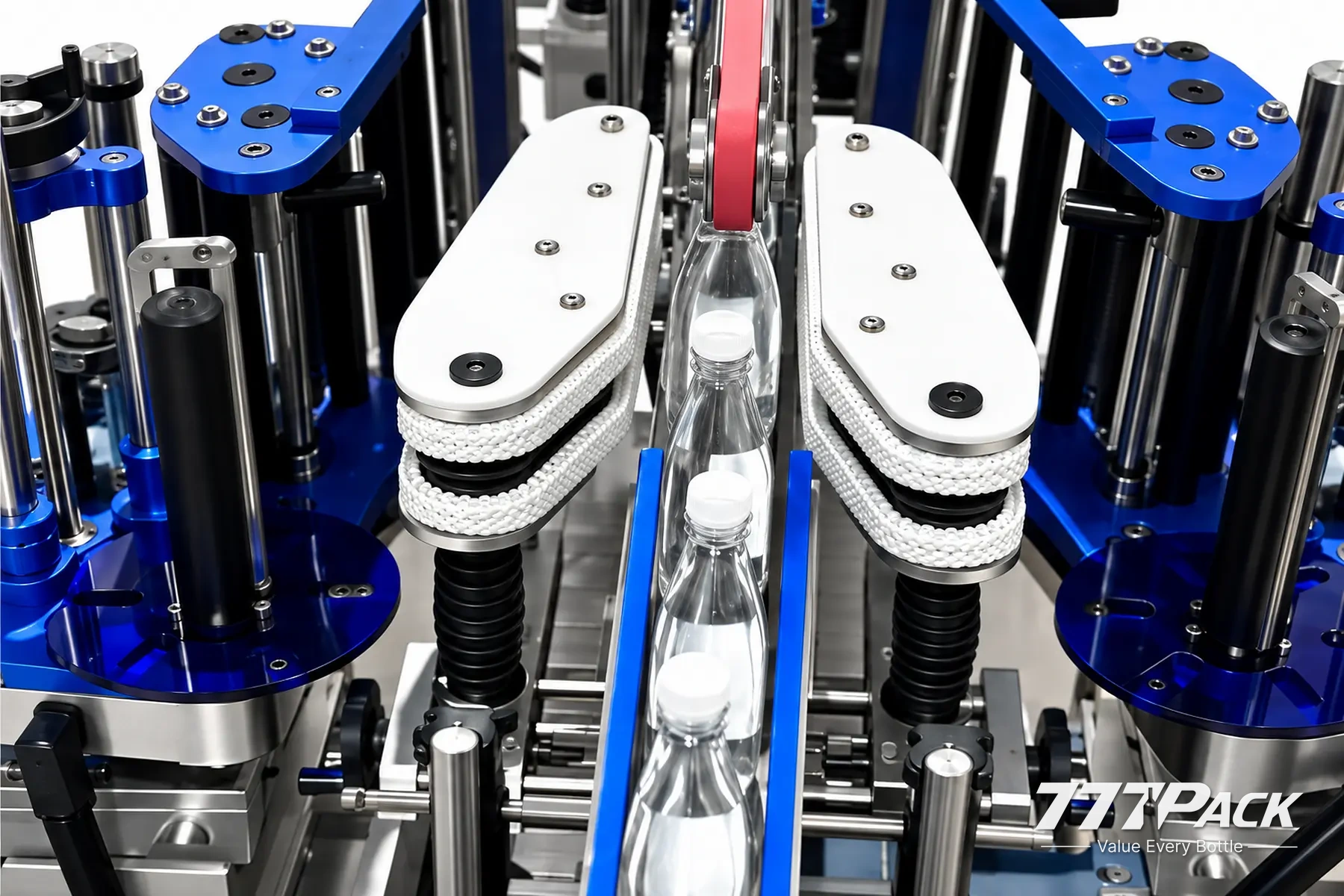

Dual pressure roller labeling heads on the CY-020 double-sided self-adhesive labeling machine

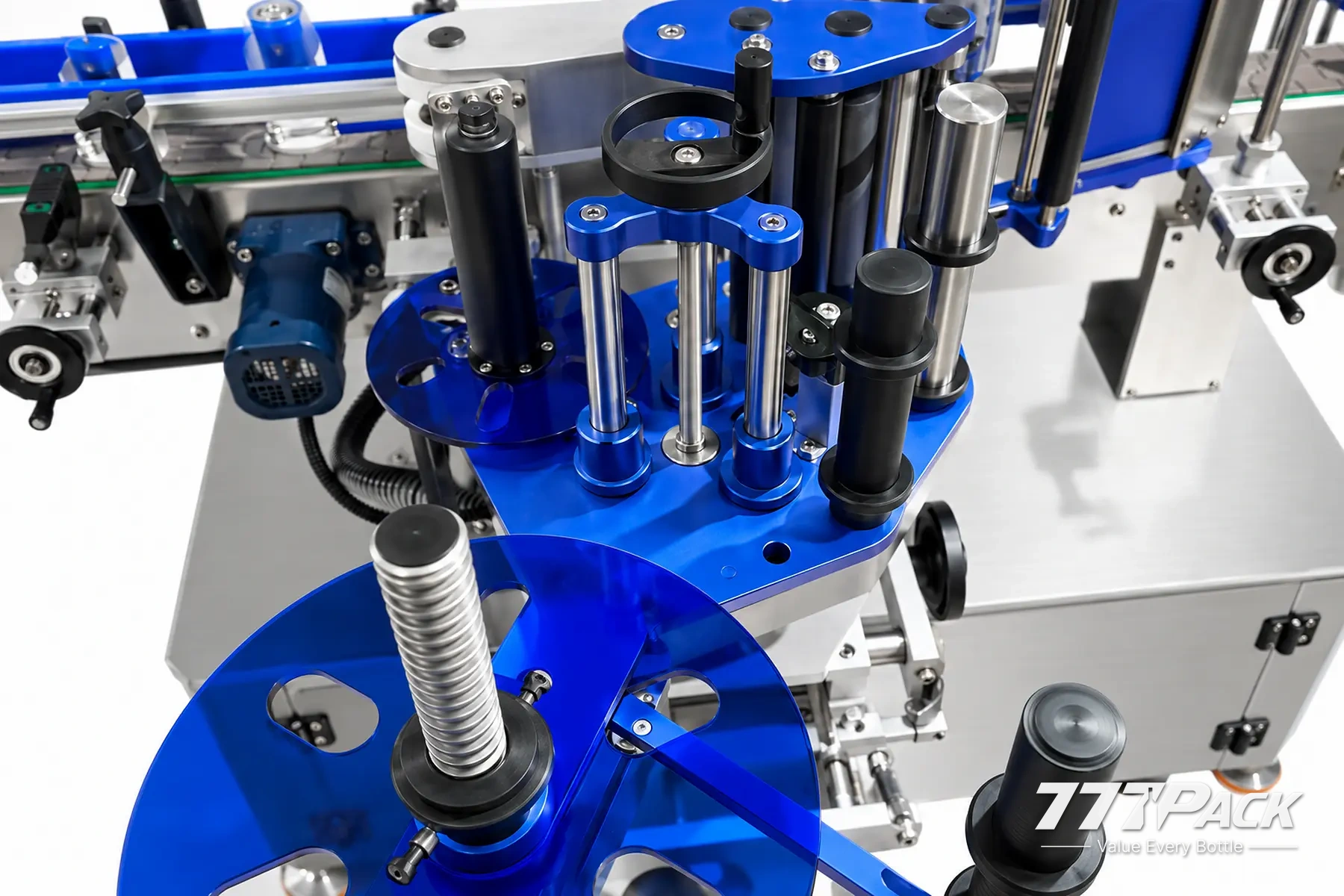

Servo-driven labeling station and bottle conveyor on the CY-020 self-adhesive labeling machine
Core Specifications
| Rated labeling speed | Up to 15,000 BPH |
|---|---|
| Labeling accuracy | ±1 mm |
| Maximum label width | 195 mm |
| Minimum bottle thickness | 30 mm |
| Maximum bottle height | 500 mm |
| Label roll inner diameter | 76.2 mm |
| Label roll outer diameter | 380 mm |
| Machine dimensions (L × W × H) | 3000 × 1700 × 1800 mm |
| Machine weight | 380 kg |
| Power supply | 220 V · 50 Hz |
| Installed power | 3 kW |
Model Comparison
CY-020 Technical Data
Key specifications for the automatic double-sided self-adhesive labeling machine. Final configuration is confirmed against bottle and label samples.
| Model | Rated Output | Labeling Accuracy | Max Label Width | Power Supply | Machine Dimensions |
|---|---|---|---|---|---|
| CY-020 | Up to 15,000 BPH | ±1 mm | 195 mm | 220 V · 50 Hz · 3 kW | 3000 × 1700 × 1800 mm |
Note. Output depends on the actual bottle and label. Label width above 195 mm requires a customized design. Round-bottle labeling requires the corresponding optional attachment.
Working Principle
Bottles enter on the conveyor and are guided into position for labeling. The synchronized top belt stabilizes the bottles as the servo-driven labeling heads feed and apply the front and back labels.
Adjustable dual pressure rollers control label feeding and tension. The labeling heads can be adjusted in eight directions to align the label position for each bottle format. Optional air-driven or roller attachments support round-bottle labeling.
Engineering Highlights
Practical design details that affect operation, changeover, hygiene and maintenance.
Servo-Controlled Label Feeding
Catalogue labeling accuracy: ±1 mm.Closed-loop servo drives support precise label positioning.
Adjustable Dual Pressure Rollers
Dual pressure roller structure.Adjustable feeding pressure and separate-clutch tension balancing guide the label web.
Flexible Bottle-Format Setup
Flat and square bottles as standard; round bottles optional.Eight-direction labeling head adjustment supports format alignment; optional attachments add round-bottle labeling.
Line Integration
Line Integration
Equipment role and interfaces for this reference application.
In a PET water bottling line, the CY-020 applies self-adhesive labels after filling, bottle drying and coding, before secondary packaging. Select the labeling method and bottle handling attachments to match the actual PET bottle shape and label design.
- Upstream interface: Receive filled bottles after drying and coding; check that the label area is suitable for self-adhesive application.
- Bottle handling: Confirm flat or square bottle samples, bottle stability and label position; round bottles require an optional attachment.
- Downstream interface: Match the discharge conveyor to the secondary packaging equipment and required bottle spacing.
- Line coordination: Confirm conveyor height, transfer arrangement, bottle spacing and start/stop coordination during line engineering.
Standard and Optional Configuration
- Servo-driven labeling heads
Closed-loop drive for accurate label feeding.
- Dual pressure rollers
Adjustable feeding pressure and balanced label tension.
- Eight-direction head adjustment
Align labeling heads to suit different bottle formats.
- Chinese/English HMI
Touchscreen operation with on-screen help.
- Synchronized bottle transport
Top belt and conveyor synchronization through mechanical or servo drive.
- Round-bottle labeling attachment
Optional air-driven positioning or roller labeling mechanism, selected against actual bottle samples.
- Extended label width
Customized design for label widths above the standard 195 mm limit.
Utilities and Installation
Electrical supply
220 V · 50 Hz; installed power 3 kW.
Installation space
Machine envelope: 3000 × 1700 × 1800 mm (L × W × H). Allow additional access and conveyor transfer space.
Compressed air for optional attachment
Confirm pressure and consumption if an air-driven round-bottle attachment is selected.
Before You Decide
Frequently Asked Questions
Answers to common questions about selection, integration and project planning.
Which bottles can the CY-020 self-adhesive labeling machine handle?
The CY-020 is designed for single- or double-sided labeling of flat and square bottles. The catalogue specifies bottle thickness of at least 30 mm and bottle height up to 500 mm. Round-bottle labeling is available with an optional air-driven or roller attachment. Confirm the final setup using actual bottle samples.
What are the labeling speed and accuracy?
The catalogue specifies up to 15,000 bottles per hour and labeling accuracy of ±1 mm. Actual output depends on the bottle shape, label specification, bottle spacing and line matching. Verify the required speed with the intended bottle and label samples.
What label rolls and label sizes are supported?
The standard maximum label width is 195 mm. The label roll core diameter is 76.2 mm, and the specified outer diameter is 380 mm. Wider labels require a customized design. Label length and material should be confirmed during sample review.
Where does the CY-020 fit in a PET water bottling line?
It is placed after filling, bottle drying and coding, and before secondary packaging. The PET Water Line Integration highlights the Labeling stage. Confirm the bottle surface condition and conveyor transfer arrangement for reliable self-adhesive labeling.
