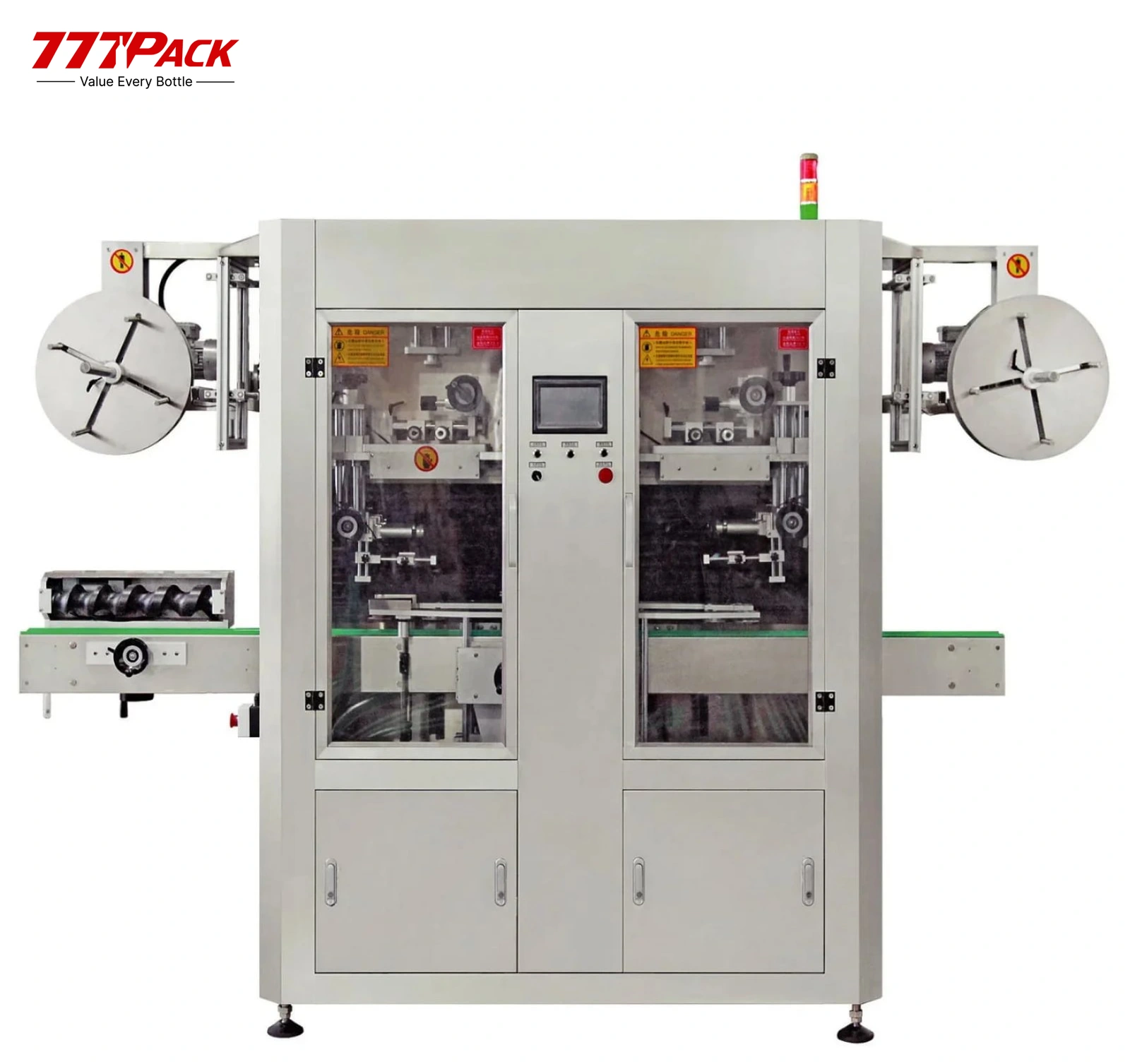

Double-head configuration shown. The selected model defines the sleeve positions and head layout.
Double-Head Shrink Sleeve Labeling Machine
Models:SLM-150D · SLM-250D · SLM-400BD · SLM-500BD
Two model groups for different sleeve positions: 150D / 250D for body + neck sleeves, and 400BD / 500BD for dual-head bottle-body sleeving.
Rated maximum output is model-dependent and varies with the bottle and sleeve. Bottle material and geometry are confirmed with samples.
Line integration
Position in the Production Line
Labeling is the current stage in this PET water-line example. Sleeve application and steam shrinking form one labeling system.
Swipe or scroll to explore all stages →
Reference flow only. The PET bottle shown is an example application, not a universal bottle-material specification. Confirm bottle samples, sleeve film, shrinking conditions and the final equipment sequence for the project.
Equipment Overview
Choose the head arrangement by the sleeve positions you need. SLM-150D and SLM-250D apply body and neck / mouth-area sleeves. SLM-400BD and SLM-500BD are dual-head bottle-body configurations with higher rated output.
Model selection starts with the actual bottle and sleeve, rather than speed alone. Review the film, sleeve dimensions, bottle stability, available conveyor time and steam package together.
Explore the sleeve labeling category or compare the single-head shrink sleeve labeling machine for a different head arrangement.
Choose the Sleeve Configuration
Match the sleeve position first, then compare model output and format limits.
Body + Neck Sleeves
SLM-150D: 9,000 BPH
SLM-250D: 15,000 BPH
Applies separate sleeves to the body and neck / mouth area in the specified configuration. Review both sleeve drawings and the bottle neck geometry.
Dual-Head Body Sleeves
SLM-400BD: 24,000 BPH
SLM-500BD: 30,000 BPH
Two-head configuration for bottle-body sleeving. These models are selected for body sleeves; body-and-neck application is a separate D-series configuration.
Confirm the operating mode and head arrangement for your application.
Model Comparison
Available Models & Technical Comparison
Compare each model as its own configuration; format ranges and electrical arrangements differ.
| Parameter | SLM-150D | SLM-250D | SLM-400BD | SLM-500BD |
|---|---|---|---|---|
| Configuration | Body + neck sleeves | Body + neck sleeves | Dual-head body sleeves | Dual-head body sleeves |
| Heads | 2 | 2 | 2 | 2 |
| Rated maximum output | 9,000 BPH | 15,000 BPH | 24,000 BPH 150 mm sleeve reference | 30,000 BPH |
| Bottle-body diameter | 28–125 mm | 28–125 mm | 35–120 mm | 28–125 mm |
| Sleeve length | 30–250 mm | 30–250 mm | 10–300 mm | 40–250 mm |
| Film thickness | 0.03–0.13 mm | 0.03–0.13 mm | 0.03–0.1 mm | 0.03–0.13 mm |
| Sleeve film | PVC · PET · OPS | PVC · PET · OPS | PVC · PET · OPS | PVC · PET · OPS |
| Host input power | 5 kW | 5 kW | 5 kW | 6 kW |
| Host dimensions, L × W × H | 3,000 × 1,200 × 2,070 mm | 3,000 × 1,200 × 2,070 mm | To be confirmed for selected model | 3,000 × 1,200 × 2,070 mm |
| Host electrical supply | To be confirmed for selected model | To be confirmed for selected model | 220 V AC, single-phase, 50/60 Hz | To be confirmed for selected model |
| PLC / HMI | Siemens / Siemens | Siemens / Siemens | INOVANCE / INOVANCE | INOVANCE / INOVANCE |
| Servo configuration | INOVANCE; 400 W specified | INOVANCE: 750 W feed + 400 W cutting | INOVANCE; rating to be confirmed for selected model | INOVANCE: 750 W feed + 400 W cutting |
| Frequency converters | Siemens | Siemens | INOVANCE | INOVANCE |
| Sensors | Panasonic | Panasonic | Panasonic | Panasonic |
Rated figures are maximum model references, not a promise for every sleeve and bottle. The SLM-400BD reference uses a 150 mm sleeve. Body-diameter and sleeve ranges do not replace separate approval of the neck sleeve for D-series systems. Host input power is separate from the steam-generator and tunnel loads. Dimensions and supply are confirmed in the selected equipment specification.
Core Specifications
Bottle and sleeve samples define the final application. PET, PVC and OPS above identify sleeve films, not bottle materials.
| Head arrangement | Body + neck D-series, or dual-head body BD-series |
|---|---|
| Model range | SLM-150D · SLM-250D · SLM-400BD · SLM-500BD |
| Rated model output | 9,000–30,000 BPH; see the model-specific reference conditions |
| Sleeve materials | PVC, PET and OPS shrink films |
| Bottle material | Confirmed against the selected model and actual bottle samples |
| Bottle geometry | Diameter, body shape, neck finish and stability reviewed for the application |
| Sleeve dimensions | Model-specific sleeve length and film-thickness limits |
| Application mechanism | Registered sleeve feeding, cutting and application |
| Control system | PLC, touchscreen HMI, servo drive and frequency converters; brands depend on model |
| Shrinking | Downstream steam shrink tunnel |
| Steam arrangement | Separate steam-generator load and model-specific tunnel duty |
| Line interfaces | Conveyor transfer, bottle spacing, line speed and downstream handling confirmed for the project |
Working Principle
- 01
Container Infeed
Guide and space bottles through the applicator in the selected conveyor arrangement.
- 02
Sleeve Feeding
Feed the sleeve film and maintain the required positioning and tension for the selected format.
- 03
Registered Sleeve Cutting
Cut the sleeve to the selected length in coordination with registration and bottle handling.
- 04
Sleeve Application
Apply body + neck sleeves with 150D/250D, or use the selected dual-head body configuration for 400BD/500BD.
- 05
Steam Shrinking
Pass the sleeved bottle through the matched tunnel with its steam-nozzle settings adjusted for the film and bottle.
- 06
Downstream Transfer
Check the finished sleeve and transfer bottles to the agreed downstream equipment.
This is a functional overview. Exact infeed, head layout, shrinking settings and inspection points follow the selected model and approved format.
Key Component Brands
Use the model table to distinguish the control and servo configurations.
Engineering Selection
Match Film and Bottle
Confirm sleeve drawings, film specification, bottle samples and the target sleeve position before selecting format parts.
Compare the Model Conditions
Review the rated output with sleeve length, bottle geometry and the available line time. Use the model-specific reference conditions.
Adjust the Steam Sections
The tunnel uses three individually adjustable steam-nozzle sections for height, position and output. Set the process for the approved bottle and film.
Plan Transfers and Access
Review bottle spacing, conveyor handovers, steam connections, condensate collection and access for format changes and maintenance.

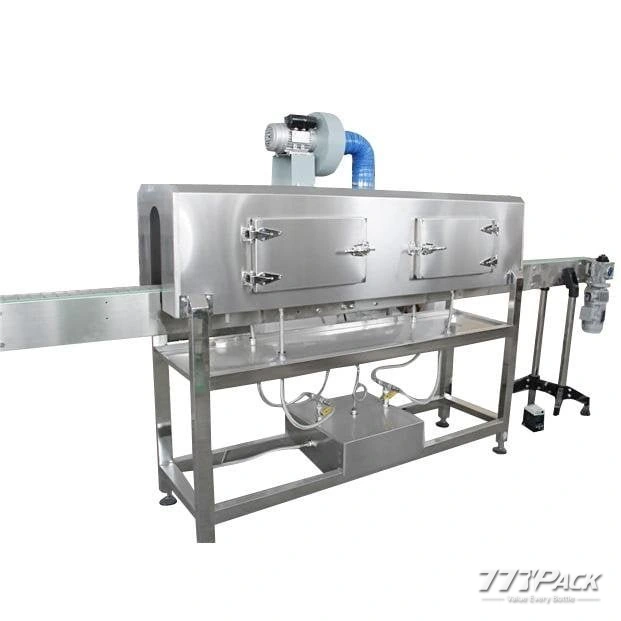

Steam Tunnel & Utilities
Tunnel duty and generator capacity vary with the selected model.
Match the applicator with its steam shrink tunnel and electric steam generator. Plan these units together while keeping their connected loads and steam duties separate.
The stainless-steel tunnel includes insulation and condensate collection. Three nozzle sections allow the steam position, height and output to be adjusted for the selected sleeve and bottle.
Steam Package by Model
| Parameter | SLM-150D | SLM-250D | SLM-400BD | SLM-500BD |
|---|---|---|---|---|
| Tunnel dimensions, L × W × H | 2,300 × 600 × 1,600 mm | To be confirmed for selected model | To be confirmed for selected model | 3,000 × 600 × 1,600 mm |
| Tunnel working steam pressure | 0.1 MPa | 0.1 MPa | 0.2 MPa | 0.1 MPa |
| Tunnel steam consumption | 10–20 kg/h | 10–20 kg/h | To be confirmed for selected model | 10–20 kg/h |
| Tunnel blower load | 250 W | 250 W | 200 W | 250 W |
| Generator input power | 24 kW | 24 kW | 36 kW | 48 kW |
| Generator steam output | 24 kg/h | 24 kg/h | 50 kg/h | 68.8 kg/h |
| Generator steam pressure | 0.25–0.4 MPa | 0.25–0.4 MPa | 0.25–0.6 MPa | 0.25–0.4 MPa |
These are separate unit ratings. Confirm the final electrical supply for each unit, steam connections, operating settings, drainage and installation arrangement. Do not use the host input power as the complete system load.
Separate the Loads
Review the applicator, tunnel blower, conveyor and steam-generator supply with the final electrical specification.
Confirm the Connections
Review generator feedwater, steam delivery, condensate collection and the drainage route for the installation.
Reserve Working Access
Approve the equipment footprints, conveyor elevations and space for operation, cleaning and format changes.
Define the Package
Confirm the included applicator, shrink tunnel, steam generator, conveyor sections and interface responsibilities in the proposed configuration.
Bottle & Sleeve Compatibility
Specify the bottle material, shape, body diameter, neck finish, height and filled condition. The actual container must be assessed with its sleeve and the intended shrinking process.
PVC, PET and OPS are supported sleeve-film materials in the listed configurations. They do not define bottle-material compatibility. Review shrink behavior, artwork registration, sleeve length and film thickness for each format.
For 150D / 250D, provide separate body and neck / mouth-area sleeve drawings. For 400BD / 500BD, define the bottle-body sleeve. Confirm the head arrangement and format parts for the selected application.
Approve the finished sleeve appearance and handling using representative bottles and production sleeve rolls before acceptance.
Line Integration
The reference water line places sleeve labeling after coding and before secondary packaging. Confirm the actual coding and sleeve sequence for the artwork and package.
Review the infeed and outfeed with the conveyor system, including bottle spacing, transfer height, line speed and machine start/stop coordination. Where the upstream process leaves water on the bottle, review bottle air drying for the required surface condition.
Coordinate the labeler with the filling equipment and downstream packing. Our pre-sale engineering review can define the handovers and selected equipment scope.
Testing & Acceptance
Approve the Formats
Use representative bottle samples, body / neck sleeve drawings and production film rolls for the selected model.
Check Output and Transfers
Run the agreed bottle and sleeve at the required output while checking spacing, application, shrinking and downstream transfer.
Agree the Inspection Points
Review sleeve position, cut length, artwork registration and shrink finish against the approved sample.
Record the Settings
Confirm format settings, operating guidance, cleaning access and any change parts required for the approved range.
Frequently Asked Questions
Do all double-head models apply body and neck sleeves?
No. SLM-150D / SLM-250D are listed for body plus neck / mouth-area sleeves. SLM-400BD / SLM-500BD are dual-head body-sleeving configurations. Select the arrangement by the sleeve position.
How do 150D and 250D compare?
Both are body-and-neck configurations. Their published rated outputs are 9,000 BPH and 15,000 BPH respectively. Review the format and electrical configuration in the comparison table.
How do 400BD and 500BD compare?
Both are dual-head bottle-body configurations. SLM-400BD is rated at 24,000 BPH with a 150 mm sleeve reference; SLM-500BD is rated at 30,000 BPH. Their format limits, host power and steam packages differ.
How does sleeve format affect output?
Rated output is a model reference. Bottle geometry, sleeve length, film and the approved head arrangement affect the actual line performance. Trial the required format against the agreed output.
Which bottle materials and formats are compatible?
Send representative bottles or drawings, including material, body diameter, neck geometry and height. PET, PVC and OPS in the data are sleeve-film materials; bottle compatibility is confirmed by the selected application.
Do all models have the same controls?
The 150D / 250D configurations use Siemens PLC, HMI and converters with INOVANCE servos. The 400BD / 500BD configurations specify INOVANCE controls and servos. Panasonic sensors are listed throughout.
How is the steam package selected?
Review the tunnel and generator for the chosen sleeve and output. Confirm the final tunnel dimensions, separate connected loads, steam conditions, feedwater, drainage and installation layout.
Which sleeve drawings should I provide?
For 150D / 250D, provide separate body and neck / mouth-area sleeve drawings. For 400BD / 500BD, provide the body-sleeve drawing. Include artwork, sleeve length and film thickness for the application review.
What should be checked during acceptance?
Approve bottle and sleeve samples, required output, head arrangement, sleeve position, cut length, shrink finish and conveyor handovers. Record the accepted format settings.
What if I only need one body sleeve at a lower rated output?
Compare the single-head shrink sleeve labeling machine with SLM-150B, SLM-250B and SLM-350B. Use the actual format and required output to choose the configuration.
Project Services
Manufacturing & Line Integration
Core equipment manufacturing, auxiliary-machine coordination and complete-line integration are managed as one system to reduce interface risks before delivery.
FAT & Quality Inspection
Project checks before packing and delivery.
Installation & Commissioning
On-site setup, testing and operator training.
Local Support in Indonesia
Local coordination for service and spare parts.
Match the Sleeve System to Your Bottle
Send bottle samples or drawings, sleeve positions, film details, required output and the factory layout.
